Oil Tank

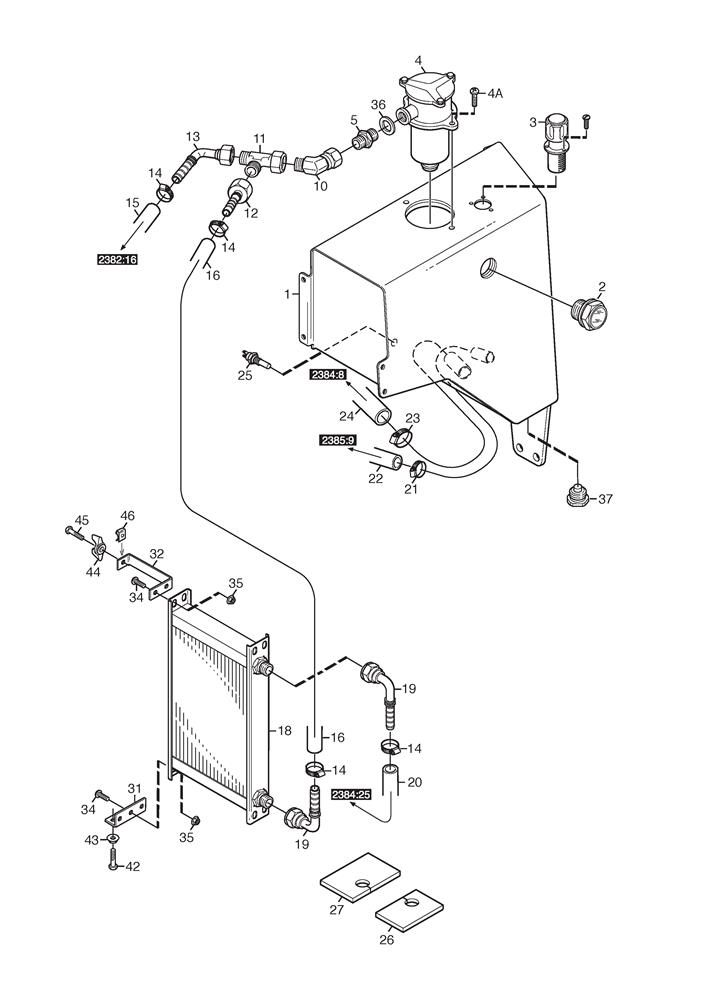

Oil Tank assembly details for Stiga Titan 32 H (13-7440-22) 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	1134-7379-02	SIGHT GLASS 1"	£52.58	Add to
003	1134-7213-01	TANK VENTILATION	£94.13	Add to
004	084-297-01	OIL FILTER CASING ASSEMBLY	£170.61	Add to
004	1139-2086-01	OIL FILTER	£103.85	Add to
004	1139-2087-01	SPRING FOR OIL FILTER	£50.70	Add to
004	112760515/0	HEXAGONAL SCREW TC M8 x 20	£0.79	Add to
014	9578-0031-01	HOSE CLAMP	£5.58	Add to
018	1134-6886-02	OIL COOLER	£921.23	Add to
021	9578-0031-01	HOSE CLAMP	£5.58	Add to
023	9578-0032-01	TUBE CLAMP	£7.64	Add to
024	1134-7152-01	HYDRAULIC HOSE 1"	£28.90	Add to
025	084-459-02	TEMPERATURE SENSOR	£170.47	Add to
034	9893-0616-16	SCREW M6 x 16	£2.47	Add to
035	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
037	1135-2936-01	MAGNET PLUG	£40.39	Add to
042	112791500/0	SCREW TE M6x25 UNI 5739 ACC.8.8	£2.06	Add to
043	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
044	1134-4481-02	WING NUT	£6.14	Add to
045	9997-0616-16	SCREW M6S M6 x 16	£4.01	Add to
046	1134-4176-01	CLIP	£5.19	Add to
