Wheel Engine-Front

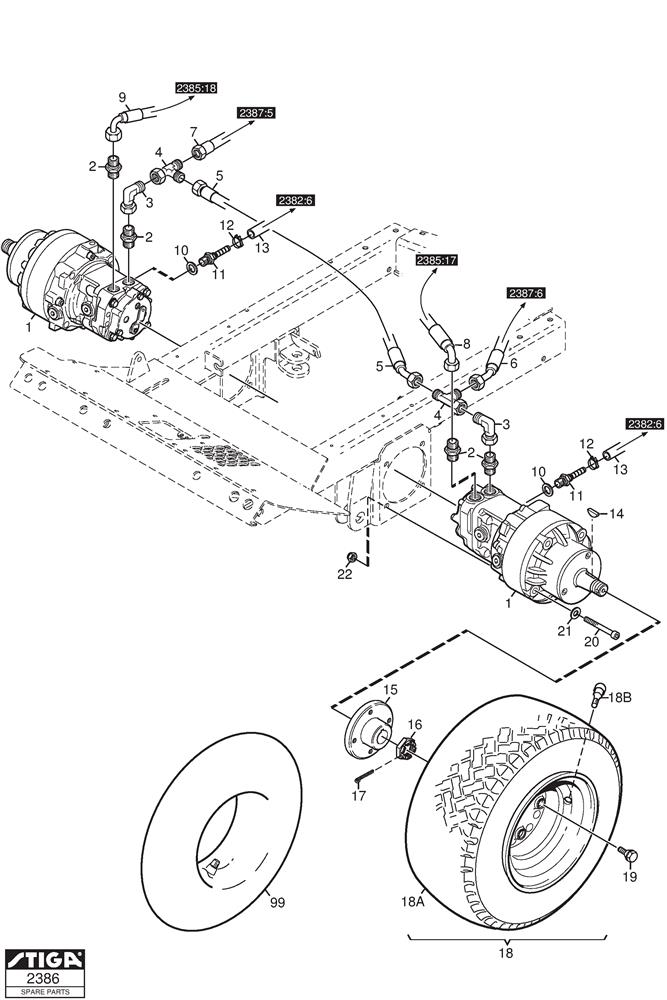

Wheel Engine-Front assembly details for Stiga Titan 26H (13-7434-22) 2010 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1135-2825-02	WHEEL MOTOR	£3,897.58	Add to
009	1134-7133-01	HYDRAULIC TUBE	£165.70	Add to
010	1134-4948-02	SEAL WASHER 3/8"	£2.06	Add to
012	9578-0023-04	HOSE CLAMP	£5.32	Add to
014	1134-6996-01	WOODRUFF KEY	£7.78	Add to
015	1134-6971-01	WHEEL HUB	£124.29	Add to
016	9781-2431-32	HEX.CASTLE NUT M24 X 2	£9.54	Add to
017	9599-0101-02	COTTER PIN 5 x 45	£1.79	Add to
018	1134-7308-02	WHEEL ASSEMBLY 20"	£346.76	Add to
018	9545-0127-01	TYRE 20 x 10-10	£170.61	Add to
018	125950000/0	PNEUMATIC VALVE	£5.73	Add to
019	1134-7041-01	WHEEL SCREW	£4.91	Add to
020	9939-1213-02	SCREW	£3.69	Add to
021	122671652/0	WASHER 12.3 x 20 x 2	£2.74	Add to
022	9747-1231-02	NUT	£2.06	Add to
099	9545-0211-01	INNER TUBE (FOR 20"" WHEELS)	£37.08	Add to
