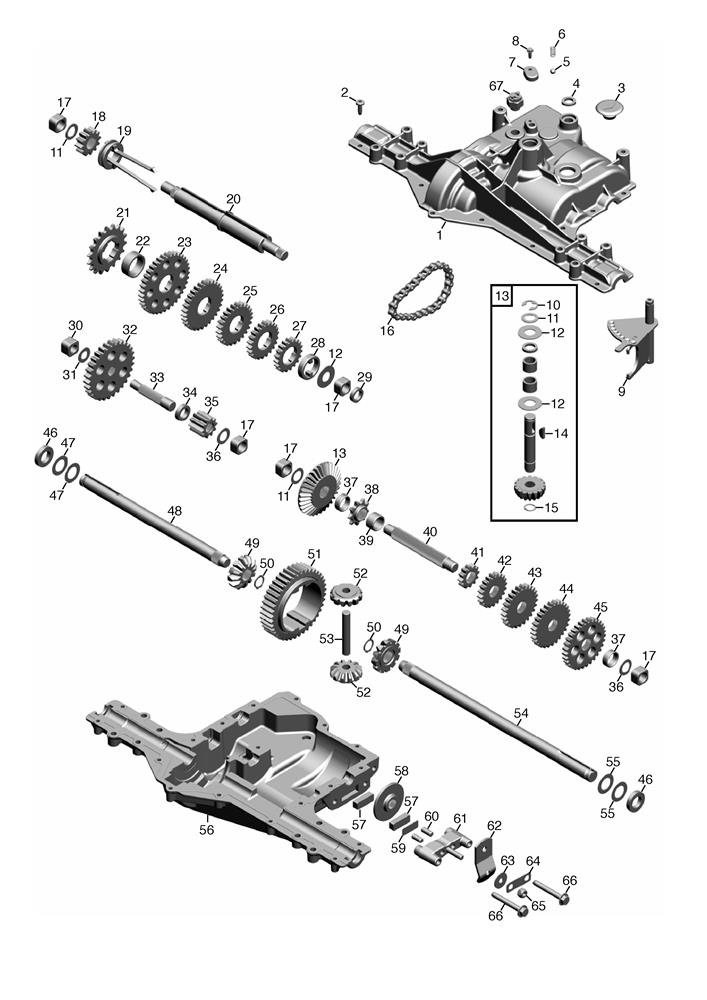

Transmission assembly details for Stiga Villa 12 (13-2725-13) 2009 model
Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref | No | Description | Price | |
|---|
| 000 | 1134-6349-01 | TRANSAXLE (DANA 6800-8) | £1,409.14 | Add to |
| 002 | F000-1919-00 | SCREW,TAP | £5.45 | Add to |
| 003 | F004-1356-00 | RUBBER PLUG | £2.47 | Add to |
| 004 | F000-7089-00 | SEAL RING (OBSOLETE) | N/A | |
| 007 | F000-7101-00 | DETENT COVER (OBSOLETE) | N/A | |
| 008 | F084-0052-00 | SCREW | £5.92 | Add to |
| 009 | F000-6670-00 | SHIFTER (OBSOLETE) | N/A | |
| 010 | F000-1106-00 | CIRCLIP (OBSOLETE) | N/A | |
| 011 | F000-4689-00 | ASSY,KIT,SHIM,625 SHAFT (OBSOLETE) | N/A | |
| 012 | F000-3876-00 | WASHER | £9.14 | Add to |
| 013 | F000-6753-00 | INPUT SHAFT ASSY (OBSOLETE) | N/A | |
| 014 | F000-1746-00 | WOODRUFF KEY (OBSOLETE) | N/A | |
| 015 | F000-3956-00 | RETAINING RING (OBSOLETE) | N/A | |
| 016 | F000-3625-00 | CHAIN,24 PITCHES | £101.13 | Add to |
| 017 | F000-7091-00 | BUSHING (OBSOLETE) | N/A | |
| 018 | F000-7080-00 | SPUR GEAR (OBSOLETE) | N/A | |
| 019 | F000-6692-00 | SHIFT COLLAR | £183.07 | Add to |
| 020 | F000-7086-00 | INTERMEDIATE SHAFT(OBSOLETE) | N/A | |
| 021 | F000-3830-00 | SPROCKET,18T | £68.94 | Add to |
| 022 | F000-7094-00 | SPACER | £8.84 | Add to |
| 023 | F000-5365-00 | SPUR GEAR 37T (OBSOLETE) | N/A | |
| 024 | F000-3867-00 | GEAR,SPUR,30T | £159.45 | Add to |
| 025 | F000-3783-00 | GEAR,SPUR,25T | £109.10 | Add to |
| 026 | F000-3869-00 | GEAR SPUR 22T (OBSOLETE) | N/A | |
| 027 | F000-5202-00 | GEAR,SPUR, 19T | £88.77 | Add to |
| 028 | F000-5027-00 | SPACER | £20.31 | Add to |
| 029 | F000-7115-00 | OIL SEAL (OBSOLETE) | N/A | |
| 030 | F000-7092-00 | BUSHING | £28.82 | Add to |
| 031 | F000-3890-00 | PLAIN WASHER | £2.30 | Add to |
| 032 | F000-7079-00 | SPUR GEAR (OBSOLETE) | N/A | |
| 033 | F000-7083-00 | IDLER SHAFT (OBSOLETE) | N/A | |
| 034 | F000-3410-00 | SPACER (OBSOLETE) | N/A | |
| 035 | F000-5180-00 | SPUR GEAR | £24.74 | Add to |
| 036 | F000-1425-00 | WASHER (OBSOLETE) | N/A | |
| 037 | F000-3714-00 | SPACER | £12.21 | Add to |
| 038 | F000-3645-00 | SPROCKET,9T (OBSOLETE) | N/A | |
| 039 | F000-7162-00 | SPACER | £4.59 | Add to |
| 040 | F000-7084-00 | DRIVE SHAFT | £54.79 | Add to |
| 041 | F000-5364-00 | GEAR, SPUR 12T | £15.91 | Add to |
| 042 | F000-3866-00 | GEAR,SPUR,20T | £61.73 | Add to |
| 043 | F000-3719-00 | GEAR SPUR 25T | £90.57 | Add to |
| 044 | F000-3868-00 | GEAR SPUR (OBSOLETE) | N/A | |
| 045 | F000-3683-00 | GEAR SPUR 31T | £130.18 | Add to |
| 046 | F000-7088-00 | OIL SEAL (OBSOLETE) | N/A | |
| 047 | F000-3184-00 | WASHER,PLAIN | £9.62 | Add to |
| 048 | F000-7165-10 | WHEEL AXLE LH (OBSOLETE) | N/A | |
| 048A | F000-7166-10 | WHEEL AXLE LH (OBSOLETE) | N/A | |
| 050 | F000-5270-00 | RETAINING RING | £2.32 | Add to |
| 051 | F000-5181-00 | SPUR GEAR (OBSOLETE) | N/A | |
| 053 | F000-3919-00 | SHAFT,CROSS | £38.33 | Add to |
| 054 | F000-7165-20 | WHEEL AXLE RH (OBSOLETE) | N/A | |
| 054A | F000-7166-20 | WHEEL AXLE RH (OBSOLETE) | N/A | |
| 055 | F000-4691-00 | KIT SHIM (OBSOLETE) | N/A | |
| 056 | F000-7071-A0 | HOUSING LOWER (OBSOLETE) | N/A | |
| 057 | F000-6754-00 | FRICTION PUCK KIT (OBSOLETE) | N/A | |
| 058 | F000-7103-00 | BRAKE DISC (OBSOLETE) | N/A | |
| 059 | F000-3758-00 | SPACER (OBSOLETE) (OBSOLETE) | N/A | |
| 060 | F000-3843-00 | DOWEL PIN (OBSOLETE) | N/A | |
| 061 | F000-5554-00 | BRAKE JAW (OBSOLETE) | N/A | |
| 062 | F000-7029-00 | ACTUATING LEVER | £19.07 | Add to |
| 062A | F000-7032-00 | ACTUATING LEVER (OBSOLETE) | N/A | |
| 063 | F000-3760-00 | WASHER,PLAIN | £4.52 | Add to |
| 064 | F000-5555-00 | ANTI-ROTATION BRACKET (OBSOLETE) | N/A | |
| 065 | F000-3847-00 | NUT, LOCK (OBSOLETE) | N/A | |
| 066 | F000-5562-00 | SCREW | £6.69 | Add to |
| 067 | 119410610/0 | NEUTRAL SWITCH [MECHANICAL] | £54.79 | Add to |
