Transmission

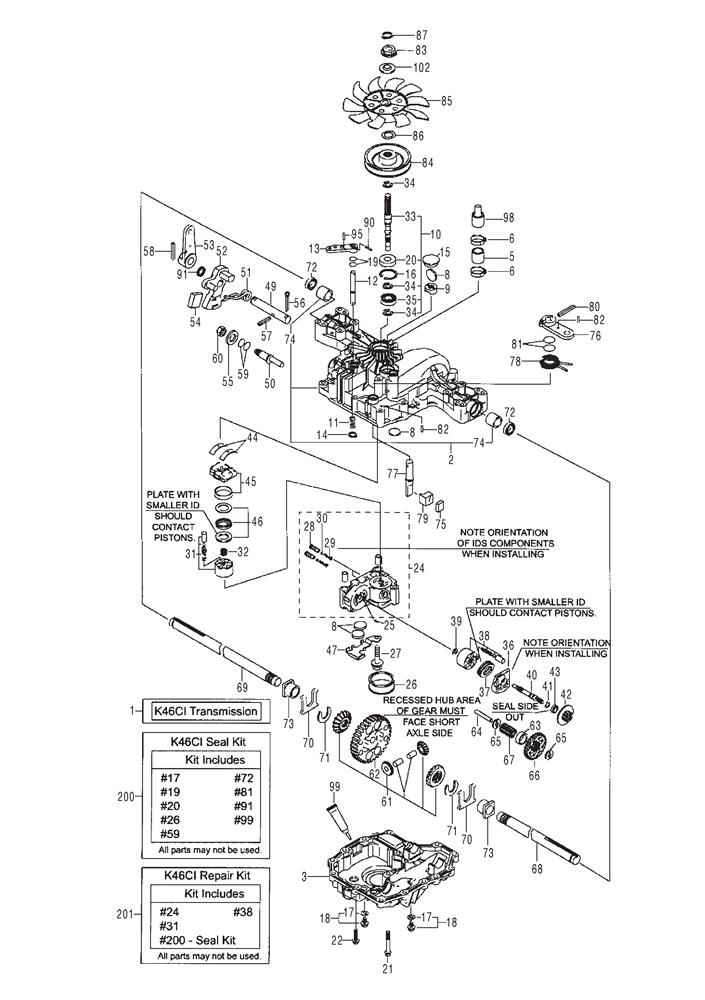

Transmission assembly details for Stiga Park Diesel (13-6180-35) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0123-01	TRANSAXLE K46CI	£1,627.92	Add to
002	1139-1470-01	UPPER HOUSING	£370.37	Add to
005	1139-1301-01	TUBE	£9.41	Add to
006	1139-1336-01	COBRA CLIP	£5.19	Add to
008	1139-1150-01	MAGNET	£8.23	Add to
009	1139-1341-01	MAGNET HOLDER	£4.37	Add to
010	1139-1606-01	PUMP SHAFT KIT	£77.90	Add to
011	1139-1347-01	SPRING	£1.91	Add to
012	1139-1251-01	BY-PASS SHAFT	£34.80	Add to
013	1139-1189-01	BY-PASS LEVER	£9.19	Add to
014	1139-1161-01	RING	£1.58	Add to
015	1139-1735-01	SEALING CAP	£8.32	Add to
016	1139-1104-01	CIRCLIP	£2.06	Add to
017	1139-1103-01	SEAL WASHER	£6.31	Add to
018	1139-1500-01	DRAIN BOLT KIT	£6.59	Add to
021	1139-1295-01	SCREW	£2.87	Add to
022	1139-0244-01	TAPPING SCREW (OBSOLETE) (OBSOLETE)	N/A
024	1139-1599-01	CENTRE CASE	£362.50	Add to
025	1139-1158-01	PIN	£1.58	Add to
026	1139-1405-01	FILTER 105 Μ	£24.64	Add to
028	1139-1468-01	IDS VALVE	£11.87	Add to
029	1139-1243-01	SPRING	£1.91	Add to
030	1139-1307-01	FILTER (OBSOLETE) (OBSOLETE)	N/A
031	1139-1600-01	REPAIR KIT	£1,203.86	Add to
032	1139-1245-01	PUMP SPRING	£4.80	Add to
033	1139-1246-01	PUMP SHAFT	£63.43	Add to
034	1139-1750-01	E-RING	£2.06	Add to
035	1139-1110-01	BEARING	£10.77	Add to
036	1139-1157-01	HOUSING	£15.13	Add to
037	1139-1501-01	BEARING	£40.64	Add to
038	1139-1509-01	CYLINDER BLOCK KIT	£250.75	Add to
039	1139-1160-01	WASHER	£1.58	Add to
040	1139-1353-01	MOTOR SHAFT	£33.69	Add to
041	1139-1021-01	CIRCLIP	£2.06	Add to
042	1139-1272-01	MOTOR GEAR	£19.62	Add to
043	1139-1453-01	BEARING	£18.75	Add to
045	1139-1597-01	SWASH PLATE	£38.19	Add to
046	1139-1508-01	THRUST BEARING KIT	£58.10	Add to
047	1139-1598-01	MAGNET HOLDER	£4.99	Add to
050	1139-1410-01	FULCRUM	£30.56	Add to
051	1139-1407-01	TORSION SPRING	£21.17	Add to
052	1139-1409-01	CONTROL ARM	£45.26	Add to
053	1139-1325-01	CONTROL LEVER	£22.91	Add to
054	1139-1596-01	JERKY PLATE	£6.47	Add to
055	1139-1102-01	WASHER	£5.75	Add to
056	1139-1355-01	COTTER PIN	£2.32	Add to
057	1139-1329-01	PIN	£2.06	Add to
058	1139-1285-01	PIN	£1.58	Add to
060	1139-1127-01	NUT	£3.40	Add to
061	1139-1404-01	DIFFERENTIAL GEAR KIT	£61.56	Add to
062	1139-1258-01	FINAL GEAR	£92.95	Add to
063	1139-1255-01	COLLAR	£5.46	Add to
064	1139-1256-01	REDUCTION SHAFT	£14.69	Add to
065	1139-1257-01	WASHER	£5.67	Add to
066	1139-1267-01	REDUCTION GEAR (OBSOLETE) (OBSOLETE)	N/A
067	1139-1361-01	FINAL PINION GEAR	£25.15	Add to
068	1139-1344-01	AXLE SHAFT LH L=285mm	£79.25	Add to
069	1139-1345-01	AXLE SHAFT RH L=424mm	£98.40	Add to
070	1139-1078-01	THRUST WASHER	£10.36	Add to
071	1139-1163-01	RING	£1.79	Add to
072	1139-1080-01	SEAL 19328	£11.32	Add to
073	1139-1164-01	BUSH	£3.15	Add to
074	1139-1414-01	BUSH (19.05)	£4.35	Add to
075	1139-1260-01	BRAKE SHOE	£2.18	Add to
076	1139-1261-01	BRAKE ARM	£10.03	Add to
077	1139-1320-01	BRAKE SHAFT	£47.74	Add to
078	1139-1411-01	RETURN SPRING	£9.22	Add to
079	1139-1264-01	BRAKE ACTUATOR	£5.60	Add to
080	1139-1282-01	PIN	£5.03	Add to
083	1139-1248-01	SPLINE COLLAR	£3.96	Add to
084	1139-1484-01	BELT PULLEY	£45.70	Add to
085	1134-4190-01	FAN	£22.35	Add to
086	1139-1266-01	LOCK WASHER	£1.79	Add to
087	1139-1149-01	CIRCLIP	£1.58	Add to
095	1139-1279-01	PIN	£1.58	Add to
098	1139-1306-01	ADAPTOR	£4.78	Add to
099	1139-1443-01	SEALANT (TUBE)	£38.16	Add to
102	1139-1276-01	WASHER	£5.32	Add to
200	1139-1403-01	SEAL KIT	£184.24	Add to
201	1139-1600-01	REPAIR KIT	£1,203.86	Add to
