Power Take-off

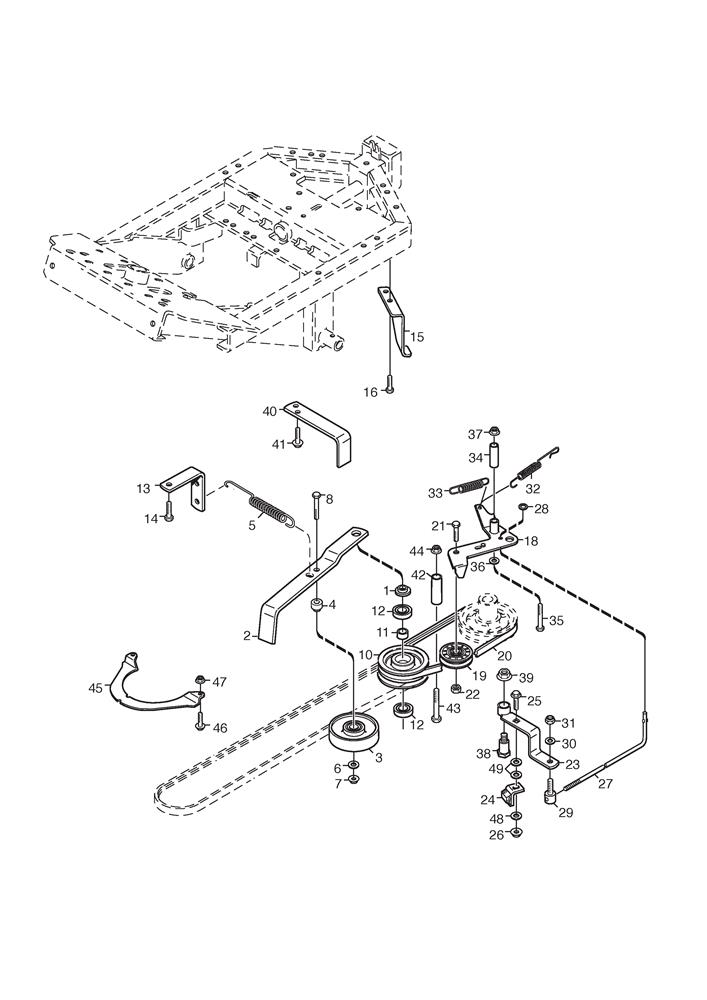

Power Take-off assembly details for Stiga Park Compact 14 (13-6109-20) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5548-01	SPACER	£14.32	Add to
002	1137-1124-01	TENSION WHEEL ARM	£83.40	Add to
003	387605007/0	TENSION ROLLER PULLEY	£56.84	Add to
004	1134-1888-04	SPACER	£9.41	Add to
005	1134-5111-01	SPRING	£18.53	Add to
006	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
007	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
008	112691700/0	SCREW M8 x 55	£1.91	Add to
010	387605002/0	DOUBLE CENTRE PULLEY ASSEMBLY	£84.77	Add to
011	1134-0051-09	SPACER	£14.05	Add to
012	119216056/0	BEARING	£21.66	Add to
013	1134-5112-01	SPRING ATTACHMENT BRACKET	£27.27	Add to
014	9945-0816-16	SCREW M8 X 16	£2.54	Add to
015	1134-5110-01	HOOK PLATE	£44.33	Add to
016	9893-0616-16	SCREW M6 x 16	£2.47	Add to
018	1134-2018-02	TENSION ARM	£39.29	Add to
019	387605008/0	TENSION PULLEY [GREY]	£35.71	Add to
020	1134-9173-01	PTO DRIVE BELT [KEVLAR]	£31.63	Add to
021	9997-1030-16	SCREW M6S M10 x 30	£3.00	Add to
022	112295200/0	HEXAGON NUT M10	£1.79	Add to
023	1134-4111-01	BRAKE ARM	£31.63	Add to
024	1134-4164-03	BRAKE PAD	£32.99	Add to
025	9897-0825-16	SCREW M8 x 25	£3.15	Add to
026	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
027	1134-4162-01	BRAKE ROD	£14.05	Add to
028	112604897/0	STARLOCK WASHER D=5	£2.06	Add to
029	1134-4170-01	PIVOT BOLT	£14.32	Add to
030	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
031	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
032	4231-0013-00	SPRING	£8.87	Add to
033	1135-3307-01	BRAKE SPRING	£23.72	Add to
034	1134-1565-10	SPACER	£8.73	Add to
035	112793900/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
036	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
037	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
038	1134-4163-02	SHOULDER BOLT	£8.87	Add to
039	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
040	1134-3958-01	BELT GUIDE	£17.45	Add to
041	9893-0616-16	SCREW M6 x 16	£2.47	Add to
042	1134-0041-03	BUSH	£11.59	Add to
043	9997-1070-12	SCREW M6S (M10 X 70)	£3.81	Add to
044	9739-1031-22	NUT M10	£2.32	Add to
045	1134-3654-01	GUARD	£35.71	Add to
046	9959-0612-16	SCREW M6SF M6 x 12 TL	£1.79	Add to
047	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
048	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
049	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
