Foot Controls

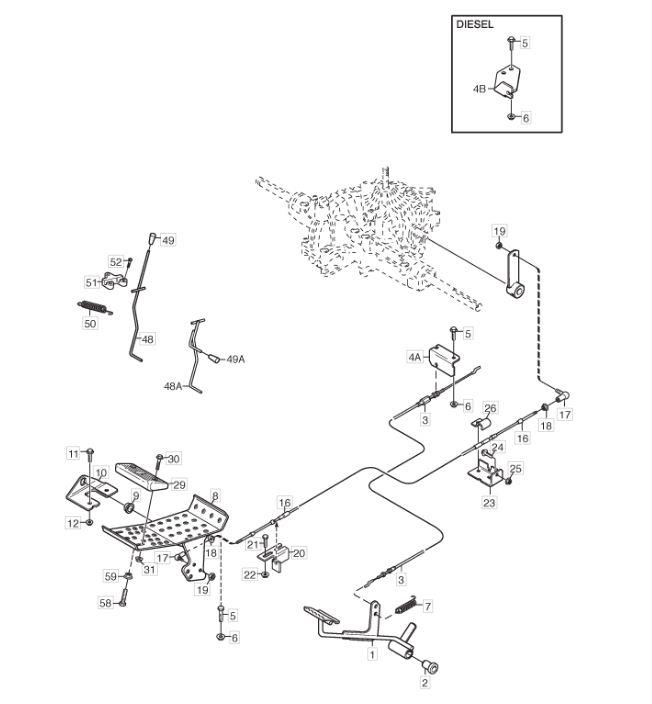

Foot Controls assembly details for Stiga Park Comfort (13-6182-15) 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	1134-9024-01	PLASTIC BUSH (4 PCS)	£19.66	Add to
003	1134-3584-03	BRAKE/CLUTCH CABLE	£34.35	Add to
004A	1134-6467-01	CABLE HOLDER	£6.55	Add to
005	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
006	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
007	1134-3974-01	SPRING	£12.40	Add to
008	1134-6353-01	IMPLEMENT PEDAL	£43.62	Add to
009	1134-6313-01	BEARING	£7.36	Add to
010	1134-2700-01	BRACKET	£17.45	Add to
011	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
012	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
016	1134-2766-05	SPEED CONTROL CABLE	£76.59	Add to
017	9570-0001-00	ELBOW LINK	£18.90	Add to
018	9739-0531-22	NUT M5	£2.47	Add to
019	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
020	1134-6317-01	WIRE BRACKET	£8.73	Add to
021	9959-0620-16	SCREW	£2.32	Add to
022	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
023	1134-3395-01	ATTACHMENT BRACKET	£30.26	Add to
024	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
025	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
026	1134-2021-01	CLAMP	£7.36	Add to
029	1134-6340-02	FOOT REST	£7.92	Add to
030	9959-0620-16	SCREW	£2.32	Add to
031	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
048	1134-5101-01	BRAKE ROD	£18.13	Add to
049	1134-3808-01	KNOB	£9.00	Add to
050	1131-1497-01	BRAKE SPRING	£10.50	Add to
051	1134-4002-01	BRAKE ROD ATTACHMENT	£12.27	Add to
052	9838-9516-12	SCREW K50 x 16	£2.47	Add to
058	9997-0835-16	SCREW M6S 8 x 35	£2.32	Add to
059	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
