Power take-off

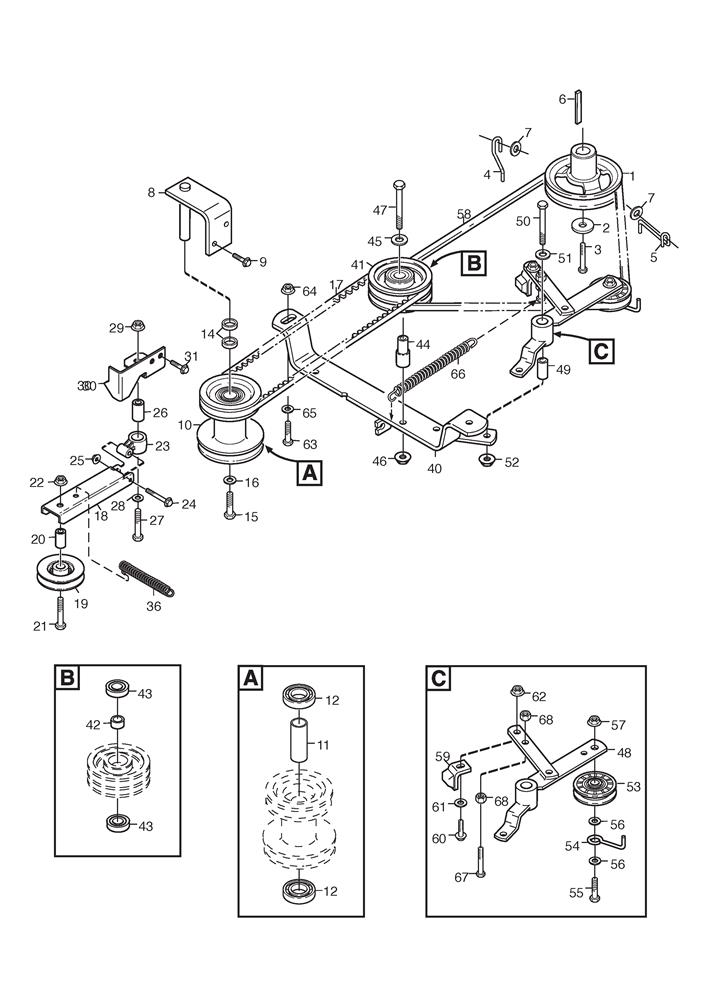

Power take-off assembly details for Stiga Villa 12 (13-2717-12) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0081-01	ENGINE PULLEY	£32.99	Add to
002	1134-5017-01	WASHER 40 x 11.5 x 4	£3.55	Add to
003	9987-5332-16	SCREW U6S 7/16" UNF x 32	£2.47	Add to
004	1134-5058-01	BELT GUIDE	£19.36	Add to
005	1134-5057-01	BELT GUIDE	£18.82	Add to
006	9600-0251-01	KEY L=2.5"	£6.95	Add to
007	9699-0056-02	WASHER	N/A	POA
008	1134-4650-01	PULLEY BRACKET	£44.09	Add to
009	9945-0816-16	SCREW M8 X 16	£2.54	Add to
010	1134-4643-01	INTERMEDIATE PULLEY	£225.12	Add to
011	1134-0051-12	SPACER	£13.08	Add to
012	9549-0019-00	BALL BEARING	N/A	POA
014	1134-0052-00	SPACER	£8.87	Add to
015	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
016	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
017	1134-9079-01	DRIVE BELT	£41.16	Add to
018	1134-5231-01	TENSION ARM	£23.72	Add to
019	1134-6329-01	TENSION ROLLER ASSY	N/A	POA
020	1134-4619-01	SPACER	£9.39	Add to
021	9997-1060-12	SCREW M6S M10 x 60	£2.54	Add to
022	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
023	1134-6314-01	TENSION ARM ATTACHMENT	£9.00	Add to
024	9997-0640-12	SCREW	N/A	POA
025	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
026	1134-4619-01	SPACER	£9.39	Add to
027	9930-1050-12	SCREW M10 x 50	£3.00	Add to
028	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
029	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
030	1134-4708-02	BRACKET	£56.15	Add to
031	9945-0816-16	SCREW M8 X 16	£2.54	Add to
036	1131-1507-00	SPRING	£34.35	Add to
040	1134-5037-01	BRACKET	£61.60	Add to
041	387605002/0	DOUBLE CENTRE PULLEY ASSEMBLY	£84.77	Add to
042	1134-0051-09	SPACER	£14.05	Add to
043	120001215/0	BEARING 6203 2RS C3	£32.57	Add to
044	1134-1839-02	SHAFT	£18.53	Add to
045	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
046	9739-1031-22	NUT M10	£2.32	Add to
047	9997-1070-12	SCREW M6S (M10 X 70)	£3.81	Add to
048	1134-5541-01	CLUTCH LEVER	N/A	POA
049	1134-1565-10	SPACER	£8.73	Add to
050	9997-0860-16	SCREW M6S M8 x 60	£1.91	Add to
051	9699-0056-02	WASHER	N/A	POA
052	9739-0831-22	NUT	N/A	POA
053	387605008/0	TENSION PULLEY [GREY]	£35.71	Add to
054	1134-1795-01	BELT STIRRUP	£11.87	Add to
055	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
056	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
057	9739-1031-22	NUT M10	£2.32	Add to
058	1134-9078-01	DRIVE BELT	£24.95	Add to
059	1134-4164-03	BRAKE PAD	£32.99	Add to
060	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
061	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
062	9747-0831-02	LOCK NUT	N/A	POA
063	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
064	9739-0831-22	NUT	N/A	POA
065	9699-0056-02	WASHER	N/A	POA
066	1131-1506-00	SPRING	£24.95	Add to
067	9997-0860-16	SCREW M6S M8 x 60	£1.91	Add to
068	9739-0831-22	NUT	N/A	POA
