Seat

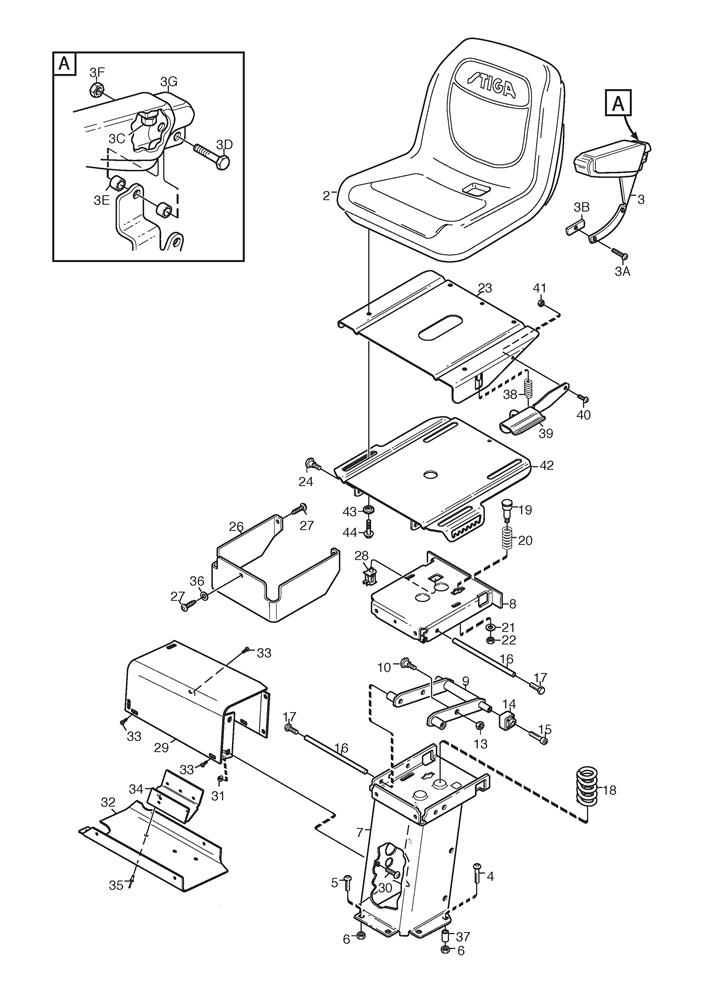

Seat assembly details for Stiga Park Diesel 4WD (13-6181-34) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	137722602/1	SEAT [PARK]	£423.06	Add to
003	1134-7831-01	ARM REST ASSEMBLY KIT	£187.79	Add to
003A	1134-5095-01	SCREW-ARM RESTS	£6.16	Add to
003B	1134-5096-01	NUT ARM RESTS	£3.64	Add to
003C	9988-3713-16	SCREW U6S 3/8UNCX13	£4.59	Add to
003D	9988-3745-12	SCREW U6S 3/8UNCX45	£3.64	Add to
003E	1134-5094-01	SPACER-ARM RESTS	£10.77	Add to
003F	9795-3731-02	NUT	£3.17	Add to
003G	1134-7831-01	ARM REST ASSEMBLY KIT	£187.79	Add to
004	9897-0880-12	SCREW MVBF 8 x 80	£2.32	Add to
005	9897-0820-16	SCREW M8 x 20	£2.32	Add to
006	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
007	1134-5695-02	SEAT BRACKET	£266.01	Add to
008	1134-6080-01	UPPER PLATE	£86.13	Add to
009	1134-6076-01	PIVOT LINK	£91.58	Add to
010	1134-0240-00	SCREW	£9.14	Add to
013	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
014	1134-4084-01	SLIDE BLOCK	£16.50	Add to
015	9939-0816-16	SCREW MC6S M8X16	£7.23	Add to
016	1134-4082-03	SHAFT	£73.87	Add to
017	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
018	1134-4160-01	SEAT SPRING	£24.95	Add to
019	1134-4153-01	PUSH PIN	£18.27	Add to
020	1134-4159-01	SPRING	£10.65	Add to
021	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
022	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
023	1134-6090-01	UPPER SLIDE PLATE	£99.76	Add to
024	1134-0240-00	SCREW	£9.14	Add to
026	1134-6121-01	COVER	£54.48	Add to
027	9852-8013-16	SCREW	£2.47	Add to
028	1134-3156-01	SEAT SWITCH [BLACK]	£45.26	Add to
029	1134-3990-01	ATTACHMENT-SIDE PANEL	£164.18	Add to
030	9897-0820-16	SCREW M8 x 20	£2.32	Add to
031	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
032	1134-4130-01	LOWER COVER YELLOW STIGA	£41.16	Add to
033	9840-8019-16	SCREW	£2.47	Add to
034	1134-4135-01	RELAY HOLDER	£17.04	Add to
035	9632-0522-00	POP RIVET	£2.47	Add to
036	9699-0087-02	WASHER 5.3 x 16 x 2	£2.47	Add to
037	1134-1565-08	SPACER	£9.94	Add to
038	1134-3262-01	SPRING	£8.73	Add to
039	1134-6073-01	HANDLE ASSEMBLY	£41.16	Add to
040	9893-0616-16	SCREW M6 x 16	£2.47	Add to
041	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
042	1137-0055-01	LOWER SLIDE PLATE	£98.40	Add to
043	1134-6078-01	FLANGE WASHER	£5.87	Add to
044	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
