Wheels

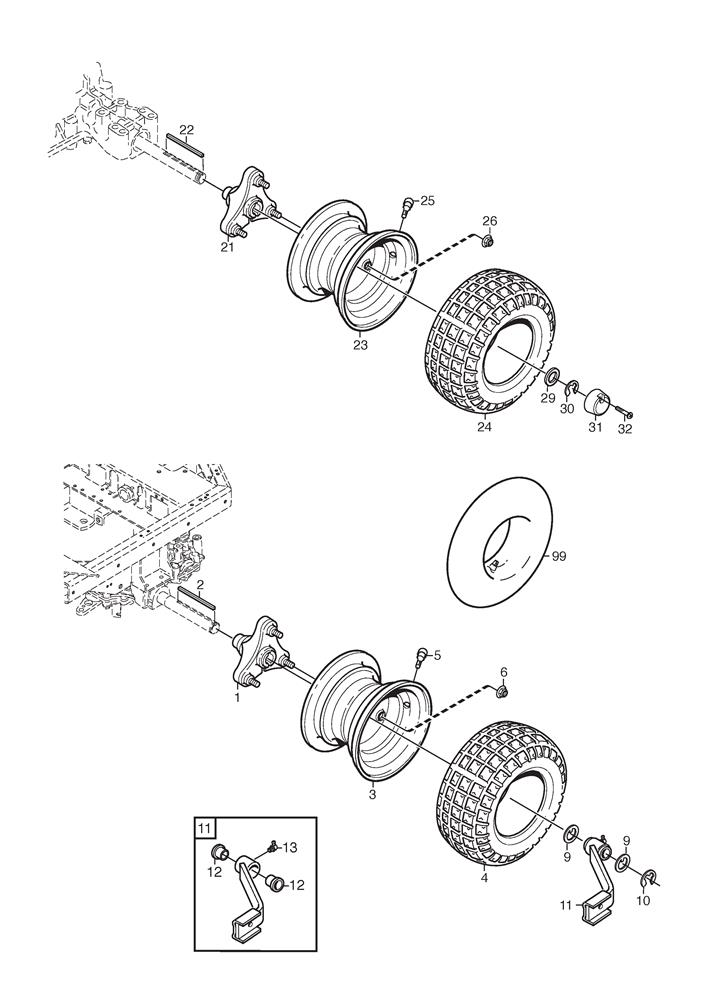

Wheels assembly details for Stiga Park Compact 16 4WD (13-6104-19) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-4844-03WHEEL HUB ASSEMBLY£58.87 Add to
0021134-3383-02KEY (L=51 MM)£9.41 Add to
0031134-4558-01WHEEL RIM£107.93 Add to
0049545-0116-00TYRE 16 x 7.50-8£86.13 Add to
005125950000/0PNEUMATIC VALVE£5.73 Add to
0069731-1031-22LOCK NUT M6MF M10£2.47 Add to
009137670203/0WASHER DEST=45 DINT=25.6£5.05 Add to
0109653-0002-04CIRCLIP 1"£3.69 Add to
0111134-5886-01ATTACHMENT ARM [4WD]£77.95 Add to
0121134-5686-01BEARING BUSH D= 25.4mm£14.58 Add to
0139501-0502-00GREASE JOINT£8.87 Add to
0211134-4844-02WHEEL HUB ASSEMBLY£57.52 Add to
0221134-2471-01KEY£9.41 Add to
0231134-4558-01WHEEL RIM£107.93 Add to
0249545-0116-00TYRE 16 x 7.50-8£86.13 Add to
025125950000/0PNEUMATIC VALVE£5.73 Add to
0269731-1031-22LOCK NUT M6MF M10£2.47 Add to
0299699-0042-02WASHER 20 x 36 x 3£2.47 Add to
0309653-0001-04CIRCLIP 3/4"£2.61 Add to
0311134-4796-01HUB CAP£5.46 Add to
0329947-0540-19SCREW£2.06 Add to
