Transmission

Transmission assembly details for Stiga Park Compact 13. 13-6101-19 2008 model

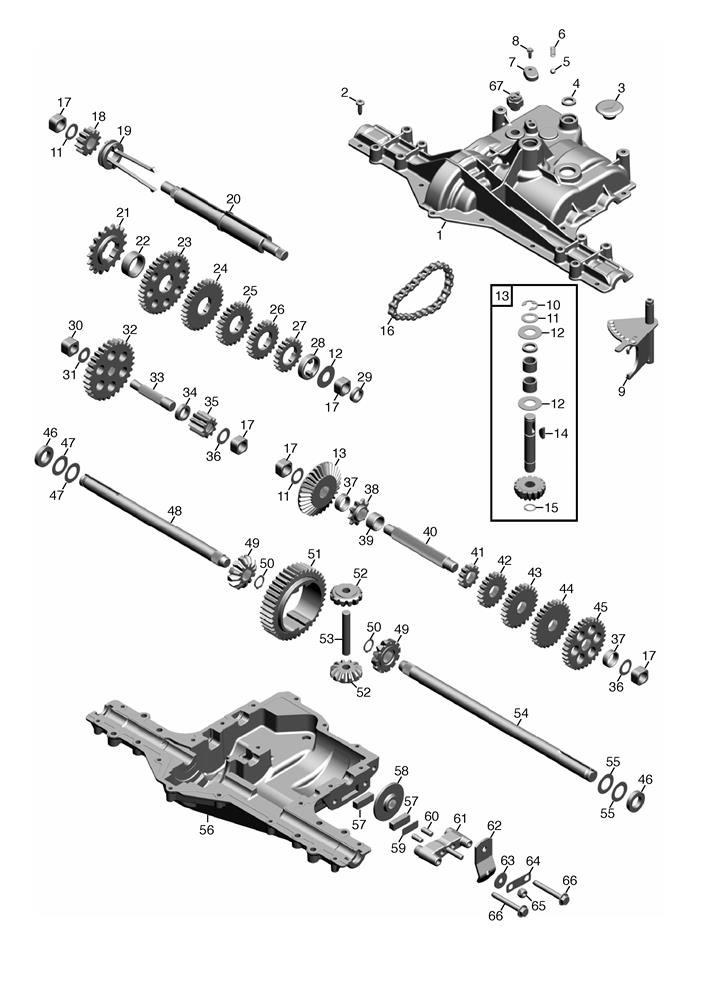

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
000	1134-6349-01	TRANSAXLE (DANA 6800-8)	£1,409.14	Add to
002	F000-1919-00	SCREW,TAP	£5.45	Add to
003	F004-1356-00	RUBBER PLUG	£2.47	Add to
008	F084-0052-00	SCREW	£5.92	Add to
012	F000-3876-00	WASHER	£9.14	Add to
016	F000-3625-00	CHAIN,24 PITCHES	£101.13	Add to
019	F000-6692-00	SHIFT COLLAR	£183.07	Add to
021	F000-3830-00	SPROCKET,18T	£68.94	Add to
022	F000-7094-00	SPACER	£8.84	Add to
024	F000-3867-00	GEAR,SPUR,30T	£159.45	Add to
025	F000-3783-00	GEAR,SPUR,25T	£109.10	Add to
027	F000-5202-00	GEAR,SPUR, 19T	£88.77	Add to
028	F000-5027-00	SPACER	£20.31	Add to
030	F000-7092-00	BUSHING	£28.82	Add to
031	F000-3890-00	PLAIN WASHER	£2.30	Add to
035	F000-5180-00	SPUR GEAR	£24.74	Add to
037	F000-3714-00	SPACER	£12.21	Add to
039	F000-7162-00	SPACER	£4.59	Add to
040	F000-7084-00	DRIVE SHAFT	£54.79	Add to
041	F000-5364-00	GEAR, SPUR 12T	£15.91	Add to
042	F000-3866-00	GEAR,SPUR,20T	£61.73	Add to
043	F000-3719-00	GEAR SPUR 25T	£90.57	Add to
044	F000-3868-00	GEAR SPUR (OBSOLETE)	N/A
045	F000-3683-00	GEAR SPUR 31T	£130.18	Add to
047	F000-3184-00	WASHER,PLAIN	£9.62	Add to
050	F000-5270-00	RETAINING RING	£2.32	Add to
053	F000-3919-00	SHAFT,CROSS	£38.33	Add to
059	F000-3758-00	SPACER (OBSOLETE) (OBSOLETE)	N/A
062	F000-7029-00	ACTUATING LEVER	£19.07	Add to
063	F000-3760-00	WASHER,PLAIN	£4.52	Add to
066	F000-5562-00	SCREW	£6.69	Add to
067	119410610/0	NEUTRAL SWITCH [MECHANICAL]	£54.79	Add to
