Transmission (Hydraulic Parts)

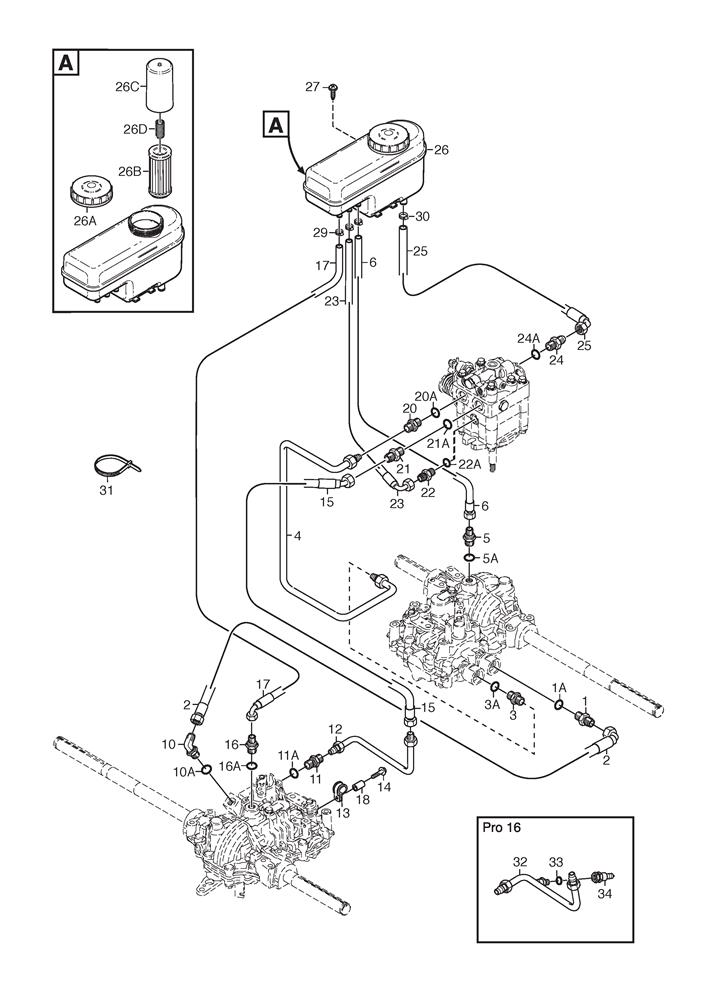

Transmission (Hydraulic Parts) assembly details for Stiga Park Pro 16 4WD (13-6241-13) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5810-01HYDRAULIC COUPLING£17.86 Add to
001A9404-0029-01O RING 16.36 x 2.21£5.46 Add to
003112375004/0HYDRAULIC COUPLINGN/A POA
003A9404-0029-01O RING 16.36 x 2.21£5.46 Add to
004387869500/0HYDRAULIC HOSE£98.40 Add to
0051134-5809-01HYDRAULIC COUPLING£17.86 Add to
005A9404-0029-01O RING 16.36 x 2.21£5.46 Add to
010A9404-0029-01O RING 16.36 x 2.21£5.46 Add to
011112375009/0THREADED HYDRAULIC COUPLING 3/4"(w/caps)£17.88 Add to
011A9404-0029-01O RING 16.36 x 2.21£5.46 Add to
0139578-0028-01TUBE CLAMP£9.31 Add to
0149959-0825-16SCREW FLANGED TE M6SF M8 x 25£2.06 Add to
0151134-5753-01HYDRAULIC TUBE£163.80 Add to
0161134-5809-01HYDRAULIC COUPLING£17.86 Add to
016A9404-0029-01O RING 16.36 x 2.21£5.46 Add to
0181134-1565-09SPACER£13.90 Add to
020112375004/0HYDRAULIC COUPLINGN/A POA
020A9404-0029-01O RING 16.36 x 2.21£5.46 Add to
0211134-5810-01HYDRAULIC COUPLING£17.86 Add to
021A9404-0029-01O RING 16.36 x 2.21£5.46 Add to
0221134-4282-01HYDRAULIC NIPPLE£46.61 Add to
022A9404-0028-01O RING 11.89 x 1.98£4.78 Add to
023387869518/1PUMP DRAINAGE HOSE£66.84 Add to
0241134-5810-01HYDRAULIC COUPLING£17.86 Add to
024A9404-0029-01O RING 16.36 x 2.21£5.46 Add to
026387735253/2HYDRAULIC OIL TANK ASSY£140.36 Add to
026B1134-5962-01OIL FILTER (METAL)£32.99 Add to
026B1134-5962-02OIL FILTER (PAPER)£27.27 Add to
026C1134-5963-01COVER-OIL FILTER£12.00 Add to
026D1134-5964-01SPRING-OIL FILTER£11.59 Add to
0279838-9516-12SCREW K50 x 16£2.47 Add to
0299578-0023-04HOSE CLAMP£5.32 Add to
030118375059/0TUBE CLAMP£15.27 Add to
0319579-0003-00CABLE HOLDER£2.06 Add to
0321134-6039-01HYDRAULIC PIPE ASSEMBLY£197.87 Add to
0331134-4948-01SEAL WASHER 1/4"£2.59 Add to
034112375007/0QUICK COUPLING-MALE 1/4" (w/caps)£19.13 Add to
