Kanzaki hydraulic pump kpl-10alp

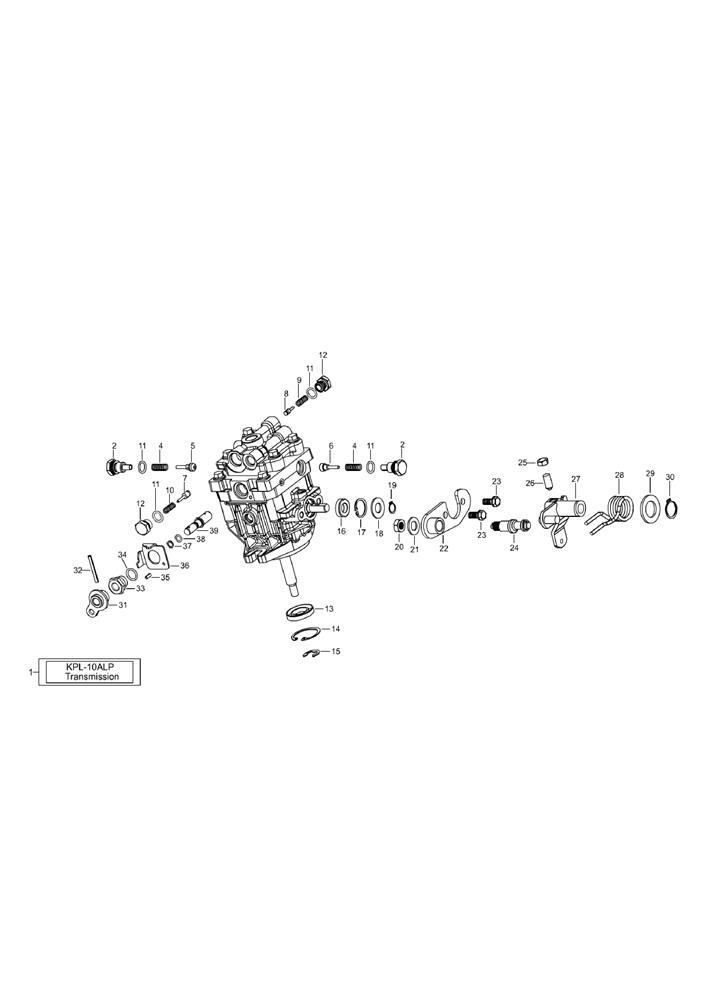

Kanzaki hydraulic pump kpl-10alp assembly details for Stiga Park Pro 16 4WD (13-6241-13) 2007 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5700-01	HYDRAULIC PUMP KPL-10ALP	£934.99	Add to
002	1139-1367-01	CHECK PLUG	£32.20	Add to
005	1139-1374-01	CHECK VALVE R	£43.69	Add to
006	1139-1368-01	CHECK VALVE F	£38.16	Add to
007	1139-1386-01	CHARGE VALVE	£24.26	Add to
008	1139-1385-01	RELIEF VALVE	£26.87	Add to
009	1139-1376-01	SPRING	£9.78	Add to
010	1139-1389-01	VALVE SPRING	£5.87	Add to
011	1139-1114-01	O RING	£4.80	Add to
013	1139-1396-01	SEAL	£23.31	Add to
014	1139-1369-01	CIRCLIP	£3.64	Add to
015	1139-1750-01	E-RING	£2.06	Add to
016	1139-1365-01	OIL SEAL	£30.62	Add to
017	1139-1393-01	RING	£3.64	Add to
018	1139-1382-01	WASHER	£3.64	Add to
020	1139-1127-01	NUT	£3.40	Add to
021	1139-1102-01	WASHER	£5.75	Add to
022	1139-1377-01	PLATE (RETURN SPRING )	£79.66	Add to
023	1139-1122-01	BOLT W/WASHER	£3.64	Add to
024	1139-1378-01	FULCRUM	£92.84	Add to
025	1139-1127-01	NUT	£3.40	Add to
026	1139-1381-01	SET SCREW	£7.10	Add to
028	1139-1380-01	RETURN SPRING	£50.22	Add to
030	1139-1392-01	RING	£2.47	Add to
031	1139-1372-01	BY-PASS LEVER	£61.17	Add to
032	1139-1395-01	PIN (OBSOLETE)	N/A
033	1139-1371-01	BY-PASS ADAPTER	£36.13	Add to
034	1139-1115-01	O RING	£1.79	Add to
036	1139-1373-01	PLAT BY-PASS PLATE	£7.11	Add to
037	1139-1387-01	RING BACK-UP RING	£7.34	Add to
038	1139-1112-01	O RING	£4.01	Add to
039	1139-1370-01	BY PASS PIN	£42.26	Add to
