EI. Equipment

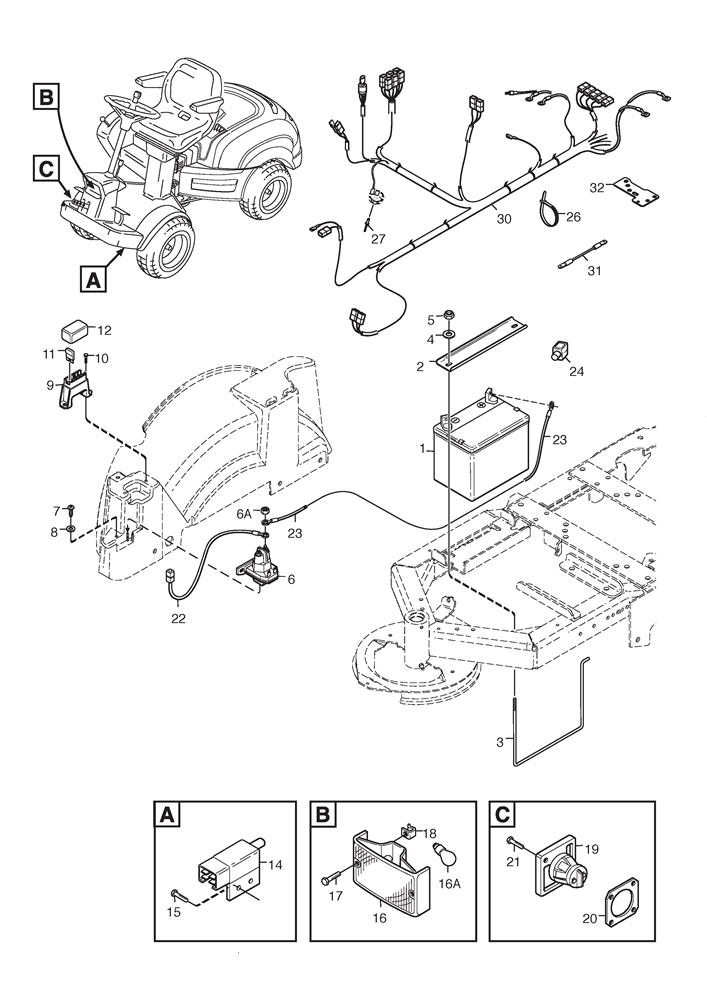

EI. Equipment assembly details for Stiga Park Pro 16 4WD (13-6241-13) 2007 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118120065/0	BATTERY YUASA 12V 30AH NO RETURNS ON THIS ITEM	£109.58	Add to
004	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
005	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
006	118736112/0	SOLENOID	£39.80	Add to
006A	9743-5121-32	LOCK NUT 5/16"	£1.79	Add to
007	9838-9516-12	SCREW K50 x 16	£2.47	Add to
008	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
009	1134-3491-01	FUSE HOLDER	£13.90	Add to
010	9838-9516-12	SCREW K50 x 16	£2.47	Add to
011	1134-3496-01	FUSE 10A	£2.66	Add to
011	1134-3496-06	FUSE 20A	£2.06	Add to
011	1134-3496-07	FUSE 30A	£5.05	Add to
012	1134-3631-01	COVER-FUSE HOLDER	£12.96	Add to
014	1134-3399-01	SWITCH	£45.26	Add to
015	9943-0516-16	SCREW	£2.40	Add to
017	112727812/0	SELF-TAPPING SCREW TCB 3.5 x 22	£2.06	Add to
018	1134-4177-01	CLIPS	£5.19	Add to
019	387149302/0	2 POLE FEMALE CONNECTOR	£11.33	Add to
020	1134-4052-01	SUPPORT WASHER	£9.28	Add to
021	9840-7716-16	SCREW	£2.32	Add to
022	1134-4970-01	CABLE	£16.36	Add to
023	1134-0234-02	BATTERY CABLE (+)	£24.95	Add to
024	1134-2310-01	GUARD CAP (+)	£9.28	Add to
026	9579-0003-00	CABLE HOLDER	£2.06	Add to
027	9632-0522-00	POP RIVET	£2.47	Add to
032	1134-6454-01	GROUND PLATE	£15.41	Add to
