Power Take-Off

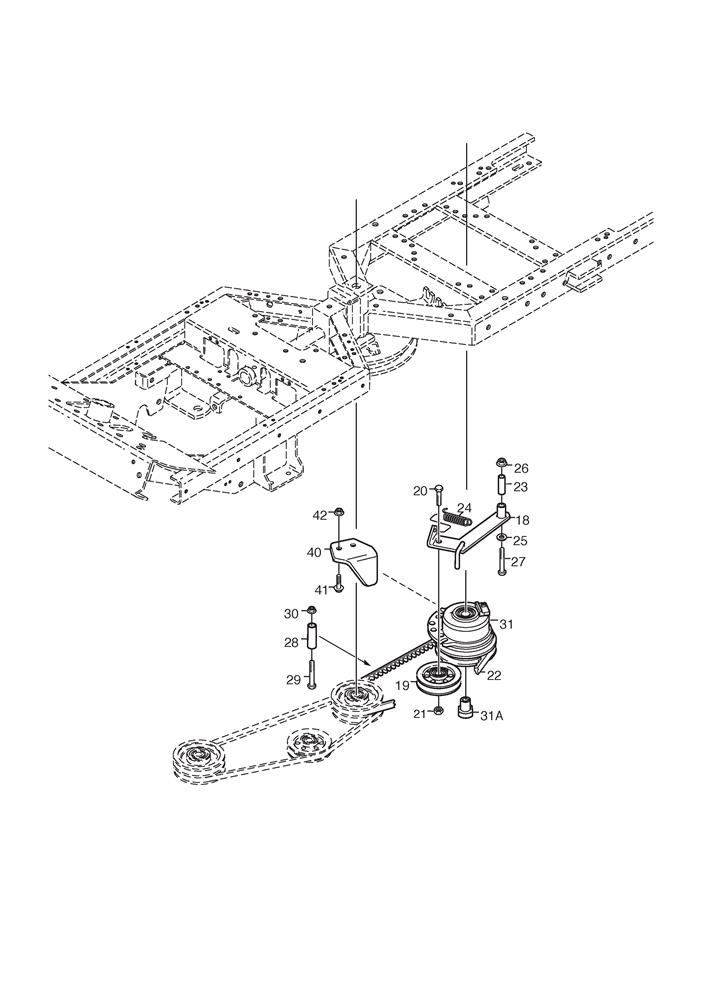

Power Take-Off assembly details for Stiga Park Diesel 4WD (13-6181-33) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0181134-3658-02TENSIONING ARM£91.58 Add to
019387605009/0TENSION PULLEY ASSY£50.80 Add to
0209997-1040-16SCREW M6S 10 x 40£7.23 Add to
0219739-1031-22NUT M10£2.32 Add to
0221134-9047-01PTO DRIVE BELT£47.97 Add to
0231134-1565-10SPACER£8.73 Add to
0241134-3379-01SPRING£18.27 Add to
025112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
026112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0279997-0860-16SCREW M6S M8 x 60£1.91 Add to
0281134-0041-03BUSH£11.59 Add to
0299997-1070-12SCREW M6S (M10 X 70)£3.81 Add to
0309739-1031-22NUT M10£2.32 Add to
0311134-7526-01MAGNETIC CLUTCH (NO RETURNS ON THIS ITEM )£287.40 Add to
031A1134-5016-01BUSH (FOR ELECTRIC PTO-CLUTCH)£31.63 Add to
0401134-4924-01STRUT£47.97 Add to
0419997-1050-16SCREW M6S M10 x 50£2.87 Add to
0429739-1031-22NUT M10£2.32 Add to
