Hand Controls

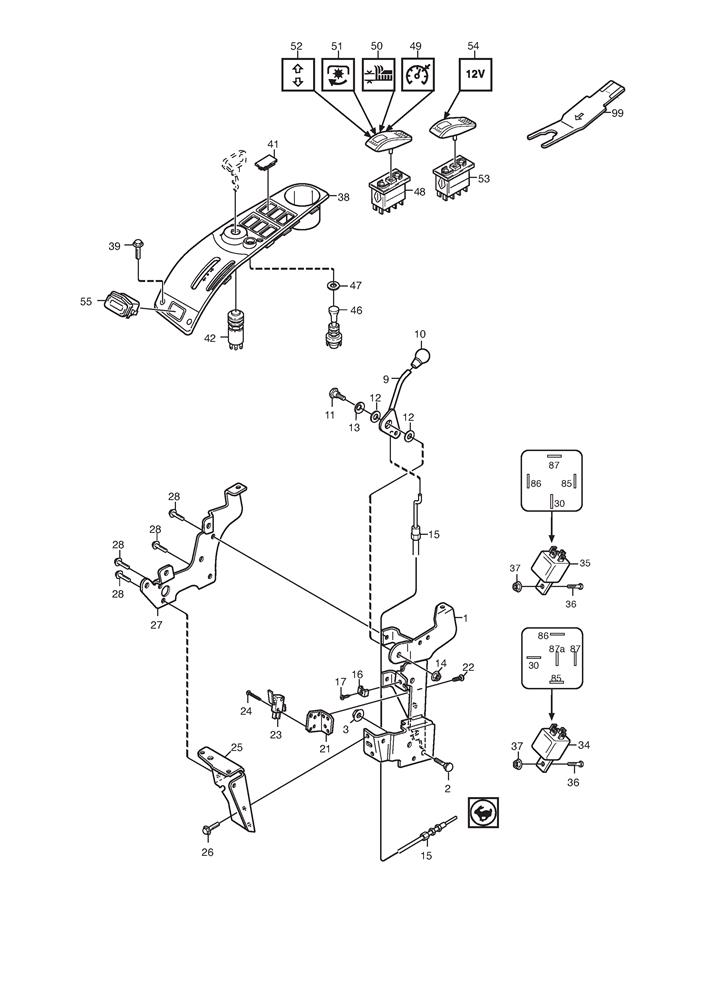

Hand Controls assembly details for Stiga Park Diesel 4WD (13-6181-33) 2007 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6324-01	PANEL BRACKET	£57.52	Add to
003	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
010	1134-4078-01	KNOB	£5.87	Add to
011	1134-0240-00	SCREW	£9.14	Add to
012	1134-4242-01	SPACER WASHER	£4.78	Add to
013	9694-0001-00	SPACER WASHER	£2.06	Add to
014	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
016	337546757/0	ENGINE CABLE HOOK PLATE	£4.79	Add to
017	9943-0516-16	SCREW	£2.40	Add to
021	1134-5358-01	SWITCH BRACKET	£31.10	Add to
022	9852-8013-16	SCREW	£2.47	Add to
023	9400-0285-01	SWITCH	£79.32	Add to
025	1134-6328-01	SPACER	£19.93	Add to
026	9893-0616-16	SCREW M6 x 16	£2.47	Add to
027	1134-6327-01	FRONT PLATE	£21.82	Add to
028	9893-0616-16	SCREW M6 x 16	£2.47	Add to
034	1134-2871-03	STARTER RELAY [5 SPADE]	£45.26	Add to
035	1134-2871-01	DECK RELAY [4 SPADE]	£45.26	Add to
037	9739-0531-22	NUT M5	£2.47	Add to
039	9946-0525-16	SCREW M5 x 25	£2.47	Add to
041	1134-4129-01	COVER	£6.14	Add to
042	118450079/0	IGNITION SWITCH [DIESEL]	£155.93	Add to
046	9400-0296-01	SWITCH	£34.35	Add to
047	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
048	9400-0282-01	SWITCH C/W DIODE No returns on this item	£76.59	Add to
049	9400-0280-02	SWITH COVER-CRUISE CONTROL	£19.36	Add to
050	9400-0280-03	SWITCH COVER-HEIGHT ADJUST	£18.27	Add to
051	9400-0280-01	SWITCH COVER-PTO	£19.77	Add to
052	9400-0280-04	SWITCH COVER-REAR TOOLS	£19.36	Add to
053	9400-0283-01	SWITCH	£92.95	Add to
054	9400-0280-05	SWITCH 12V	£6.27	Add to
099	9400-0290-01	TOOL	£27.27	Add to
