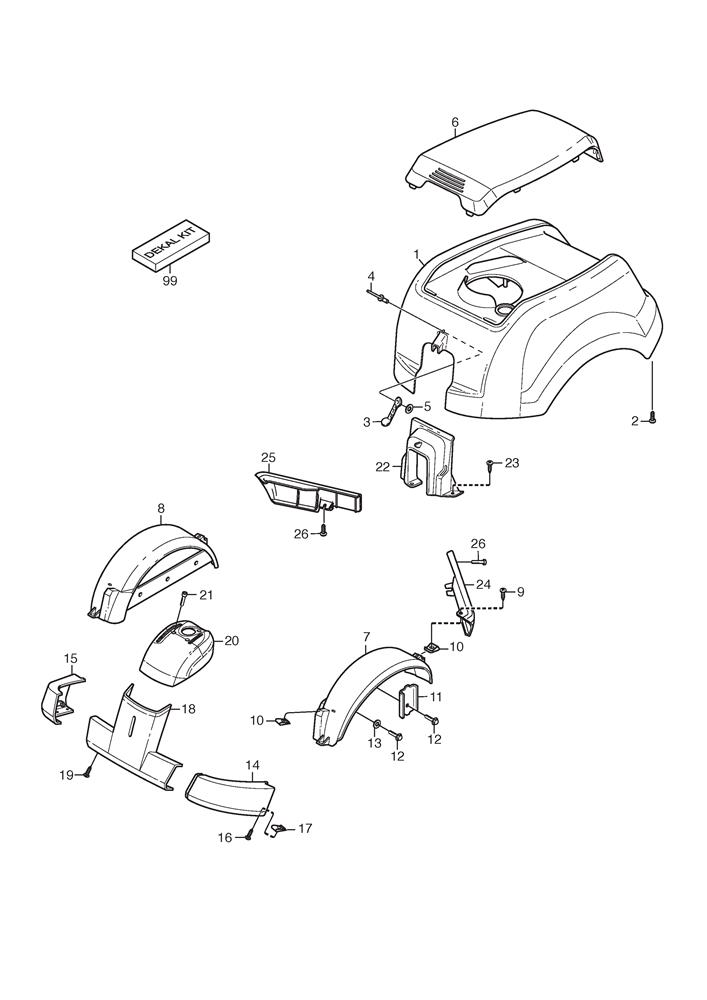

Body Work assembly details for Stiga Park Compact 16 4WD (13-6104-18) 2007 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5263-02	ENGINE HOOD [YELLOW]	£286.45	Add to
002	9838-9530-12	SCREW K50 x 30	£2.47	Add to
003	1134-9028-01	RUBBER STRAP (3 PCS)	£26.46	Add to
004	9632-0516-00	POP RIVET	£2.47	Add to
005	9699-0120-02	WASHER 3.2 x 14 x 1.5	£2.32	Add to
006	1134-5264-01	ENGINE COVER [GREY]	£82.05	Add to
007	337491255/0	LEFT MUDGUARD [GREY]	£114.74	Add to
008	337491254/0	RIGHT MUDGUARD [GREY]	£114.74	Add to
009	9893-0616-16	SCREW M6 x 16	£2.47	Add to
010	1134-4176-01	CLIP	£5.19	Add to
011	1134-0225-00	SUPPORT PLATE	£11.18	Add to
012	9945-0816-16	SCREW M8 X 16	£2.54	Add to
013	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
014	1134-5306-01	FRONT BUMPER LH [GREY]	£24.95	Add to
015	337502505/0	FRONT BUMPER RH [GREY]	£56.15	Add to
016	9893-0616-16	SCREW M6 x 16	£2.47	Add to
017	1134-4176-01	CLIP	£5.19	Add to
018	1134-5305-01	FRONT BUMPER [YELLOW]	£84.77	Add to
019	9893-0616-16	SCREW M6 x 16	£2.47	Add to
020	1134-5320-02	FRONT UPPER COVER [YELLOW]	£58.87	Add to
021	9946-0525-16	SCREW M5 x 25	£2.47	Add to
022	1134-6241-01	HOOD SUPPORT	£42.53	Add to
023	9893-0616-16	SCREW M6 x 16	£2.47	Add to
024	1134-3970-05	LEFT MOULDING [GREY]	£56.72	Add to
026	9893-0616-16	SCREW M6 x 16	£2.47	Add to
