Housing 3

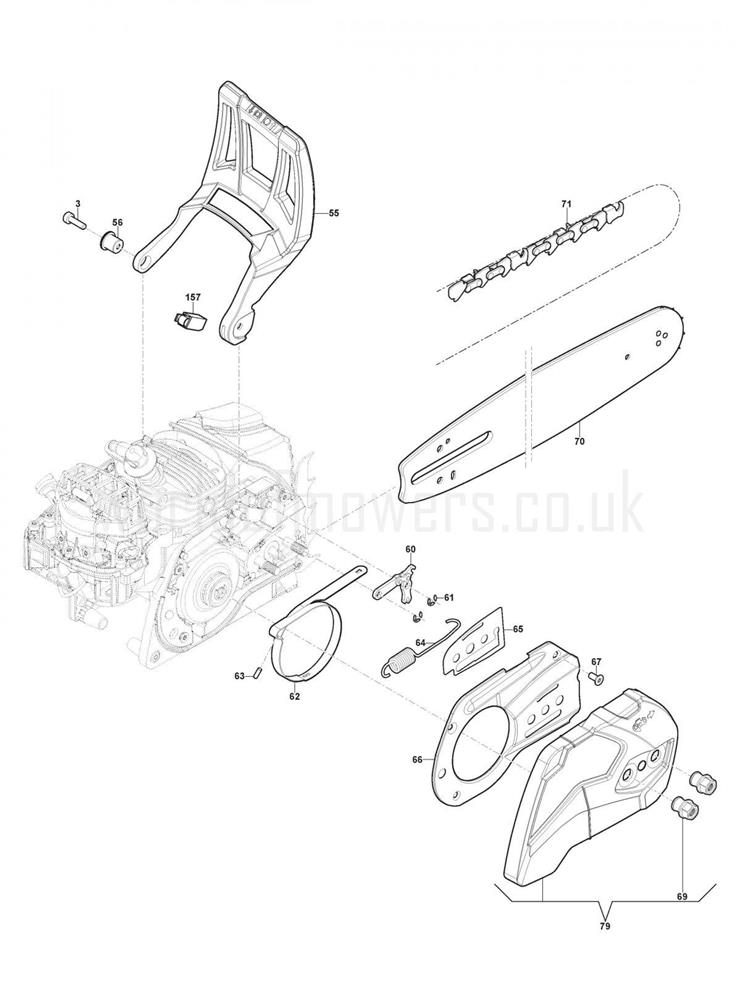

Housing 3 assembly details for Stiga SP 466 [240461602-S17] 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0032132550SCREW TCCE M5 x 25£1.79 Add to
055323455014/0FRONT HANDLE GUARD£16.38 Add to
056118804318/0BUSH£2.32 Add to
060118804313/0CHAIN BRAKE LEVER£17.45 Add to
061118804407/0RETAINING RING£1.50 Add to
062118804314/0BRAKE BAND£5.05 Add to
063123753000/0PIN D=3 x 9£2.00 Add to
064118804312/0BRAKE SPRING£1.79 Add to
065118804387/0SEAL GASKET£2.32 Add to
066118804386/0BRAKE SPRING COVER£8.04 Add to
0679860-0520-16SCREW£1.79 Add to
069118804303/0CLUTCH COVER NUT£3.69 Add to
070123900113/0GUIDE BAR 16" Pitch 0.325" 1.3mm£38.02 Add to
071118801746/0CHAIN 16"-66E Pitch 0.325" Width 0.058"£42.53 Add to
079118804268/0Clutch Cover AssyN/A POA
