Housing 1

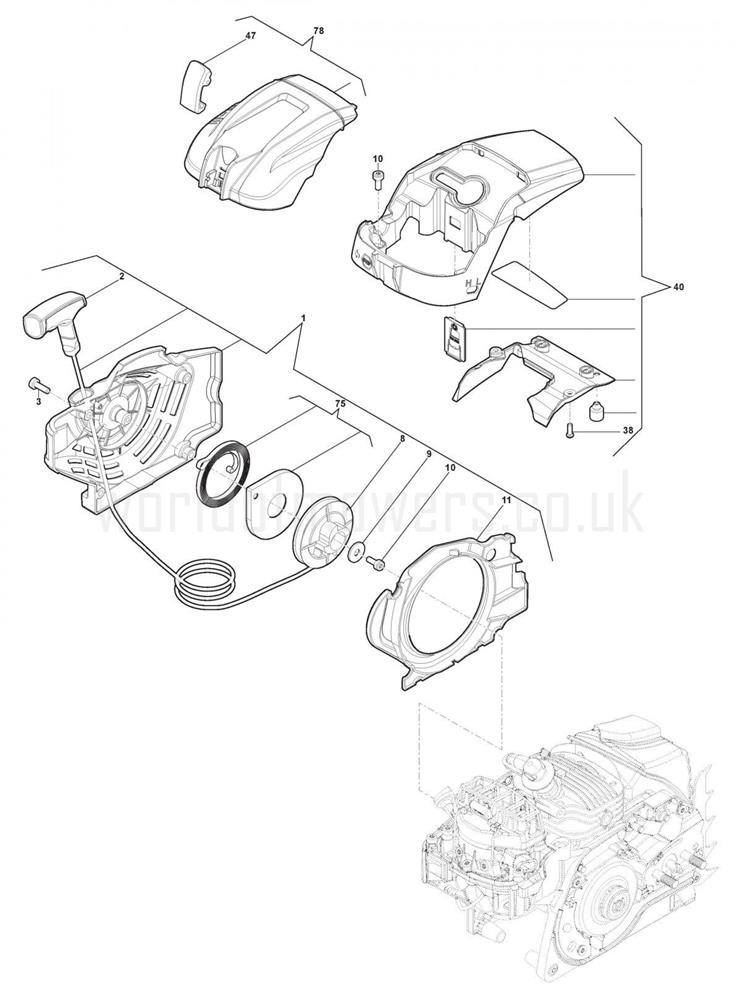

Housing 1 assembly details for Stiga SP 466 [240461602-S17] 2018 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118804246/1	RECOIL ASSEMBLY [YELLOW]	£35.67	Add to
001	118804563/1	RECOIL ASSEMBLY [WHITE]	£35.67	Add to
001	118804870/0	RECOIL ASSEMBLY [RED]	£35.67	Add to
002	118804245/0	STARTER HANDLE [YELLOW]	£5.46	Add to
002	118804559/0	RECOIL HANDLE [WHITE]	£5.46	Add to
002	118804866/0	RECOIL HANDLE [RED]	£5.46	Add to
003	2132550	SCREW TCCE M5 x 25	£1.79	Add to
008	118804243/1	RECOIL PULLEY	£3.69	Add to
009	112521330/0	WASHER M6 6.4 x 12 x 1.6	£2.06	Add to
010	112731601/0	SELF-TAP SCREW 4.8 x 16	£2.32	Add to
011	118804242/0	FLOW GUIDING COVER (OBSOLETE)	N/A
038	112728523/0	SELF-TAPPING SCREW TCB 4 x 12	£2.06	Add to
040	118804921/0	COVER ASSY	£26.18	Add to
047	118804215/0	LOCK	£2.06	Add to
075	118804385/0	RECOIL SPRING ASSEMBLY	£4.23	Add to
078	118804269/0	AIR FILTER COVER ASSEMBLY [YELLOW]	£17.04	Add to
078	118804566/0	AIR FILTER COVER [WHITE]	£17.04	Add to
078	118804872/0	AIR FILTER COVER [RED]	£17.04	Add to
