Engine 3

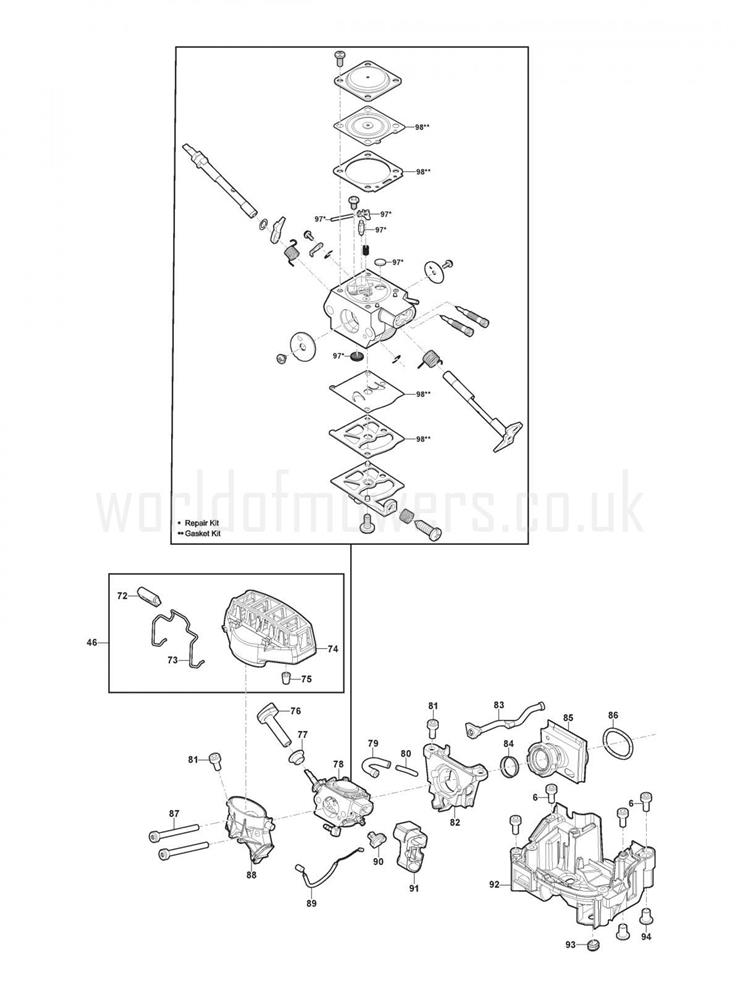

Engine 3 assembly details for Stiga SP 466 [240461602-S17] 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0062135040TORX SCREW M5 x 18£1.79 Add to
046118804926/0AIR FILTER ASSEMBLY£5.32 Add to
072118804282/0LOCK KNOB£1.79 Add to
073118804281/0LOCKING SPRING£1.50 Add to
074118804926/0AIR FILTER ASSEMBLY£5.32 Add to
075118804279/0ABSORBER BASE£1.79 Add to
076323315115/0CHOKE KNOB£1.79 Add to
077118804278/0CHOKE KNOB BUSH£1.58 Add to
078118804277/0CARBURETTOR£112.23 Add to
078118804927/0CARBURETTOR£109.10 Add to
079118804276/0VACUUM TUBE£2.87 Add to
080118804275/0COPPER TUBE£5.61 Add to
081112728519/0SELF-TAP SCREW TCB 5.5 x 16£1.79 Add to
081112731601/0SELF-TAP SCREW 4.8 x 16£2.32 Add to
082323784017/0CARBURETTOR SUPPORT£8.91 Add to
083118804274/0PRESSURE TUBE£5.71 Add to
084118804273/0SUPPORT RING£2.07 Add to
085118804271/0INTAKE PIPE£3.81 Add to
086118804264/0SPRING RING£1.58 Add to
0872135250TORX SCREW M5 x 55 (OBSOLETE) (OBSOLETE)N/A
088118804263/0AIR FILTER BASE£9.14 Add to
089118804262/0THROTTLE CABLE£6.27 Add to
090118804261/0THROTTLE CABLE REEL£1.58 Add to
091118804260/0L/H GUIDER£1.79 Add to
092118804259/0ISOLATION CHAMBER£6.92 Add to
093118804258/0GROMMET (OBSOLETE) (OBSOLETE)N/A
094118804257/0INSET BUSH£5.37 Add to
097118804526/0CARBURETTOR REPAIR KIT£17.86 Add to
098118804527/0CARBURETTOR GASKET KIT£26.18 Add to
