Housing 2

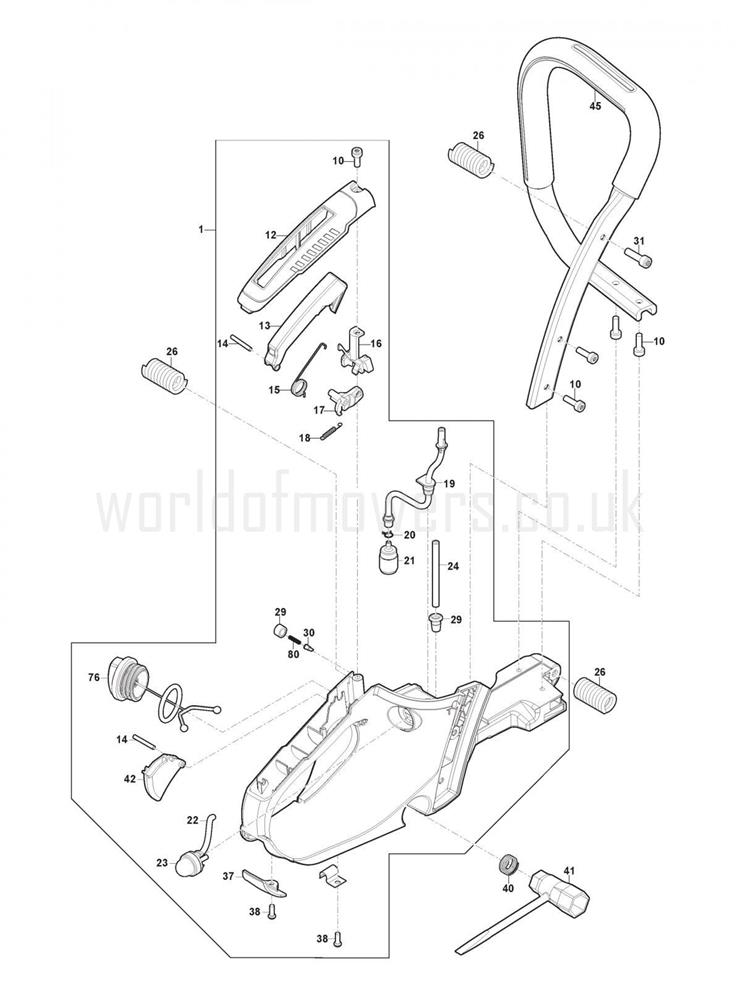

Housing 2 assembly details for Stiga SP 466 [240461502-S17] 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118804922/0HANDLE ASSY YELLOW£83.13 Add to
0032132550SCREW TCCE M5 x 25£1.79 Add to
010112731601/0SELF-TAP SCREW 4.8 x 16£2.32 Add to
012118804241/0REAR HANDLE COVER [YELLOW]£10.77 Add to
013118804240/0THROTTLE TRIGGER LOCK-OUT£2.18 Add to
014118804406/0DOWEL PIN£1.58 Add to
015118804239/0THROTTLE TRIGGER SPRING£1.79 Add to
016118804238/0GUIDER BASE£1.58 Add to
017118804237/0CONNECTING FITTING£1.58 Add to
018118804236/0THROTTLE TRIGGER SPRING£2.06 Add to
019118804235/0FUEL TUBE£7.11 Add to
020118804234/0CLIP£1.58 Add to
021118804911/0FUEL TUBE ASSY£16.22 Add to
022118804232/0PUMP PIPE 65mm (OBSOLETE) (OBSOLETE)N/A
023118804913/0PRIMER£6.23 Add to
024118804353/1FUEL TUBE£1.79 Add to
025118804229/0RETURN PIPE BASE£2.32 Add to
026118804925/0SPRING£4.75 Add to
029118804228/0VENT CAP£2.06 Add to
030118804227/0VENT VALVE£2.32 Add to
0312132180SCREW TCCE M6 x 25£1.79 Add to
037323059046/0BOTTOM COVER£2.06 Add to
038112728523/0SELF-TAPPING SCREW TCB 4 x 12£2.06 Add to
040118804222/0FIXTURE SPRING£2.00 Add to
041118804221/0SPARK PLUG WRENCH£4.23 Add to
042118804220/0THROTTLE TRIGGER£1.79 Add to
045118804217/0FRONT HANDLE£21.95 Add to
076118804307/0Tank Cap AssyN/A POA
080118804881/0SPRING£1.79 Add to
