Engine 2

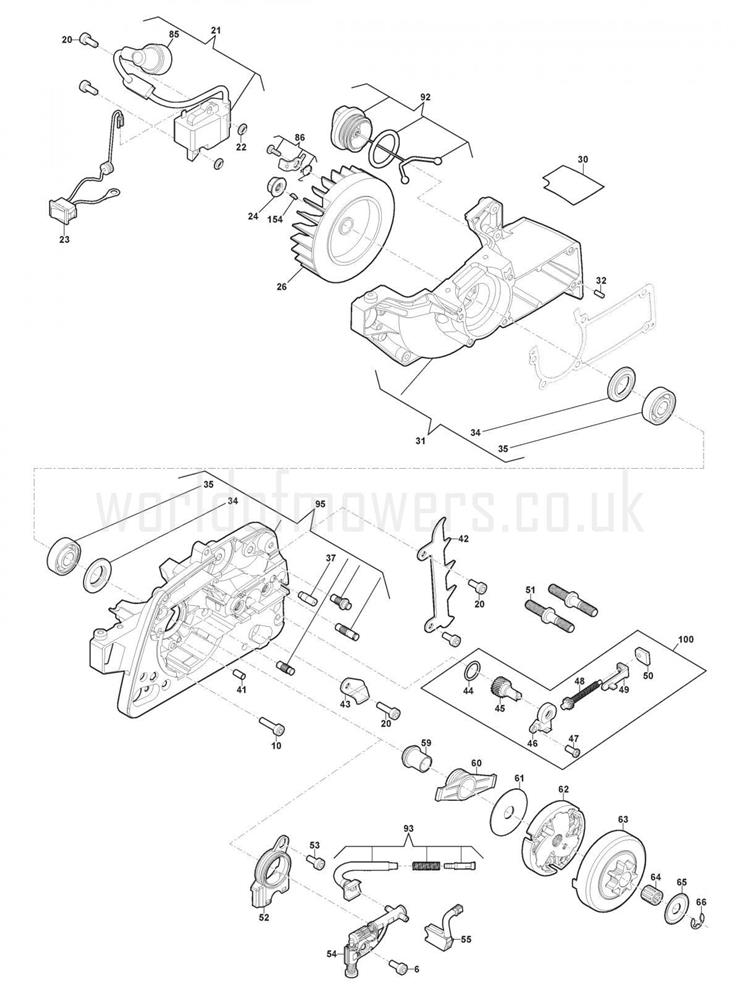

Engine 2 assembly details for Stiga SP 386 [240381402-S17] 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0062135180TORX SCREW M5 x 12£1.79 Add to
0102132550SCREW TCCE M5 x 25£1.79 Add to
0202135040TORX SCREW M5 x 18£1.79 Add to
021118804370/0IGNITION COIL£38.66 Add to
022118804369/0WASHER£1.50 Add to
023118804367/0SWITCH£5.45 Add to
024123120004/0FLYWHEEL NUT£4.01 Add to
026118804356/0FLYWHEEL£33.46 Add to
030118804366/0HEAT INSULATOR£2.06 Add to
031118804905/0LEFT CRANKCASE ASSY£56.15 Add to
032123753000/0PIN D=3 x 9£2.00 Add to
034118804364/0OIL SEAL£4.11 Add to
035118804363/0BALL BEARING£8.19 Add to
037118804587/0OIL SPRAY NOZZLE£2.59 Add to
041118801158/0PIN 5x10£1.79 Add to
042118804362/0SPIKE£4.52 Add to
043323059044/0CHAIN GUARD£2.47 Add to
044118804410/0O RING 7 x 2£3.64 Add to
045118804288/0TENSIONER GEAR£7.92 Add to
046118804361/0GEAR COVER£2.78 Add to
047112726389/0SCREW M4 X 12 (BLACK GALVANIZED)£2.06 Add to
048118804289/0TENSIONER SCREW£4.91 Add to
049118804907/0CHAIN TENSIONER£19.85 Add to
050118804285/0POSITION BLOCK£1.50 Add to
051118804358/0BOLT£2.87 Add to
052118804301/0OIL PUMP COVER£2.30 Add to
0532135020TORX SCREW M5 x 10£1.79 Add to
054118804300/0OIL PUMP£21.35 Add to
055118804299/0SPRAY NOZZLE£4.66 Add to
059118804357/0BUSH£2.47 Add to
060118804297/0WORM£3.64 Add to
061118804296/0CLUTCH WASHER£2.18 Add to
062118804295/0CLUTCH£15.13 Add to
063118804355/0CLUTCH DRUM£22.76 Add to
064118804511/0NEEDLE BEARING 10 x 14 x L13£7.63 Add to
065118804290/0ANTI-FRICTION WASHER£1.91 Add to
066112000955/0CIRCLIP D=8£1.79 Add to
085118804522/0SPARK PLUG COVER£10.56 Add to
086118804356/1FLYWHEEL - SP386/426/466/526£34.35 Add to
092118804307/0Tank Cap AssyN/A POA
093118804250/0OIL TUBE ASSEMBLY£7.23 Add to
095118804906/0RIGHT CRANKCASE ASSY£71.14 Add to
100118804907/0CHAIN TENSIONER£19.85 Add to
154123072005/0Flywheel Key£4.01 Add to
