CONTROLS

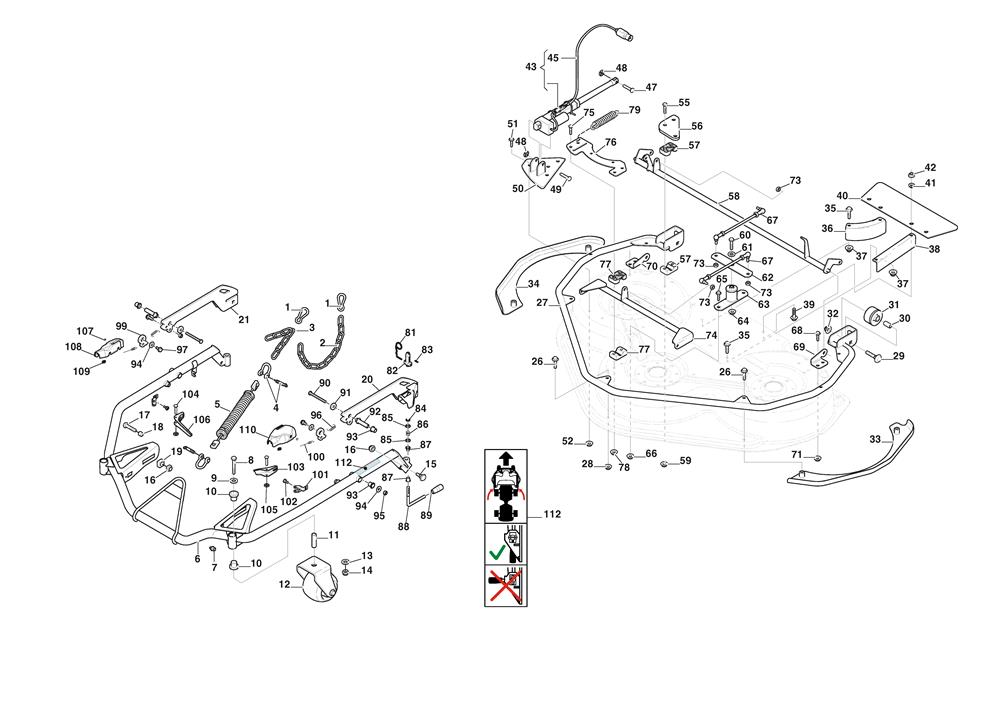

CONTROLS assembly details for Stiga PARK COMBI PRO 125 Q PLUS (2D6312521/ST2) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5528-01	SNAP HOOK	£4.52	Add to
002	1134-6368-03	CHAIN [12 LINKS]	£20.99	Add to
003	1134-6368-02	CHAIN [7 LINKS]	£24.95	Add to
004	1134-2629-01	LIFT LINK	£15.69	Add to
005	387432003/0	110/125 DECK LIFT SPRING	£47.97	Add to
006	387869269/0	DECK FRAME TUBE 110/125 QF	£622.19	Add to
007	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
008	112794970/0	HEX-HEAD SCREW M10 x 90	£3.15	Add to
009	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
010	137038009/0	WHEEL BUSH	£6.09	Add to
011	1134-5677-01	SPACER	£18.74	Add to
012	1134-5884-01	PIVOT WHEEL ASSEMBLY	£58.87	Add to
013	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
014	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
015	1134-0240-01	SCREW	£9.82	Add to
016	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
017	112793301/0	HEX-HEAD SCREW M8 x 25	£2.06	Add to
018	1134-5626-01	SPACER	£9.28	Add to
019	1134-7595-01	SPACER	£5.32	Add to
020	387773549/0	L/H DECK BRACKET 110/125 QF	£135.19	Add to
021	387773547/0	R/H DECK BRACKET 110/125 QF	£135.19	Add to
026	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
027	387869251/1	PROTECTION FRAME [ASTRAL GREY]	£470.41	Add to
028	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
029	9897-1060-12	SCREW M10 x 60	£3.28	Add to
030	1134-0041-04	BUSH	£11.46	Add to
031	1134-3434-01	ROLLER	£13.77	Add to
032	9739-1031-22	NUT M10	£2.32	Add to
033	387603353/0	WEAR PLATE L/H	£135.19	Add to
034	387603351/0	WEAR PLATE R/H	£135.19	Add to
035	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
036	1134-5554-02	GUIDE PLATE (CURVED)	£38.44	Add to
037	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
038	1134-5553-02	GUIDE PLATE (STRAIGHT)	£35.71	Add to
039	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
040	1134-5885-01	RUBBER FLAP	£11.98	Add to
041	1134-4185-01	FLANGE WASHER	£6.71	Add to
042	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
043	118001003/2	ELECTRIC LIFTER CD 110-125	£354.59	Add to
045	387149300/0	2 POLE FM MALE CONNECTOR ASSY L=835	£32.06	Add to
047	9646-0098-22	RIVET 8 x 32	£2.87	Add to
048	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
049	9646-0105-22	RIVET	£3.41	Add to
050	1134-5981-01	BRACKET ASSEMBLY	£33.94	Add to
051	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
052	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
055	112691200/0	HEX-HEAD SCREW M8 x 45	£2.06	Add to
056	1134-5471-01	BEARING PLATE-REAR	£20.04	Add to
057	1134-5469-01	BEARING HALF	£12.00	Add to
058	387000162/0	REAR AXLE (GREY)	£155.93	Add to
059	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
060	112692050/0	HEX-HEAD SCREW	£1.91	Add to
061	1134-5127-01	WASHER	£4.52	Add to
062	1134-5855-01	PIVOT ARM	£34.35	Add to
063	387204001/0	PIVOT BRACKET 110/125	£32.29	Add to
064	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
065	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
066	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
067	387000312/0	PUSH ROD	£63.45	Add to
068	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
069	387773615/0	L/H BRACKET	£19.39	Add to
070	387773613/0	R/H BRACKET	£19.39	Add to
071	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
073	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
074	387000163/0	FRONT DECK AXLE (GREY)	£87.73	Add to
075	112691200/0	HEX-HEAD SCREW M8 x 45	£2.06	Add to
076	337546673/0	FRONT BEARING PLATE	£34.35	Add to
077	1134-5469-01	BEARING HALF	£12.00	Add to
078	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
079	1134-5847-01	SPRING	£19.90	Add to
081	137430114/0	SPRING CLIP CD110/125QF	£11.59	Add to
082	137510327/2	DECK PIN 110/125 QF	£16.22	Add to
083	112642450/0	SPRING PIN D=3 x 14	£1.79	Add to
084	112000955/0	CIRCLIP D=8	£1.79	Add to
085	325670008/1	ANTI-FRICTION WASHER 10.8 x 19 x 0.8	£2.06	Add to
086	122430210/0	SPRING	£2.06	Add to
087	325038009/0	BUSH	£2.18	Add to
088	137315013/0	HEIGHT ADJUST LEVER 110/125 QF	£9.78	Add to
089	137394204/0	HEIGHT ADJUST KNOB 110/125 QF	£5.29	Add to
090	112692050/0	HEX-HEAD SCREW	£1.91	Add to
091	125670007/0	FIXING WASHER	£2.06	Add to
092	137510325/0	FULCRUM PIN 110/125 QF	£16.22	Add to
093	137038011/0	BUSH	£3.72	Add to
094	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
095	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
096	137430113/0	TRACTION SPRING	£5.87	Add to
097	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
099	337022757/0	RATCHET PAWL 95/100/105QF	£17.45	Add to
100	187000221/0	UNLOCK COMMAND CABLE 110/125 QF	£23.31	Add to
101	337785055/0	DECK LEVER SUPPORT 110/125 QF	£3.41	Add to
102	9893-0616-16	SCREW M6 x 16	£2.47	Add to
103	337315011/0	L/H DECK UNLOCK LEVER 110/125 QF	£5.87	Add to
104	112400031/0	PIN D=5	£2.06	Add to
105	112604897/0	STARLOCK WASHER D=5	£2.06	Add to
106	337315010/0	R/H DECK UNLOCK LEVER 110/125 QF	£5.87	Add to
107	337120284/0	HOOK COVER CAP	£2.74	Add to
108	337600041/1	R/H HOOK DECK COVER	£10.81	Add to
109	337505501/1	CABLE GUIDE	£1.90	Add to
110	337600042/1	L/H HOOK DECK COVER	£11.21	Add to
111	137430119/0	SPRING CLIP	£16.80	Add to
112	114370658/0	SIDE LEVER DECLA CD110/125 QF	£4.91	Add to
