TRANSMISSION AND BLADES

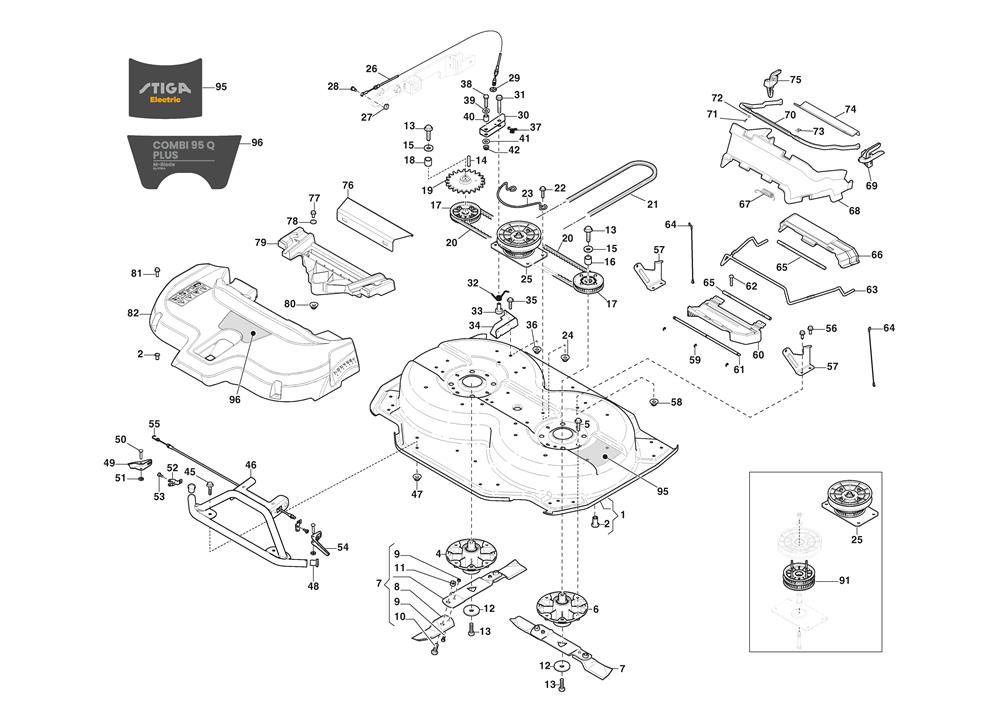

TRANSMISSION AND BLADES assembly details for Stiga PARK COMBI 95 Q PLUS (2D6209521/ST2) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387561531/1DECK CASING 95C (GREY)£498.96 Add to
0021134-5595-01BLIND RIVET NUT£8.32 Add to
004387203001/0LONG BLADE SHAFT ASSEMBLY£123.25 Add to
0059945-0825-16SCREW M6SF M8 x 25£2.32 Add to
006387203000/0SHORT BLADE SHAFT ASSEMBLY£115.14 Add to
0071134-9117-01BLADE BAR ASSEMBLY-95C [2 PCS]£109.88 Add to
0081134-9119-01BLADE TIP KIT [2 PCS]£35.15 Add to
0091134-9054-01SHEAR BOLT KIT [6 x Bolts & Nuts]£8.84 Add to
0101134-6311-01BOLT 7/16" UNF£3.24 Add to
0111134-6312-01LOCK NUT 7/16" UNF£2.87 Add to
0121134-6211-01BLADE WASHER£3.55 Add to
013112692395/2SCREW M10 x 60£3.49 Add to
0149600-0171-01FLAT KEY 6 x 6 x 25mm£3.55 Add to
0151134-5406-01WASHER M10 10.5 x 35 x 5£4.23 Add to
0161134-5400-04SPACER£5.32 Add to
0171134-9127-01TOOTHED BELT PULLEY [2 PCS]£47.48 Add to
0181134-5400-05Spacer£7.10 Add to
019387178803/0BlackZ BRAKE DISK CD95/105QF ASSY£75.23 Add to
0201134-9198-01TOOTHED BELT (PARK 95CD)£30.78 Add to
0201134-9198-02TOOTHED BELT [95C]£47.97 Add to
0211134-9147-01DECK DRIVE BELT [KEVLAR]£50.70 Add to
0211134-9241-01PTO BELT (2WS PARK 95 CD)£63.13 Add to
0211134-9246-01PTO BELT (4WD PARK 95CD)£47.65 Add to
0229959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0231134-6431-01BELT GUIDE£16.91 Add to
024112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
025387605029/0DOUBLE TOOTHED PULLEY ASSEMBLY [95C]£167.32 Add to
026187000216/0BRAKE CABLE ASSY CD95/105QF£34.35 Add to
027112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
028125510048/1FIXING PIN£2.32 Add to
029112604896/0STARLOCK WASHER D=6£2.06 Add to
030337315009/0BRAKE LEVER£9.55 Add to
0319960-0860-12SCREW M8 x 60£2.32 Add to
032137430111/0BRAKE BLADE SPRING 110/125 QF£8.45 Add to
033137510326/0BRAKE FULCRUM PIN 110/125 QF£14.58 Add to
034337785043/1BRAKE SUPPORT PLATE£17.86 Add to
0359959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
036112155015/0SELF-GRIP NUT M8(FROM 1ST SEPT 2015)£2.06 Add to
037137430112/1BRAKE TRACTION SPRING£9.14 Add to
038112691120/0HEX-HEAD SCREW M8x40 8.8+T.150 RED£2.32 Add to
039112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0401134-1565-04SPACER£9.62 Add to
041112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
042112155015/0SELF-GRIP NUT M8(FROM 1ST SEPT 2015)£2.06 Add to
045112800815/0SCREW TE FL M8 x 16£2.06 Add to
046387869279/0FRONT GUARD TUBE [GREY]£113.39 Add to
047112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
0489403-0025-80END PLUG [GREY]£2.87 Add to
049337315011/0L/H DECK UNLOCK LEVER 110/125 QF£5.87 Add to
050112400031/0PIN D=5£2.06 Add to
051112604897/0STARLOCK WASHER D=5£2.06 Add to
052337785055/0DECK LEVER SUPPORT 110/125 QF£3.41 Add to
0539893-0616-16SCREW M6 x 16£2.47 Add to
054337315010/0R/H DECK UNLOCK LEVER 110/125 QF£5.87 Add to
055187000215/0UNLOCK COMMAND CABLE 95/105QF£19.22 Add to
056112800815/0SCREW TE FL M8 x 16£2.06 Add to
057387773577/0BP CD95/105QF STOP ROTATION BRACKET£8.60 Add to
058112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
059112000930/0CIRCLIP D=6£0.79 Add to
060337060046/0PROTECTION COVER 95/100/105 QF£9.69 Add to
061137294107/0BELT GUIDE CD95/105QF£13.64 Add to
062112728696/0SELF-TAPPING SCREW 4 x 12£2.06 Add to
063137785059/0SUPPORT ROD 110/125 QF£50.22 Add to
064187000220/0TEXTILE CABLE ASSY CD95/105-100QF£16.78 Add to
0651137-1090-01BELT GUIDE ROD£15.06 Add to
066337060032/0PROTECTION COVER 110/125 QF£8.04 Add to
067137430118/0SPRING FOR ISO PROT. CD95/105-100QF£4.91 Add to
068137798001/0PROTECTION GUARD 110/125 QF£53.42 Add to
069337033021/0L/H CLAMP£3.55 Add to
070337785062/0UPPER SUPPORT£8.87 Add to
073112437509/0FIXING PLATE£2.81 Add to
074337785057/0SUPPORT PLATE 110/125 QF£35.71 Add to
075337033020/0R/H CLAMP£3.55 Add to
0761134-6103-01WEAR PROTECTION PLATE£35.71 Add to
076125943011/0SCREW£9.82 Add to
077112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
077112800815/0SCREW TE FL M8 x 16£2.06 Add to
0781134-4185-01FLANGE WASHER£6.71 Add to
079337060045/0REAR PROTECTION COVER 95/105QF£19.77 Add to
080112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
0819945-0825-16SCREW M6SF M8 x 25£2.32 Add to
082387106368/0TRANSMISSION COVER ASSY CD95 QF£46.61 Add to
091387605027/0DOUBLE TOOTHED PULLEY ASSEMBLY£55.89 Add to
095114368564/1DECAL "STIGA ELECTRIC"£9.82 Add to
096114373127/0DECAL "COMBI 95 QPLUS" M-BLADE STIGA£8.92 Add to
