CONTROLS

CONTROLS assembly details for Stiga PARK COMBI 95 Q DECK (2D5809521/ST2) 2023 model

Parts list

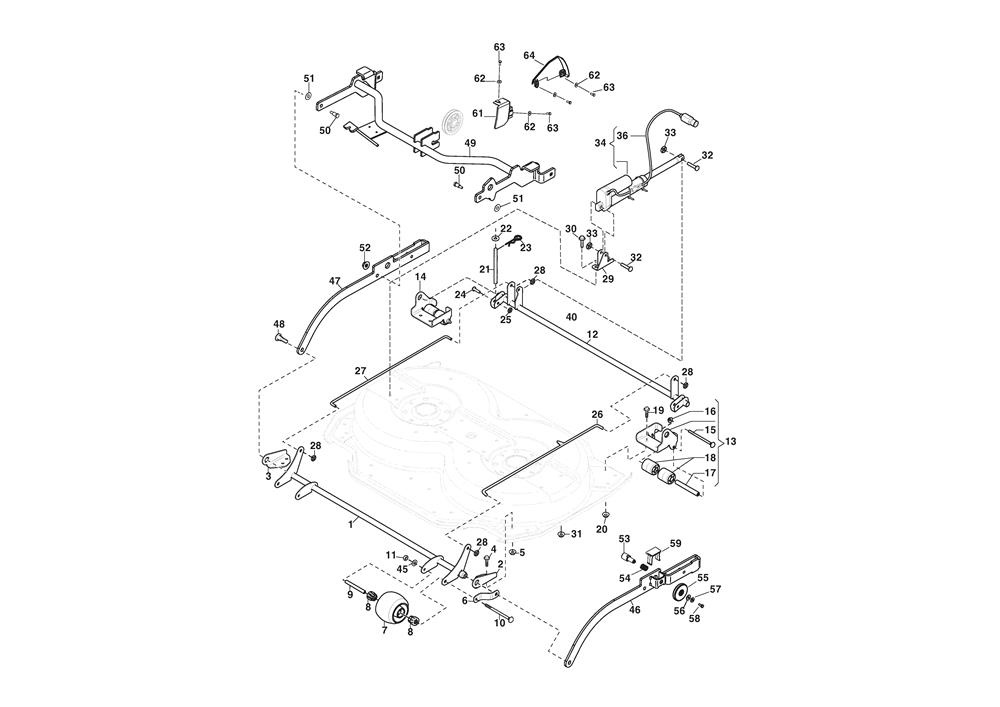

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387000160/0FRONT DECK AXLE (GREY)£99.68 Add to
002387773609/0FRONT L/H BRACKET (GREY)£12.44 Add to
003387773607/0FRONT R/H BRACKET (GREY)£12.44 Add to
004112800815/0SCREW TE FL M8 x 16£2.06 Add to
005112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
006387318275/0LEVER ARM£4.35 Add to
0071134-4284-01WHEEL£32.99 Add to
0081134-4319-01PLASTIC BUSH£7.10 Add to
0091134-4318-01SPACER TUBE£10.50 Add to
0109897-0813-02SCREW M8 x 130£5.06 Add to
011112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
012387000161/0REAR DECK AXLE (GREY)£83.51 Add to
0131134-6282-01ROLLER ASSEMBLY L/H£57.52 Add to
0141134-6282-02ROLLER ASSEMBLY R/H£57.52 Add to
0159897-0813-02SCREW M8 x 130£5.06 Add to
016112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
0171134-4318-01SPACER TUBE£10.50 Add to
0181134-9126-01SUPPORT ROLLERS [2 PCS]£50.75 Add to
019112800815/0SCREW TE FL M8 x 16£2.06 Add to
020112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
021137510321/0DECK BRACKET PIN£8.32 Add to
022112521390/0WASHER M16 17 x 30 x 3£1.91 Add to
0239598-2001-02SPRING PIN£5.19 Add to
0249646-0098-22RIVET 8 x 32£2.87 Add to
025112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
026387000311/0PUSH ROD L/H HEIGHT ADJUST£39.80 Add to
027137033107/0PUSH ROD R/H£24.95 Add to
028112604903/0STARLOCK WASHER D=10£2.06 Add to
0291134-6192-01BRACKET£11.05 Add to
030112800815/0SCREW TE FL M8 x 16£2.06 Add to
031112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
0329646-0098-22RIVET 8 x 32£2.87 Add to
033112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
034118001004/2ELECTRIC LIFTER CD 95-100-105£335.96 Add to
036387149301/0ACTUATOR CABLE L=490£23.72 Add to
045112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
046387785237/0MOWER DECK ARM LH 95 [GREY]£116.11 Add to
047387106281/0MOWER DECK ARM RH 95 [GREY]£117.47 Add to
0481134-6279-01SHOULDER BOLT£2.74 Add to
049387800021/2REAR AXLE [ASTRAL GREY]£436.34 Add to
050137510305/1SHOULDER BOLT£5.52 Add to
051322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
052112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
053137510306/0SPRING GUIDE PIN£8.19 Add to
054137430104/0DECK SPRING£4.52 Add to
055337394207/0QF FM-CD ROTATION RELEASE KNOB£6.27 Add to
056112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
057112582100/0LOCK WASHER M6£2.06 Add to
058112727807/0SCREW TCB TORX M6 x 16£2.81 Add to
059337110339/1KNOB LOCKING PLATE£5.62 Add to
061337060026/0BACK SIDE COVER 85-95 DECK£6.95 Add to
062112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
0639893-0616-16SCREW M6 x 16£2.47 Add to
