CONTROLS

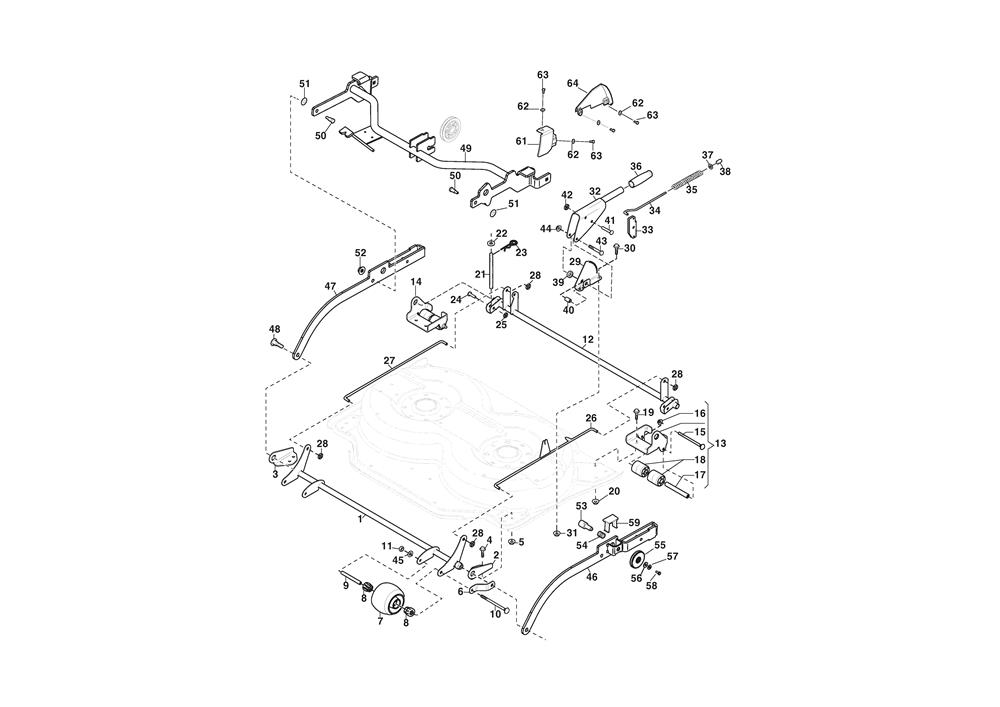

CONTROLS assembly details for Stiga PARK COMBI 85 M Q (2D5808511/ST2) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	387000160/0	FRONT DECK AXLE (GREY)	£99.68	Add to
002	387773609/0	FRONT L/H BRACKET (GREY)	£12.44	Add to
003	387773607/0	FRONT R/H BRACKET (GREY)	£12.44	Add to
004	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
005	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
006	387318275/0	LEVER ARM	£4.35	Add to
007	1134-4284-01	WHEEL	£32.99	Add to
008	1134-4319-01	PLASTIC BUSH	£7.10	Add to
009	1134-4318-01	SPACER TUBE	£10.50	Add to
010	9897-0813-02	SCREW M8 x 130	£5.06	Add to
011	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
012	387000161/0	REAR DECK AXLE (GREY)	£83.51	Add to
013	1134-6282-01	ROLLER ASSEMBLY L/H	£57.52	Add to
014	1134-6282-02	ROLLER ASSEMBLY R/H	£57.52	Add to
015	9897-0813-02	SCREW M8 x 130	£5.06	Add to
016	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
017	1134-4318-01	SPACER TUBE	£10.50	Add to
018	1134-9126-01	SUPPORT ROLLERS [2 PCS]	£50.75	Add to
019	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
020	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
021	137510321/0	DECK BRACKET PIN	£8.32	Add to
022	112521390/0	WASHER M16 17 x 30 x 3	£1.91	Add to
023	9598-2001-02	SPRING PIN	£5.19	Add to
024	9646-0098-22	RIVET 8 x 32	£2.87	Add to
025	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
026	387000309/0	PUSH ROD L/H HEIGHT ADJUST	£39.80	Add to
027	137033105/0	PUSH ROD R/H	£24.95	Add to
028	112604903/0	STARLOCK WASHER D=10	£2.06	Add to
029	1137-0259-01	HEIGHT ADJUST QUADRANT	£22.63	Add to
030	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
031	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
032	387318273/0	HEIGHT ADJUST LEVER [GREY]	£44.79	Add to
033	1134-6254-01	CATCH	£10.79	Add to
034	1134-5444-01	PUSH ROD	£14.45	Add to
035	1134-5445-01	SPRING	£17.18	Add to
036	1134-5503-01	HANDLE	£27.27	Add to
037	9699-0087-02	WASHER 5.3 x 16 x 2	£2.47	Add to
038	1134-3051-01	LOCKING KNOB	£9.54	Add to
039	1134-6286-03	SPACER	£2.18	Add to
040	9646-0105-22	RIVET	£3.41	Add to
041	9646-0105-22	RIVET	£3.41	Add to
042	9672-0006-02	STARLOCK WASHER	£2.32	Add to
043	112691400/0	HEX-HEAD SCREW M8 X 50	£1.76	Add to
044	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
045	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
046	387785233/0	MOWER DECK ARM LH 85 [GREY]	£116.11	Add to
047	387106279/0	MOWER DECK ARM RH 85 [GREY]	£124.82	Add to
048	1134-6279-01	SHOULDER BOLT	£2.74	Add to
049	387800021/2	REAR AXLE [ASTRAL GREY]	£436.34	Add to
050	137510305/1	SHOULDER BOLT	£5.52	Add to
051	322672151/0	ANTI-FRICTION WASHER 12.2 x 30 x 0.8	£1.91	Add to
052	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
053	137510306/0	SPRING GUIDE PIN	£8.19	Add to
054	137430104/0	DECK SPRING	£4.52	Add to
055	337394207/0	QF FM-CD ROTATION RELEASE KNOB	£6.27	Add to
056	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
057	112582100/0	LOCK WASHER M6	£2.06	Add to
058	112727807/0	SCREW TCB TORX M6 x 16	£2.81	Add to
059	337110339/1	KNOB LOCKING PLATE	£5.62	Add to
061	337060026/0	BACK SIDE COVER 85-95 DECK	£6.95	Add to
062	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
063	9893-0616-16	SCREW M6 x 16	£2.47	Add to
