TRANSMISSION - KTM10M

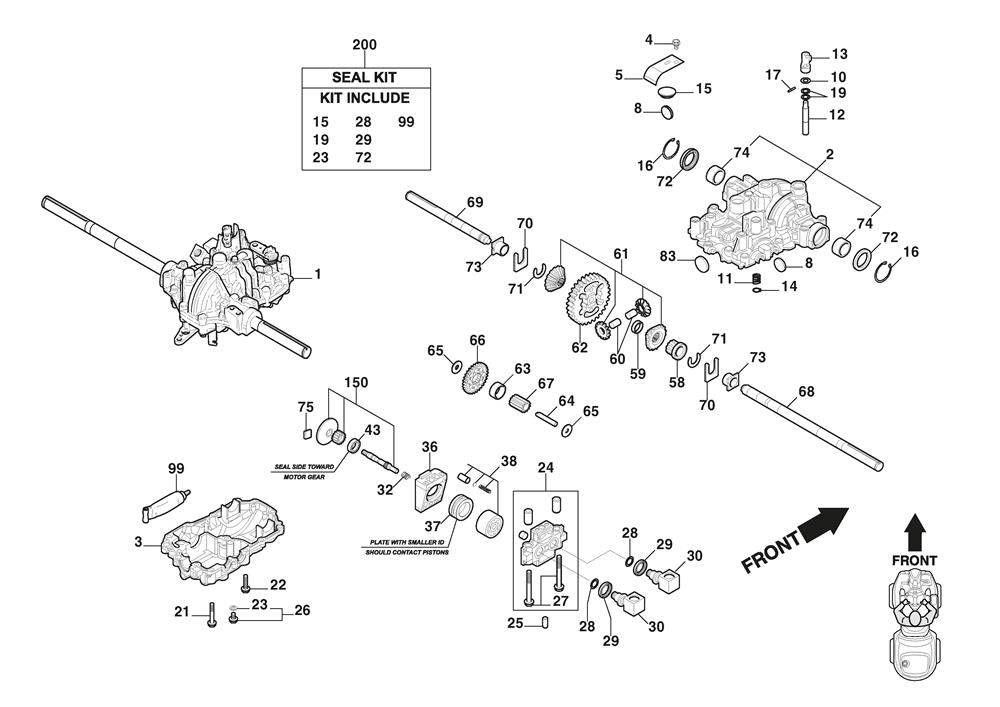

TRANSMISSION - KTM10M assembly details for Stiga PARK 700 WX (2F6230745/ST2) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118400996/1	FRONT TRANSAXLE (KTM10M)	£991.92	Add to
002	1139-1417-01	UPPER HOUSING	£814.79	Add to
003	1139-1418-01	LOWER HOUSING	£247.25	Add to
004	1139-1733-01	FLANGE BOLT M8 x 12	£1.50	Add to
005	1139-1384-01	SKID PLATE	£17.81	Add to
008	1139-1150-01	MAGNET	£8.23	Add to
010	1139-1388-01	WASHER	£4.97	Add to
013	1139-1189-01	BY-PASS LEVER	£9.19	Add to
016	1139-1444-01	CIRCLIP	£7.57	Add to
019	1139-1114-01	O RING	£4.80	Add to
021	1139-1741-01	FLANGE BOLT M8 X 45	£4.80	Add to
023	1139-1103-01	SEAL WASHER	£6.31	Add to
024	1139-1419-02	CENTER CASE	£706.43	Add to
026	1139-1500-01	DRAIN BOLT KIT	£6.59	Add to
027	1139-1449-01	BOLT	£4.52	Add to
028	1139-1446-01	O RING	£6.25	Add to
029	1139-1447-01	SEAL	£17.51	Add to
030	1139-1737-01	CONNECTOR	£249.48	Add to
032	1139-1245-01	PUMP SPRING	£4.80	Add to
036	1139-1504-01	MOTOR HOUSING	£81.95	Add to
037	1139-1438-01	BEARING	£115.86	Add to
038	1139-2752-01	CYLINDER BLOCK KIT	£297.96	Add to
043	1139-1453-01	BEARING	£18.75	Add to
058	1139-1330-01	COLLAR	£20.62	Add to
059	1139-1435-01	COLLAR	£29.67	Add to
060	1139-1440-01	PIN	£5.66	Add to
061	1139-2743-01	DIFFERENTIAL GEAR KIT	£103.14	Add to
062	1139-1429-01	FINAL GEAR	£487.44	Add to
064	1139-1256-01	REDUCTION SHAFT	£14.69	Add to
065	1139-1398-01	WASHER	£5.21	Add to
067	1139-1361-01	FINAL PINION GEAR	£25.15	Add to
068	1139-1432-01	R/H AXLE SHAFT L=518MM	£628.73	Add to
069	1139-1431-01	L/H AXLE SHAFT	£388.53	Add to
070	1139-1194-01	THRUST WASHER	£10.04	Add to
071	1139-1155-01	RING	£3.27	Add to
072	1139-1044-01	SEAL 25.4428	£23.04	Add to
073	1139-1156-01	BUSH	£9.40	Add to
074	1139-1415-01	BUSH (25.4)	£9.47	Add to
075	1139-1260-01	BRAKE SHOE	£2.18	Add to
083	1139-1450-01	SEALING CAP	£23.31	Add to
099	1139-1443-01	SEALANT (TUBE)	£38.16	Add to
150	1139-2696-01	MOTOR SHAFT KIT	£60.75	Add to
200	1139-1436-01	SEAL KIT	£115.86	Add to
