ENGINE - STIGA ST 550 TWIN

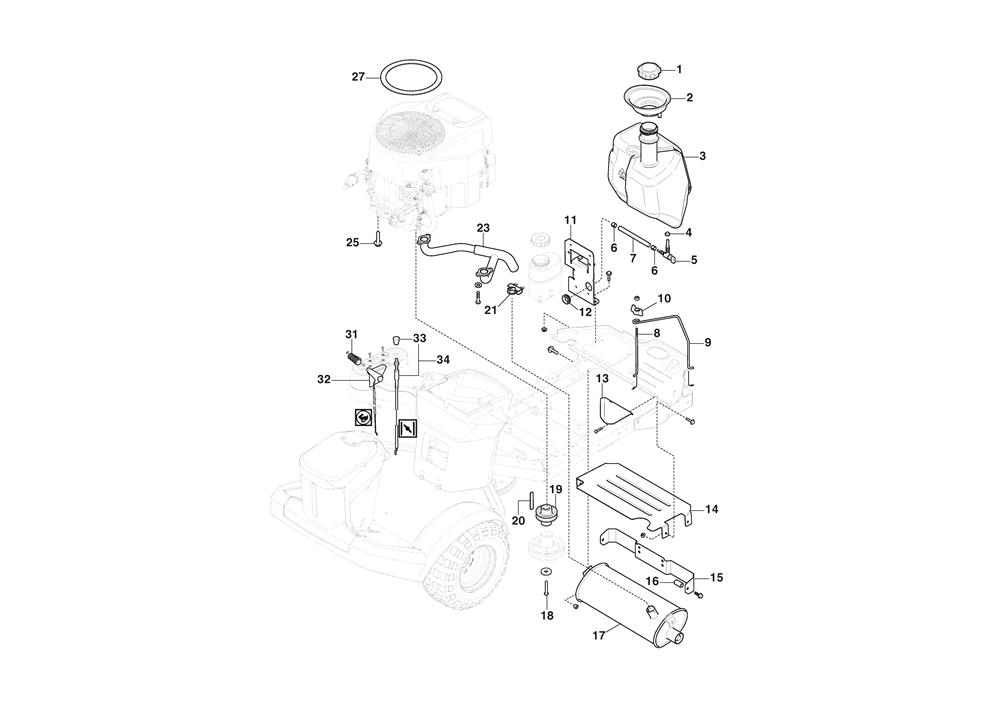

ENGINE - STIGA ST 550 TWIN assembly details for Stiga PARK 500 WX (2F6130645/ST2) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	125795001/1	FUEL TANK CAP	£8.32	Add to
001	137793051/0	FUEL TANK CAP	N/A	POA
002	337207106/0	REAR FUEL TANK COVER [BLACK]	£6.68	Add to
003	337735115/0	FUEL TANK [12 LITRES]	£132.33	Add to
004	337260156/0	GROMMET	£8.84	Add to
005	1134-3224-01	FUEL SHUT-OFF VALVE	£24.95	Add to
005	118563206/0	FUEL SHUT-OFF VALVE (LONCIN)	N/A	POA
006	9578-0023-02	HOSE CLAMP	£5.73	Add to
007	1134-2975-15	FUEL HOSE (L=1400)	£32.99	Add to
008	1134-5996-01	TANK LOOP	£7.10	Add to
009	1134-5942-01	TANK LOOP	£9.54	Add to
010	1134-4481-02	WING NUT	£6.14	Add to
012	1134-3203-01	GROMMET	£5.60	Add to
013	1134-6234-01	HEAT DEFLECTOR	£17.86	Add to
014	1134-6251-01	HEAT DEFLECTOR	£39.80	Add to
015	9959-0612-16	SCREW M6SF M6 x 12 TL	£1.79	Add to
016	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
017	187751507/0	MUFFLER ASSY	£342.17	Add to
018	112737315/0	THREADED SCREW 7/16" x 2½" 20 UNF	£6.27	Add to
019	1134-6139-01	ENGINE BELT PULLEY	£85.54	Add to
020	9600-0251-00	KEY L=3/4"	£4.91	Add to
021	9578-0011-01	TUBE CLAMP	£14.58	Add to
022	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
023	387869535/0	EXHAUST PIPE V-TWIN	£160.41	Add to
025	112735108/1	TELF-FORM SCREW 3/8" X 1¼" UNC	£2.57	Add to
026	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
027	125730031/0	INTAKE SEPARATOR STIGA	£32.99	Add to
028	125943012/0	FLANGED SCREW M4 x 10 WZ	£2.06	Add to
029	112726388/0	CROSS-HEAD SCREW M4X12	£2.06	Add to
030	112290800/0	HEXAGON NUT M4 UNI 5588 ACC.6S	£2.06	Add to
031	325592000/1	LEVER KNOB	£2.32	Add to
032	187000223/0	THROTTLE CABLE	£44.84	Add to
033	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
034	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
035	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
036	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
037	9945-0825-16	SCREW M6SF M8 x 25	£2.32	Add to
038	387602503/0	HEAT PROTECTION GUARD	£54.79	Add to
039	1134-1565-09	SPACER	£13.90	Add to
040	1134-4338-01	CHOKE CONTROL BUTTON	£15.81	Add to
041	137090202/0	CHOKE CONTROL CABLE	£24.19	Add to
