BODY

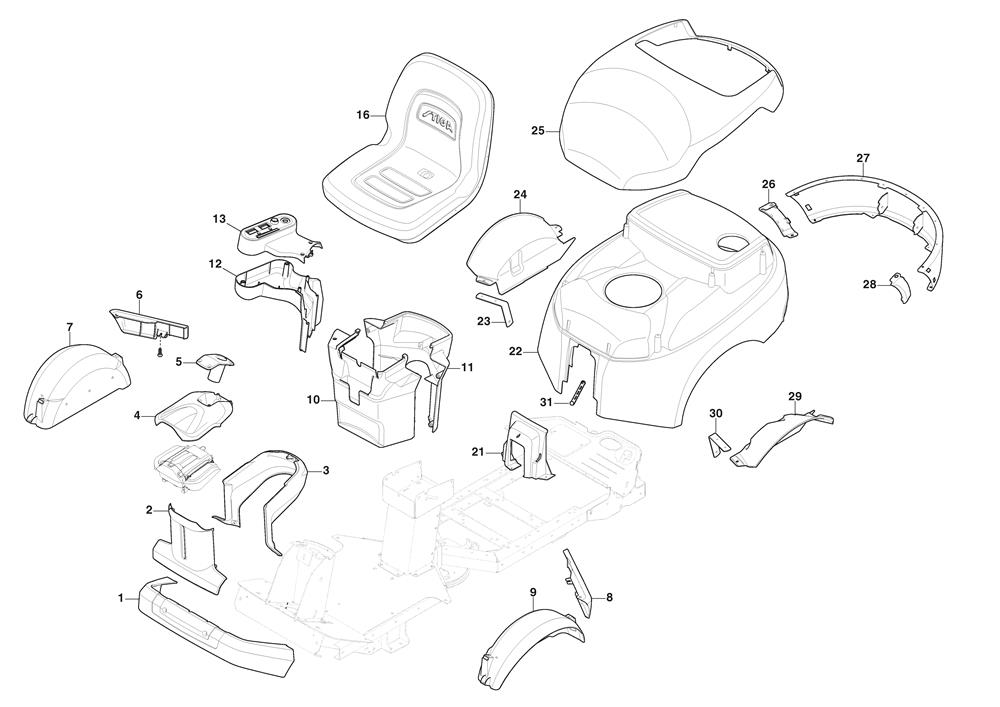

BODY assembly details for Stiga PARK 500 W (2F6120645/ST2) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001337502507/0FRONT BUMPER [GREY]£45.26 Add to
002337110379/0FRONT STEERING COLUMN COVER [GREY]£18.18 Add to
003337110380/0REAR STEERING COLUMN COVER [GREY]£19.25 Add to
004337110381/0UPPER STEERING COLUMN COVER [GREY]£20.85 Add to
005337207108/0STEERING COLUMN COVER [GREY]£6.15 Add to
006337110331/0LEFT MOULDING [GREY]£57.15 Add to
007337491250/0RIGHT FRONT MUDGUARD [GREY]£117.47 Add to
008337110332/0RIGHT MOULDING [GREY]£54.79 Add to
009337491251/0LEFT FRONT MUDGUARD [GREY]£110.66 Add to
010337110378/0L/H SEAT SUPPORT COVER [GREY]£30.75 Add to
011337110382/0R/H SEAT SUPPORT COVER [GREY]£25.39 Add to
012337110383/0LOWER ARM REST COMMAND COVER [GREY]£52.13 Add to
013337110384/0UPPER ARM REST COMMAND COVER [GREY]£50.80 Add to
015112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
016112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
0171134-6078-01FLANGE WASHER£5.87 Add to
018137722604/0SEAT [VILLA/PC/PCH]£338.69 Add to
0209893-0616-16SCREW M6 x 16£2.47 Add to
0211134-6241-01HOOD SUPPORT£42.53 Add to
022337076807/0ENGINE HOOD [GREY]£287.40 Add to
0231134-4012-03RIGHT BRACKET£18.82 Add to
024337491256/0INNR MUDGUARD R/H (PARK)£102.93 Add to
025337110373/0UPPER REAR BONNET COVER [YELLOW]£89.56 Add to
026337109531/0REAR BUMPER END COVER R/H£4.37 Add to
027387457001/0REAR BUMPER£287.40 Add to
028337109532/0REAR BUMPER END COVER L/H£4.37 Add to
029337491257/0INNER MUDGUARD L/H (PARK)£102.93 Add to
0301134-4012-04LEFT BRACKET£18.82 Add to
0311134-9028-01RUBBER STRAP (3 PCS)£26.46 Add to
0321139-0011-01SPEED NUT PLATE-ARM RESTS£3.55 Add to
0331139-0010-01SCREW-ARM RESTS£3.81 Add to
034387185100/1ARM RESTS KIT£218.68 Add to
0359946-0525-16SCREW M5 x 25£2.47 Add to
036112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
0379893-0616-16SCREW M6 x 16£2.47 Add to
0399893-0616-16SCREW M6 x 16£2.47 Add to
0401134-4176-01CLIP£5.19 Add to
0419945-0816-16SCREW M8 X 16£2.54 Add to
042112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0431137-0088-01SUPPORT PLATE£2.74 Add to
044112815200/0SCREW TTDQ M6X16£2.06 Add to
045112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
046112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
047112735594/0HEX-HEAD SCREW M6 x 30£2.06 Add to
048112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
0499893-0616-16SCREW M6 x 16£2.47 Add to
050112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
051112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
052112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
0539893-0616-16SCREW M6 x 16£2.47 Add to
0549943-0516-16SCREW£2.40 Add to
055112437503/0LOCK PLATE£2.06 Add to
