ELECTRICAL PARTS

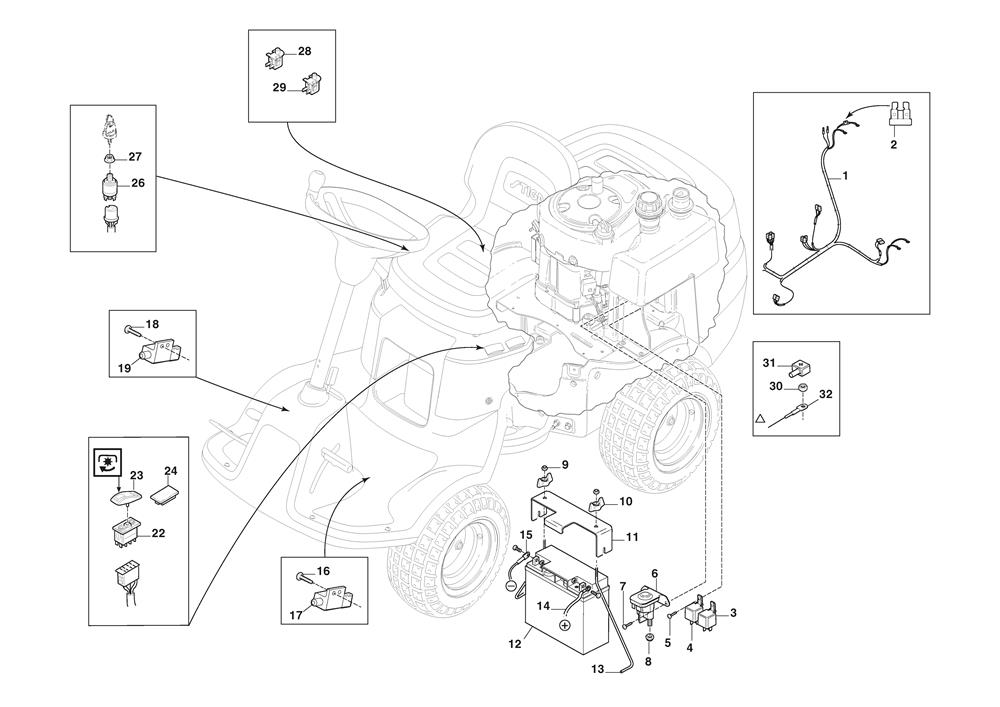

ELECTRICAL PARTS assembly details for Stiga PARK 300M (2F5820241/ST1P) 2022 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	187040306/0	WIRING LOOM	£225.12	Add to
002	1134-3496-06	FUSE 20A	£2.06	Add to
003	1134-2871-03	STARTER RELAY [5 SPADE]	£45.26	Add to
004	1134-2871-01	DECK RELAY [4 SPADE]	£45.26	Add to
005	9943-0516-16	SCREW	£2.40	Add to
006	118736112/0	SOLENOID	£39.80	Add to
007	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
008	9743-5121-32	LOCK NUT 5/16"	£1.79	Add to
009	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
010	1134-4481-02	WING NUT	£6.14	Add to
011	1137-1056-01	BATTERY PLATE	£26.18	Add to
012	118120068/0	BATTERY 12V 18AH ( No Returns On This Item )	£110.39	Add to
013	1137-1057-01	BATTERY LOOP	£8.84	Add to
014	1134-0234-02	BATTERY CABLE (+)	£24.95	Add to
015	1134-2167-02	CABLE (-)	£20.58	Add to
016	9943-0516-16	SCREW	£2.40	Add to
017	1134-3399-02	SWITCH	£45.26	Add to
018	9943-0516-16	SCREW	£2.40	Add to
019	1134-3399-01	SWITCH	£45.26	Add to
022	9400-0282-01	SWITCH C/W DIODE No returns on this item	£76.59	Add to
023	9400-0343-01	SWITCH COVER-PTO	£9.28	Add to
024	1134-4129-01	COVER	£6.14	Add to
026	1134-4093-01	IGNITION SWITCH	£67.05	Add to
027	1134-4749-01	NUT	£5.05	Add to
028	1134-3156-02	SEAT SWITCH [GREY]	£47.97	Add to
029	1134-3156-01	SEAT SWITCH [BLACK]	£45.26	Add to
030	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
031	118564864/1	RED RUBBER TERMINAL COVER	£6.01	Add to
032	1134-0234-02	BATTERY CABLE (+)	£24.95	Add to
