ASSEMBLY PARTS

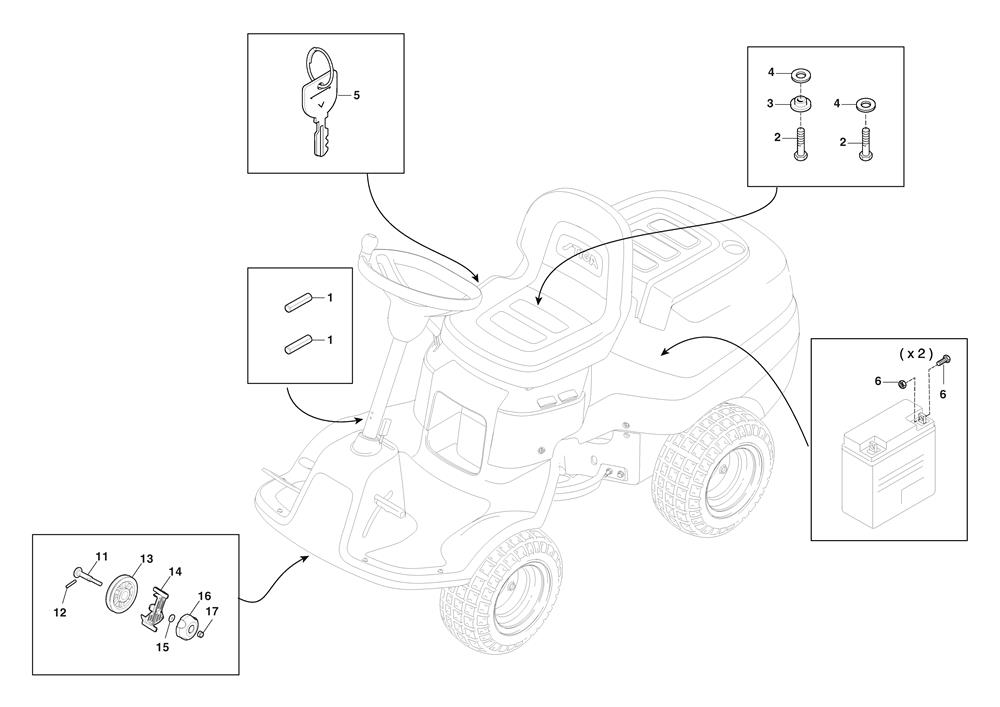

ASSEMBLY PARTS assembly details for Stiga PARK 300M (2F5820241/S16) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0019595-0262-00LOCATING PIN£2.06 Add to
0029959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0031134-4185-01FLANGE WASHER£6.71 Add to
004112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0061134-6113-01BATTERY SCREW PACK£12.82 Add to
011137510307/0PULLEY PIN£8.19 Add to
012112642450/0SPRING PIN D=3 x 14£1.79 Add to
0131134-0072-02STEERING PULLEY£7.78 Add to
014337774098/0BRACKET£5.05 Add to
015112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
016122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
017112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
