CUTTING PLATE LIFTING

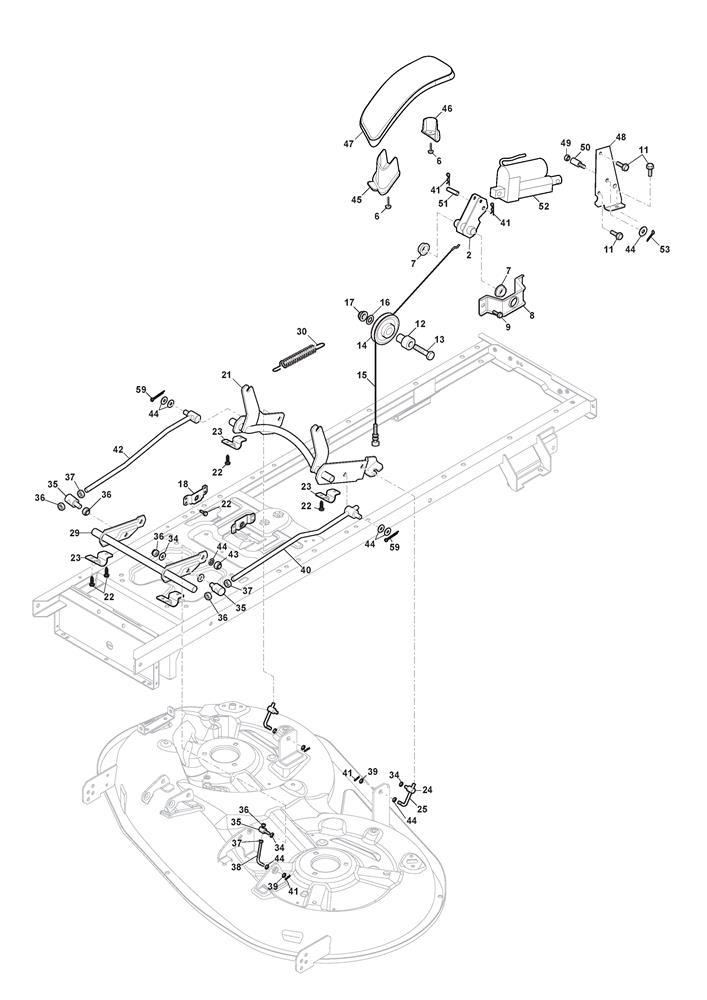

CUTTING PLATE LIFTING assembly details for Stiga TORNADO 7108E (2T1270481/ST2) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	382318345/0	LIFTING AXLE ASSEMBLY	£20.92	Add to
006	112728706/0	SELF-TAPPING SCREW K40 x 16	£2.06	Add to
007	325038006/0	LIFTING AXLE BUSH	£2.06	Add to
008	325785297/0	AXLE SUPPORT	£6.55	Add to
009	125943009/0	HEX-HEAD SCREW M8 x 1.25	£2.06	Add to
011	125943009/0	HEX-HEAD SCREW M8 x 1.25	£2.06	Add to
012	112793701/0	HEX-HEAD SCREW M8 x 30	£1.76	Add to
013	125040636/1	BUSH	£3.15	Add to
014	125601579/0	LIFTING DECK PULLEY	£3.15	Add to
015	382004629/1	LIFTING CABLE	£13.00	Add to
016	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
017	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
018	325774757/0	REAR AXLE FULCRUM BRACKET	£9.55	Add to
021	382000705/0	REAR LIGTING DECK AXLE	£33.60	Add to
022	112735599/0	SELF-TAPPING SCREW M6 x 16	£2.06	Add to
023	325547231/1	LIFTING DECK AXLE PLATE	£4.78	Add to
024	125510007/2	CONNECTING PIN	£5.76	Add to
025	125840041/0	DECK LIFT TIE ROD	£6.88	Add to
029	382000697/0	FRONT LIFTING DECK AXLE	£21.72	Add to
030	125430218/1	DECK LIFT SPRING	£6.14	Add to
034	325670008/1	ANTI-FRICTION WASHER 10.8 x 19 x 0.8	£2.06	Add to
035	125510007/2	CONNECTING PIN	£5.76	Add to
036	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
037	112295200/0	HEXAGON NUT M10	£1.79	Add to
038	125840012/1	CUTTING DECK TIE ROD	£14.73	Add to
039	325670008/1	ANTI-FRICTION WASHER 10.8 x 19 x 0.8	£2.06	Add to
040	382000699/0	L/H LINK LIFT DECK ROD ASSY	£13.36	Add to
041	124487997/0	SPRING CLIP D=1.8	£2.06	Add to
042	382000701/0	R/H LINK LIFT DECK ROD ASSY	£13.20	Add to
043	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
044	325670008/1	ANTI-FRICTION WASHER 10.8 x 19 x 0.8	£2.06	Add to
045	325774791/1	FRONT COVER FIX BRACKET	£3.83	Add to
046	325774793/1	REAR COVER FIX BRACKET	£3.58	Add to
047	325207299/1	LH COVER, DECK LIFT.GUIDE SD V3 GRAINED	£9.08	Add to
048	325774789/0	BRACKET	£9.47	Add to
049	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
050	125510187/0	ACTUATOR FIX PIN V3 WZ	£7.02	Add to
051	125510185/0	PIN FOR ACTUATOR DECK LIFT FIX	£3.90	Add to
052	118001006/0	DECK LIFT ACTUATOR	£266.59	Add to
053	124487995/0	R CLIP D=2	£0.79	Add to
059	112141418/0	SPLIT PIN 3 x 20	£1.76	Add to
