GRASSCATCHER

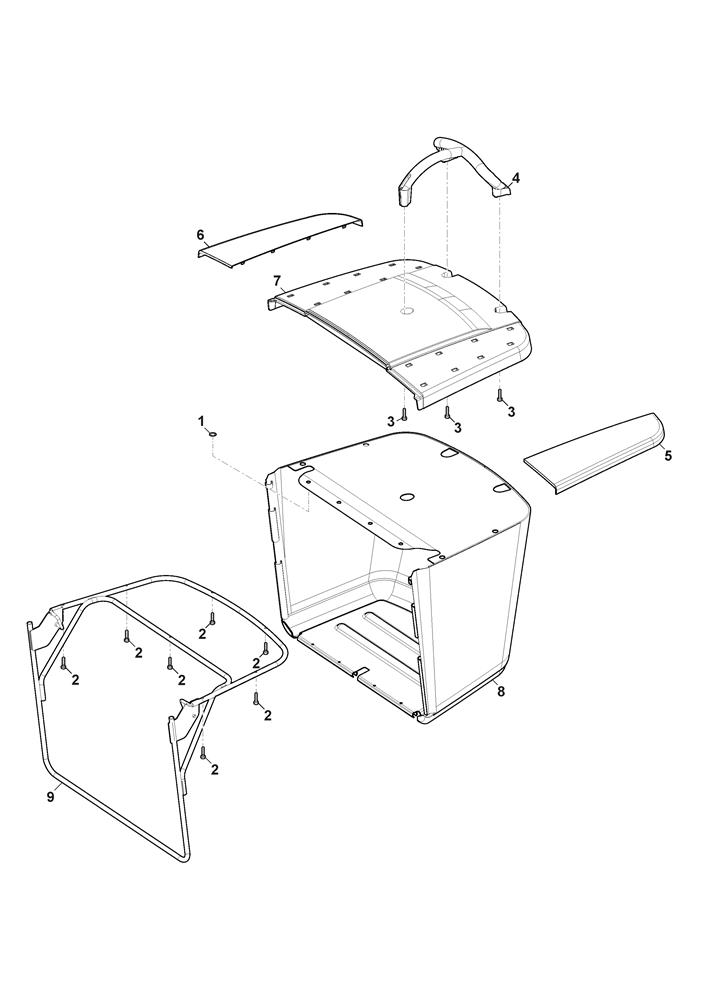

GRASSCATCHER assembly details for Stiga SWIFT 372E (2T0250481/ST1W) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112030200/0METAL RING WHEELS LOCKING SPL 360£2.06 Add to
002112728705/0SELF-TAPPING SCREW TORX K50 x 25£3.00 Add to
003112728705/0SELF-TAPPING SCREW TORX K50 x 25£3.00 Add to
004327110604/0GRASSCATCHER HANDLE [BLACK]£12.71 Add to
005327110603/0L/H SIDE BAND COVER [YELLOW]£10.68 Add to
006327110602/0R/H SIDE BAND COVER [YELLOW]£10.68 Add to
007327110601/1GRASSBOX TOP R72 [GREY] NCS S8000-N£36.41 Add to
008184106078/0GRASSCATCHER BAG [BLACK] R72£96.68 Add to
009384801155/0GRASSCATCHER FRAME ASSEMBLY£121.07 Add to
