ELECTRICAL TRANSMISSION

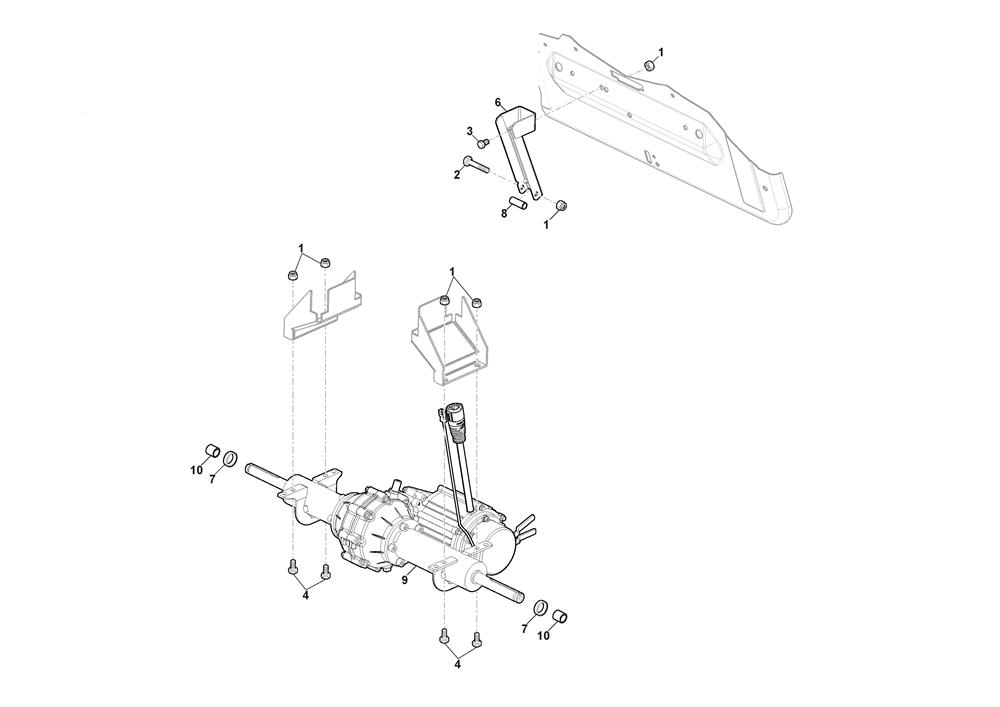

ELECTRICAL TRANSMISSION assembly details for Stiga SWIFT 372E (2T0250481/ST1W) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
002112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
003112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
004112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
006384783073/0SUPPORT ASSEMBLY£13.45 Add to
007125160058/2WHEELS SPACER£6.11 Add to
008127047023/0TRANSMISSION BUSH£5.80 Add to
009118401018/0ELECTRIC TRANSAXLE [ZONGSHEN]£496.56 Add to
010125160058/2WHEELS SPACER£6.11 Add to
