OPTIONALS ON REQUEST

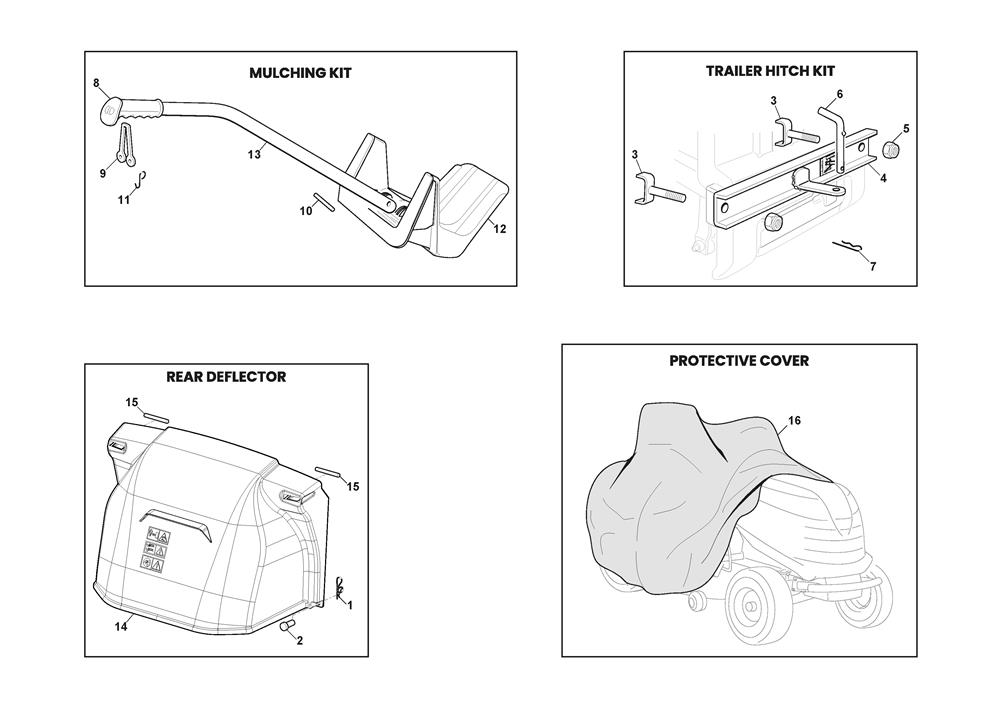

OPTIONALS ON REQUEST assembly details for Stiga SWIFT 372E (2T0250481/ST1) 2023 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	124487998/0	R CLIP D=2	£2.06	Add to
002	125510022/1	PIN	£3.40	Add to
003	382650211/0	REINFORCEMENT PIN	£5.46	Add to
004	382033111/0	TOW BAR	£32.06	Add to
005	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
006	125510021/1	HITCH PIN	£11.78	Add to
007	124487999/0	R CLIP D=3	£1.91	Add to
008	325280000/1	HAND GRIP KIT MULCHING RO	£3.55	Add to
009	125840011/1	LOCKING RUBBER TIE	£6.27	Add to
010	127510116/0	HANDLE FULCRUM PIN x MULCHING F72	£8.73	Add to
011	125253004/0	FIXING HOOK	£2.06	Add to
012	327140059/0	MULCHING DEFLECTOR R72	£20.09	Add to
013	327394005/0	MULCHING DEFLECTOR HANDLE R72	£18.29	Add to
014	327600187/0	DEFLECTOR GUARD	£38.82	Add to
015	127510116/0	HANDLE FULCRUM PIN x MULCHING F72	£8.73	Add to
016	1134-9177-01	RIDE-ON MOWER COVER [STIGA]	£65.50	Add to
