ELECTRICAL PARTS

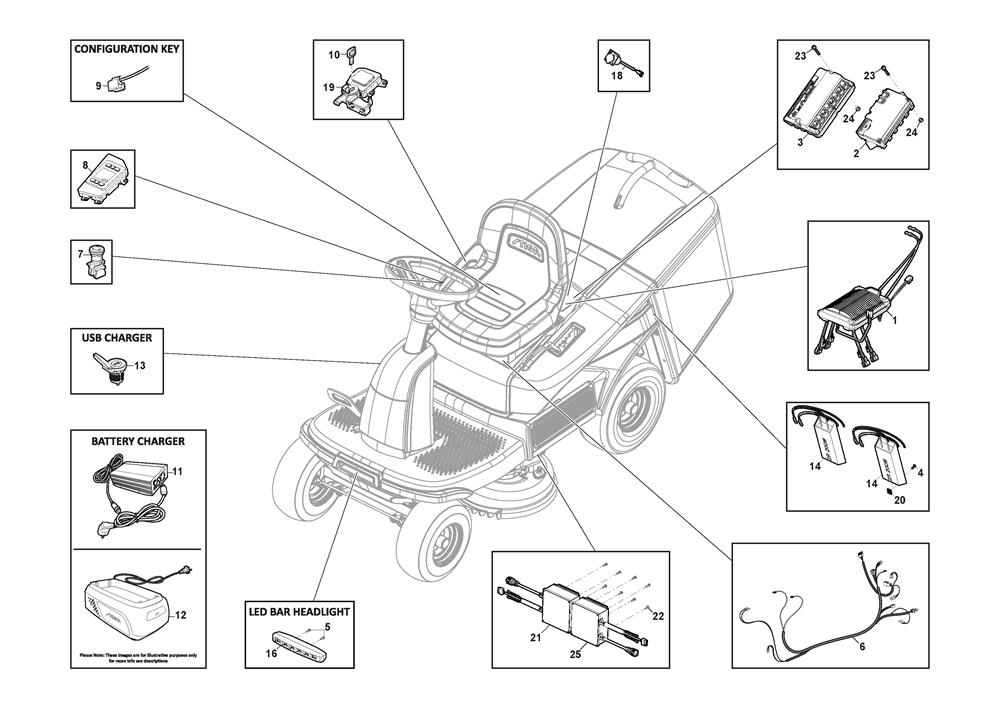

ELECTRICAL PARTS assembly details for Stiga SWIFT 372E (2T0250481/ST1) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001384722492/3PC BOARD PARALLEL MODULE R72£918.73 Add to
002118361074/0TRACTION CONTROLLER ZONGSHEN£409.87 Add to
003118361051/5VMS ST MP/SD (eRide 300/500)£775.20 Add to
004112735404/0FLANGED HEX-HEAD SCREW D5 x 16 WZ£2.06 Add to
005112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
006184044017/0MAIN HARNESS ER1-2£163.73 Add to
007187040332/0SAFETY BUTTON (RED)£117.26 Add to
008382722470/1PC BOARD ASSEMBLY V2£168.92 Add to
009118361050/0PROGRAM CONFIGURATION KEY ER1-2£19.49 Add to
010118210032/0IGNITION KEY£8.00 Add to
011118204210/0BATTERY CHARGER e100-e200 [EU PLUG-4Ah]£323.09 Add to
012277030008/ST1EC 430 F FAST BATT. CHARGER STIGA (EU)£76.08 Add to
013118450201/2USB CHARGER INLET HONDA-MP/SD-GYRO-R72£57.55 Add to
014118361075/0EXTERNAL RESISTANCE 20HM-200W£39.31 Add to
016384183051/0LED BAR HEADLIGHT ASSEMBLY£41.83 Add to
018127065073/0CHARGER CONNECTION CABLE ER1-2£85.18 Add to
019382410519/0IGNITION KEY PANEL ASSEMBLY£100.00 Add to
020112437502/1FAST FIX PLATE£2.06 Add to
021118361073/0R/H BLADE MOTOR CONTROL 1000W£520.31 Add to
022112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
024112154320/0SELF-LOCKING NUT M5£2.06 Add to
025118361081/0L/H BLADE MOTOR CONTROL 1000W SUZHOU£520.31 Add to
