WHEELS

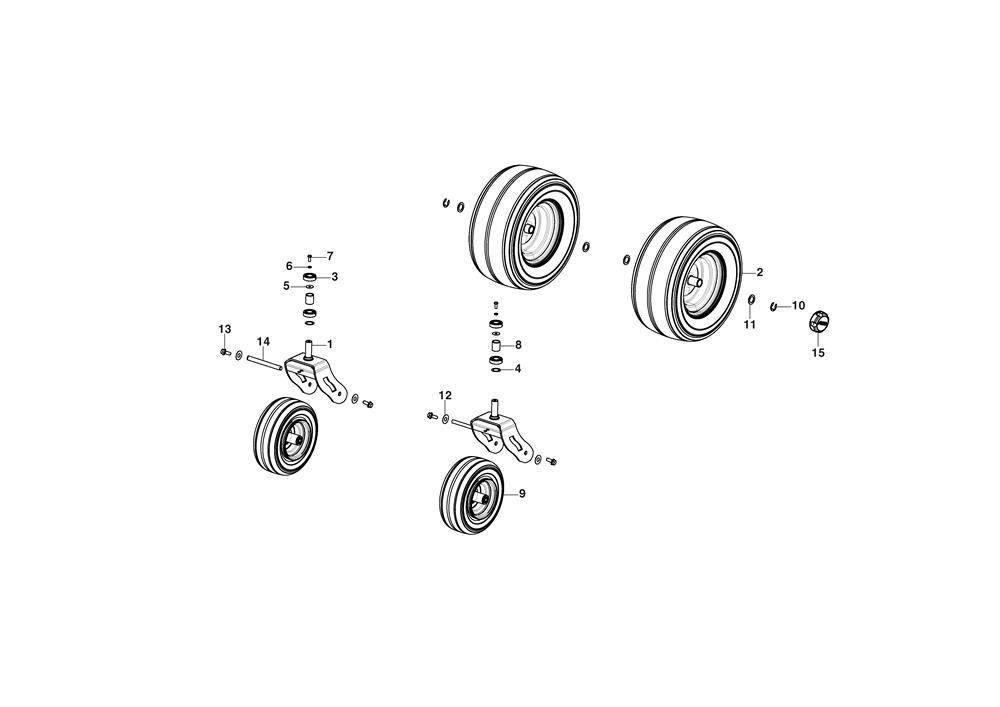

WHEELS assembly details for Stiga GYRO 900E (2F7064705/ST1) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387785293/0FRONT WHEELS SUPPORT ASSEMBLY [YELLOW]£105.00 Add to
002382680110/0REAR WHEEL ASSEMBLY 20" FENG.+WANDA P519£214.03 Add to
003119216064/0BEARING 7205 BE 2RS GYRO 900£8.02 Add to
004112520034/0WASHER 26 x 37 x 0.5£6.50 Add to
005122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
006112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
0079959-0825-16SCREW FLANGED TE M6SF M8 x 25£2.06 Add to
008137160019/0WHEEL SUPPORT SPACER£7.61 Add to
009387680325/0FRONT WHEEL ASSY 13"FENG+WANDA P607 GYRO£82.00 Add to
0109653-0002-04CIRCLIP 1"£3.69 Add to
011325670029/0WASHER D2=29.5£5.80 Add to
012112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0139955-3725-16SCREW 3/8" x 25£2.87 Add to
014137510347/0FULCRUM PIN£10.26 Add to
015322110244/0HUB CAP [BLUE]£5.42 Add to
