TRANSMISSION

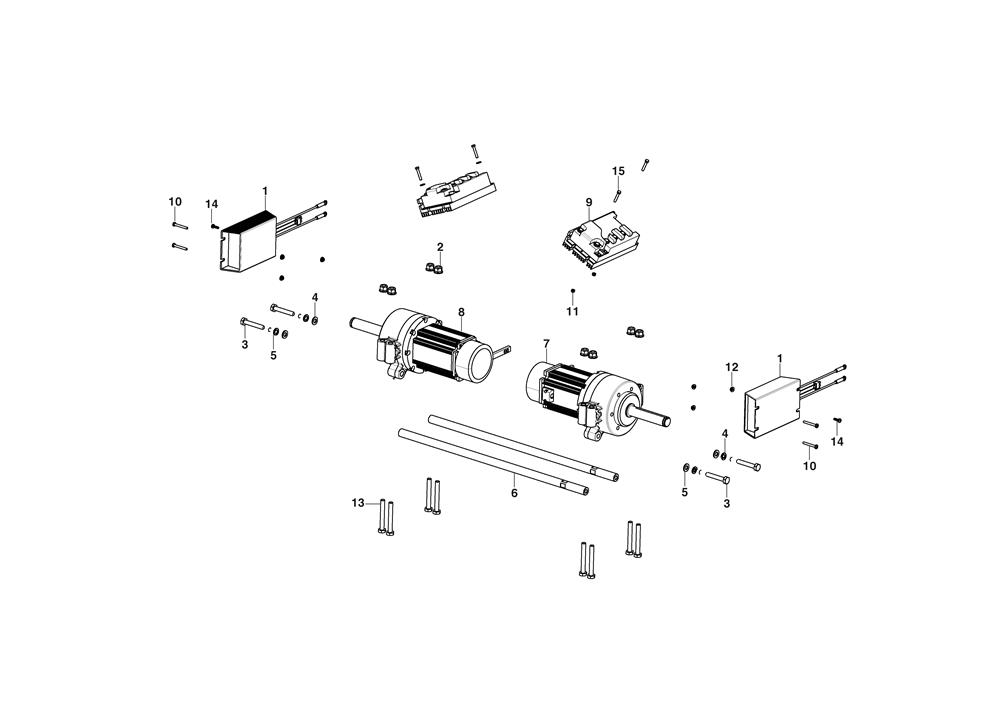

TRANSMISSION assembly details for Stiga GYRO 900E (2F7064705/ST1) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118361077/0RESISTANCE 400W£323.09 Add to
0029731-1031-22LOCK NUT M6MF M10£2.47 Add to
003112692395/2SCREW M10 x 60£3.49 Add to
004112585100/0WASHER GROWER M10 UNI 1751£2.06 Add to
005112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
006137033119/0CONNECTING ROD£91.19 Add to
007118401020/0L/H WHEEL LINIX MOTOR GYRO 900£855.70 Add to
008118401019/0R/H WHEEL LINIX MOTOR GYRO 900£855.70 Add to
009118361078/1TRACTION CONTROLLER GYRO 900£484.18 Add to
0109947-0540-19SCREW£2.06 Add to
011112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
0129739-0531-22NUT M5£2.47 Add to
013112794950/0SCREW M10 x 80£4.11 Add to
0149943-0516-16SCREW£2.40 Add to
015112789100/0HEX-HEAD SCREW M5 x 30£2.06 Add to
