MOWER DECK LIFT

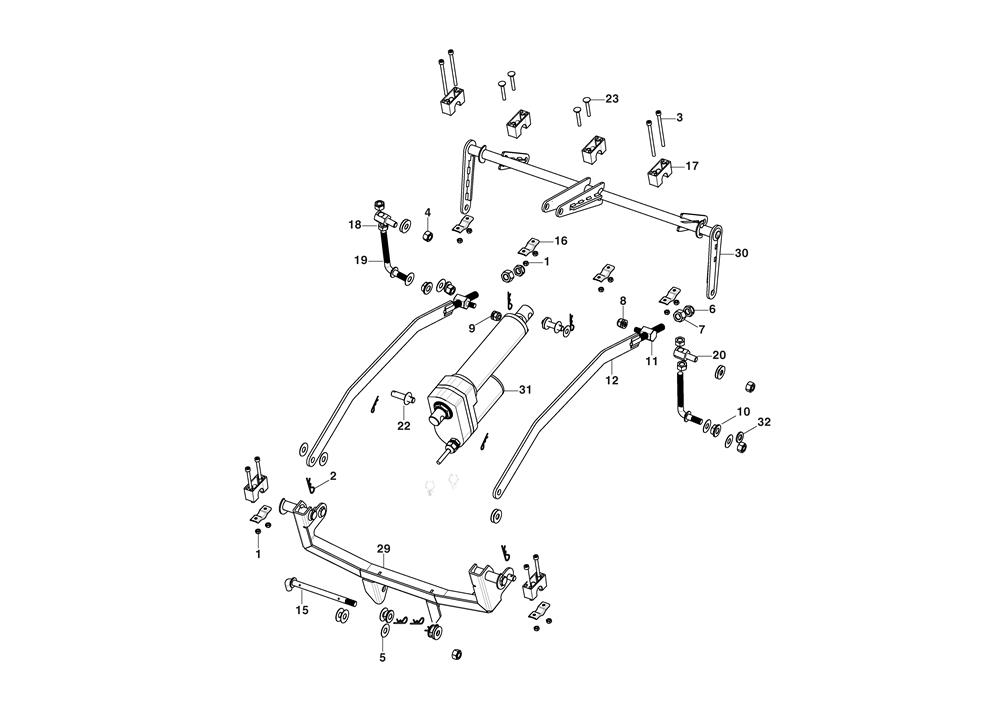

MOWER DECK LIFT assembly details for Stiga GYRO 900E (2F7064705/ST1) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
002124487997/0SPRING CLIP D=1.8£2.06 Add to
004112156603/0SELF-LOCKING NUT M12£2.06 Add to
005322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
006112155700/0NUT M14£2.87 Add to
008112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
009325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
010137040612/0SYNTERED BUSH£4.02 Add to
011137510351/0DECK LIFT ROD PIN£7.42 Add to
012387318293/0E-C LIFTING SYSTEM ARM£65.93 Add to
015137510355/0FRONT LIFTING SYSTEM PIN£14.47 Add to
016327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
017325785185/0AXLE SUPPORT BLOCK£4.10 Add to
018112295300/0HEXAGON NUT M12£2.06 Add to
019125840043/0REAR TIE ROD GYRO 900 CTF£78.11 Add to
020137510357/0REAR LIFTING SYSTEM PIN£10.04 Add to
022137510343/0ACTUATOR FULCRUM PIN£11.58 Add to
023112815245/0SCREW M6 x 45£2.06 Add to
029387000333/0FRONT LIFTING AXLE£303.37 Add to
030387318291/0LIFTING SYSTEM MAIN LEVER GYRO 900 E-C£382.20 Add to
031118001007/0LIFTING LINEAR ACTUATOR£631.82 Add to
032112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
