MOWER DECK

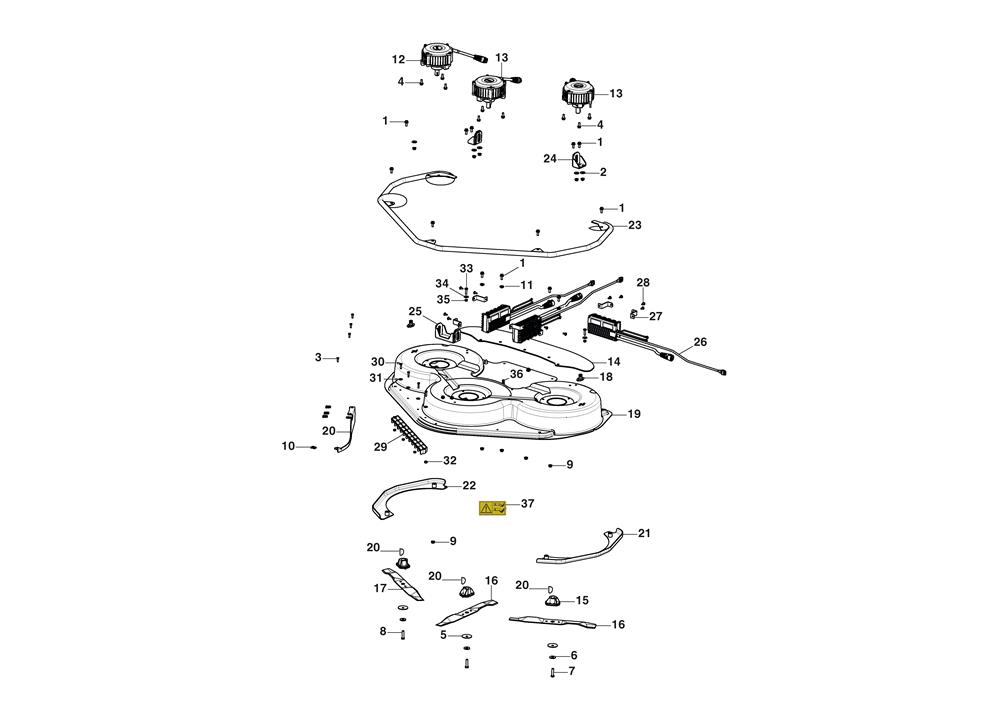

MOWER DECK assembly details for Stiga GYRO 900E (2F7064705/ST1) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0019959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
002112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
003112791213/1SCREW M6 X 18£1.74 Add to
005122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
006112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
007112735694/0HEX-HEAD SCREW 3/8" X 1 1/2" 24 UNF£1.97 Add to
008112735695/1HEX-HEAD SCREW 3/8" x 1 1/2" L/H THREAD£4.23 Add to
009112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
0101134-4176-01CLIP£5.19 Add to
0111134-4185-01FLANGE WASHER£6.71 Add to
012118563761/1R/H BLADE ELECTRIC MOTOR ZONGSHENG£645.17 Add to
013118563762/1L/H BLADE ELECTRIC MOTOR ZONGSHENG£645.17 Add to
014337600058/0RUBBER PROTECTION GUARD£45.55 Add to
015125463200/0BLADE BOSS£9.08 Add to
016182004382/0L/H REAR DISCHARGE BLADE£29.45 Add to
017182004381/0R/H REAR DISCHARGE BLADE£29.45 Add to
018325033086/0WASHING CONNECTION SD 98£3.60 Add to
019387561541/0DECK CASING 125C [GYRO 900]£449.81 Add to
020337140005/0BP GRASS DECK DEFLECTOR£55.60 Add to
021387603353/0WEAR PLATE L/H£135.19 Add to
022387603351/0WEAR PLATE R/H£135.19 Add to
023387869285/0DECK PROTECTION TUBE 125 [GYRO 900]£211.40 Add to
024387773625/0REAR BRACKET LIFT.ASSY E-COAT GYRO 900£29.40 Add to
025387773627/0FRONT BRACKET LIFT.ASSY E-COAT GYRO 900£42.22 Add to
027337546737/0SUPPORT FOR BLADE CONTROLLER GYRO 900 EC£12.56 Add to
0289893-0616-16SCREW M6 x 16£2.47 Add to
029325600157/0FRONT BLADE GUARD£9.34 Add to
031112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
032112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
033112727795/0CHEESE-HEAD SCREW M5 X 20£1.79 Add to
034112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
035112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0361134-5595-01BLIND RIVET NUT£8.32 Add to
037114356699/1CUTTING DECK DANGER LABEL£2.06 Add to
