BODYWORK

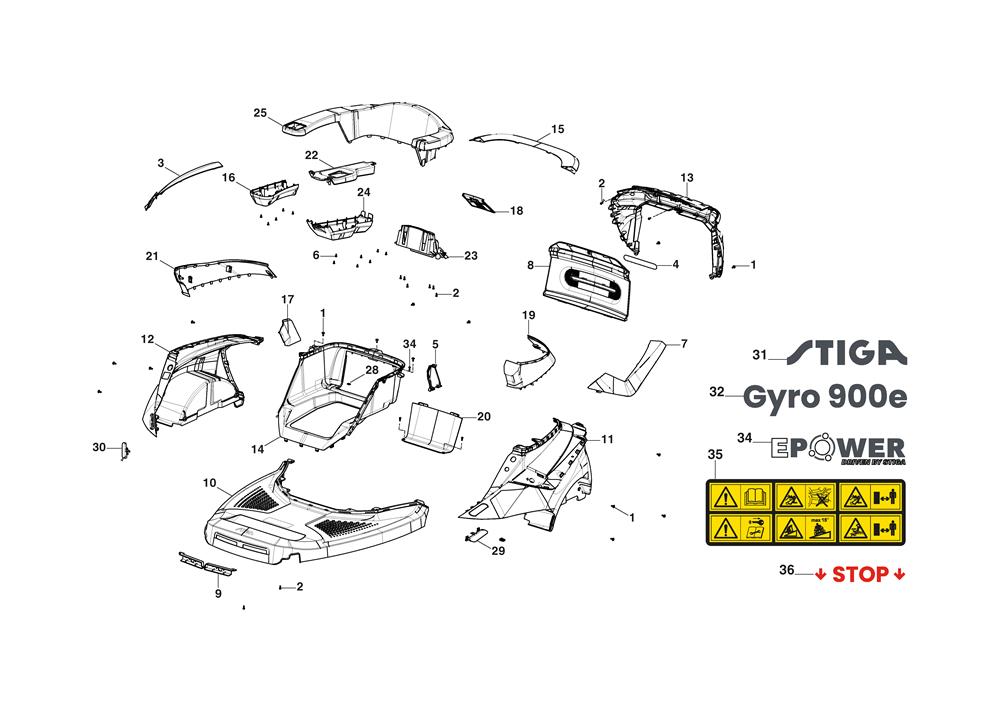

BODYWORK assembly details for Stiga GYRO 900E (2F7064705/ST1) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0019893-0616-16SCREW M6 x 16£2.47 Add to
002112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
003337110418/0R/H CENTRAL COVER [YELLOW]£30.30 Add to
004114373310/0REAR DECAL REFLECTOR [GYRO 900]£11.05 Add to
005337110400/0L/H FIXING COVER£14.75 Add to
006112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
007337110419/0L/H CENTRAL COVER [YELLOW]£30.30 Add to
008337110417/0BATTERY ACCESS PANEL£66.11 Add to
009337774218/0HEADLAMP FIXING BRACKET [PLASTIC]£10.81 Add to
010337506607/0FOOT PLATE [PLASTIC]£211.40 Add to
011337110414/0LEFT COVER£156.23 Add to
012337110413/0RIGHT COVER£156.23 Add to
013387111517/0REAR COVER ASSEMBLY£143.09 Add to
014337110411/0LOWER SEAT COVER£170.69 Add to
015337110410/0CENTRAL COVER [YELLOW]£62.03 Add to
016337110394/0R/H ARM REST BOTTOM COVER£30.79 Add to
017337110399/0R/H FIXING COVER£15.08 Add to
018337110398/0REAR SEAT COVER£17.59 Add to
019337110397/0L/H SIDE SEAT COVER£40.48 Add to
020337110409/0SERVICE ACCESS PANEL£31.61 Add to
021337110396/0R/H SIDE SEAT COVER£40.48 Add to
022337110407/0L/H ARM REST COVER£165.08 Add to
023337110408/0REAR CENTRAL COVER CHARGE PLUG£40.48 Add to
024337110395/0L/H ARM REST BOTTOM COVER£33.77 Add to
025337110406/0R/H ARM REST COVER£215.20 Add to
026384183051/0LED BAR HEADLIGHT ASSEMBLY£41.83 Add to
027337774223/0REAR COVER REINFORCING BRACKET [GYRO 900£8.51 Add to
028112437502/1FAST FIX PLATE£2.06 Add to
029337110421/0COVER£6.78 Add to
030337110420/0R/H SCREW COVER£6.78 Add to
031114367495/1EMBLEM DECAL STIGA 3D 120 x 25mm£9.96 Add to
032114373361/0DECAL [GYRO 900e]£3.06 Add to
034112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
034114372311/0LABEL"E POWER DRIVEN BY STIGA"x RO(GREY)£2.69 Add to
035114373305/0SAFETY DECAL [GYRO]£6.59 Add to
036114373306/0"STOP" DECAL [GYRO]£2.65 Add to
037114368431/0SAFETY DECAL-DO NOT STEP£6.42 Add to
