WHEELS

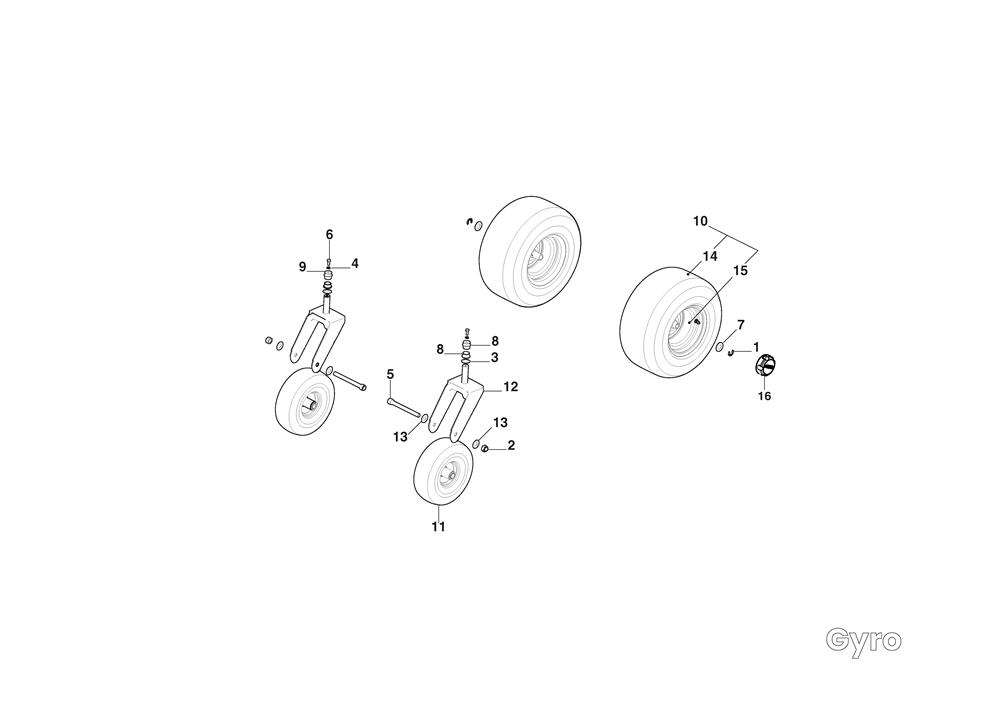

WHEELS assembly details for Stiga GYRO 700E (2F7063605/ST1) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112001000/0CIRCLIP ID=15 TH=1.5£1.83 Add to
002112295801/0HEXAGON NUT M16£2.06 Add to
003112520034/0WASHER 26 x 37 x 0.5£6.50 Add to
004112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
005112760496/0SCREW TCCE M16X150 UNI 5931 WZ£6.89 Add to
006112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
007125670005/2SPINDLE WASHER£3.89 Add to
008137038015/0BUSH£7.91 Add to
009322672152/0ANTI-FRICTION WASHER 8.2 x 30 x 0.8£1.91 Add to
010382680097/0REAR WHEEL ASSY 18"FENGCHI DG+WANDA P519£139.15 Add to
011387680324/0FRONT WHEEL ASSY 11"FENG+WANDA P607 GYRO£67.85 Add to
012387785281/0FRONT WHEELS SUPPORT ASSEMBLY£69.59 Add to
0139699-0114-02WASHER 16 x 38 x 1£2.32 Add to
014125590033/0TYRE 18 x 8.50-8 [DELI] PR2 TL S373A£83.40 Add to
015182001505/0REAR WHEEL RIM 7.5" x 8£95.72 Add to
016322110242/0STIGA HUB COVER (BLUE)£3.65 Add to
