MOWER DECK

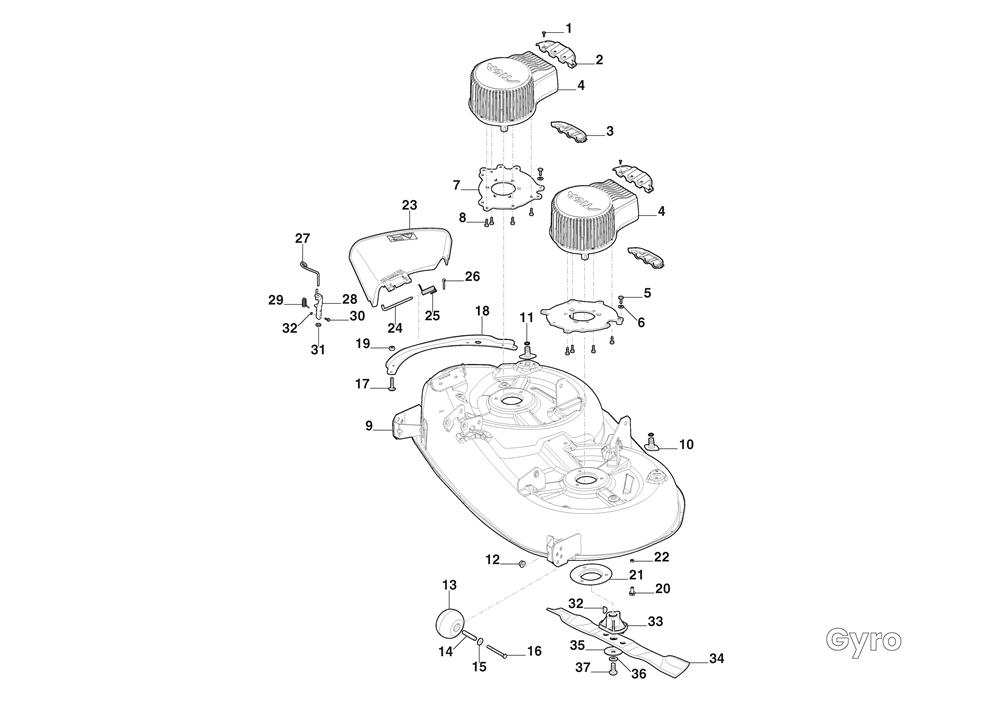

MOWER DECK assembly details for Stiga GYRO 700E (2F7063605/ST1) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
002325600144/1UPPER WIRES GUARD£6.04 Add to
003325600145/1LOWER WIRES GUARD£6.04 Add to
004118563746/1L/H BLADE ELECTRIC MOTOR£1,126.06 Add to
005112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
006112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
007382207223/0E-COATING ENGINE BLADES FLANGE£47.65 Add to
008112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
009382564239/0CUTTING DECK SD108 [BLACK]£380.45 Add to
010325033086/0WASHING CONNECTION SD 98£3.60 Add to
011119035000/0O RING 10.77 x 2.62£5.46 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
013182700001/0ANTI-SCALP WHEEL D=100mm£5.87 Add to
014125510072/1WHEEL SPACER£2.18 Add to
015112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
016112692050/0HEX-HEAD SCREW£1.91 Add to
017112815202/0SCREW TTDQ M6x16 6.8 White Zinc£2.52 Add to
018325547259/1SIDE DECK PLATE SD108£15.41 Add to
019112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
020112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.69 Add to
021382547105/0REINFORCED DECK PLATE£26.20 Add to
023325600149/0DEFLECTOR [BLACK]£18.82 Add to
024125510073/0FULCRUM PIN£8.04 Add to
025125430242/1SPRING£3.64 Add to
026112141418/0SPLIT PIN 3 x 20£1.76 Add to
027125318355/0FULCRUM PIN£5.32 Add to
028325774719/0BP GRASS DEFLECTOR PIN BRACKET SDR 108£6.09 Add to
029125430288/0SPRING£9.39 Add to
030112815202/0SCREW TTDQ M6x16 6.8 White Zinc£2.52 Add to
031112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
032112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.69 Add to
032112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
033125463200/0BLADE BOSS£9.08 Add to
034182004357/0MULCHING BLADE 108cm£25.80 Add to
035112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
036122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
037112735694/0HEX-HEAD SCREW 3/8" X 1 1/2" 24 UNF£1.97 Add to
