CHASSIS

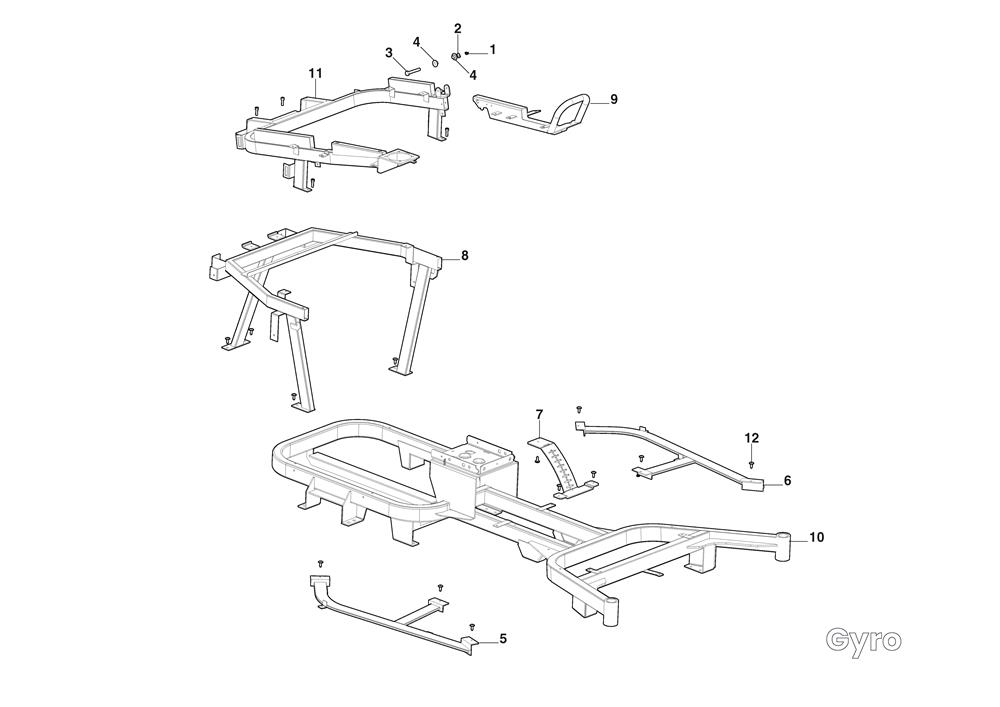

CHASSIS assembly details for Stiga GYRO 700E (2F7063605/ST1) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
002112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
003112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
004137038016/0BUSH£5.53 Add to
005337785161/0R/H STEEL FOOT PLATE SUPPORT£98.71 Add to
006337785163/0L/H STEEL FOOT PLATE SUPPORT£98.71 Add to
007387735260/0LIFTING DECK GEAR SECTOR£48.60 Add to
008387785283/0UPPER FRAME SUPPORT ASSEMBLY£400.76 Add to
009387785291/0LEFT ARM REST ASSEMBLY£177.28 Add to
010387800063/0FRAME ASSEMBLY [YELLOW]£1,477.51 Add to
011387800065/0FRAME ARM REST ASSEMBLY£373.66 Add to
0129893-0616-16SCREW M6 x 16£2.47 Add to
