BODYWORK

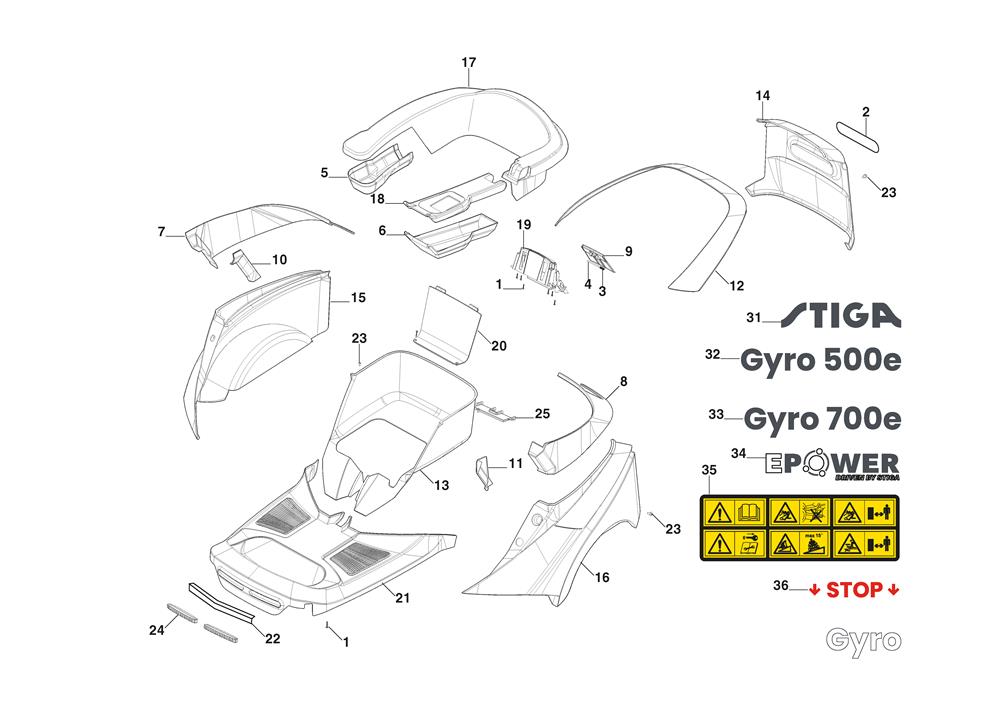

BODYWORK assembly details for Stiga GYRO 700E (2F7063605/ST1) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
002114372945/0REAR LABEL REFLECTOR e-ZTR£9.73 Add to
003122430256/0SPRING STOP BUTTON£7.63 Add to
004125510183/0FULCRUM COVER PIN£1.55 Add to
005337110394/0R/H ARM REST BOTTOM COVER£30.79 Add to
006337110395/0L/H ARM REST BOTTOM COVER£33.77 Add to
007337110396/0R/H SIDE SEAT COVER£40.48 Add to
008337110397/0L/H SIDE SEAT COVER£40.48 Add to
009337110398/0REAR SEAT COVER£17.59 Add to
010337110399/0R/H FIXING COVER£15.08 Add to
011337110400/0L/H FIXING COVER£14.75 Add to
012337110401/0CENTRAL COVER£89.24 Add to
013337110402/0LOWER SEAT COVER£175.92 Add to
014337110403/0REAR COVER£105.49 Add to
015337110404/0RIGHT COVER£129.88 Add to
016337110405/0LEFT COVER£129.88 Add to
017337110406/0R/H ARM REST COVER£215.20 Add to
018337110407/0L/H ARM REST COVER£165.08 Add to
019337110408/0REAR CENTRAL COVER CHARGE PLUG£40.48 Add to
020337110409/0SERVICE ACCESS PANEL£31.61 Add to
021337506606/0FOOT PLATE [PLASTIC]£122.41 Add to
022337774218/0HEADLAMP FIXING BRACKET [PLASTIC]£10.81 Add to
0239893-0616-16SCREW M6 x 16£2.47 Add to
024384183051/0LED BAR HEADLIGHT ASSEMBLY£41.83 Add to
025337110416/0VMS WATER DRAIN COVER£12.23 Add to
031114367495/1EMBLEM DECAL STIGA 3D 120 x 25mm£9.96 Add to
033114373360/0DECAL "GYRO 700e" GYRO 700£4.92 Add to
034114372311/0LABEL"E POWER DRIVEN BY STIGA"x RO(GREY)£2.69 Add to
035114373305/0SAFETY DECAL [GYRO]£6.59 Add to
036114373306/0"STOP" DECAL [GYRO]£2.65 Add to
