SEAT

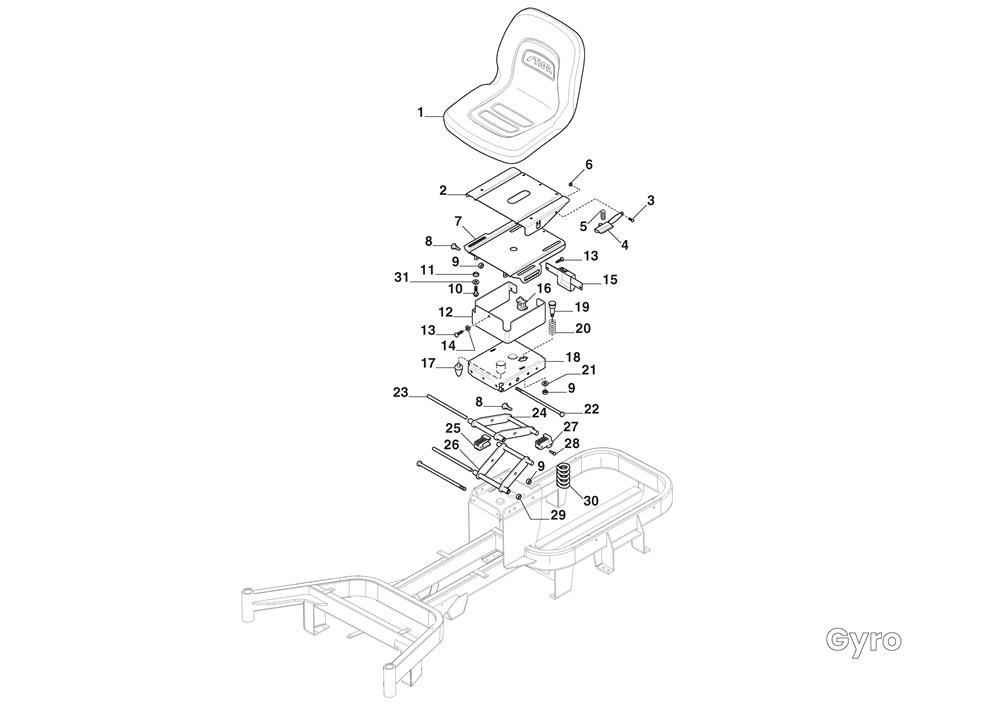

SEAT assembly details for Stiga GYRO 500E (2F7062505/ST1) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001137722602/1SEAT [PARK]£423.06 Add to
0021134-6090-01UPPER SLIDE PLATE£99.76 Add to
0039893-0616-16SCREW M6 x 16£2.47 Add to
004337315025/0SEAT ADJUST LEVER [BLACK]£28.63 Add to
0041134-3262-01SPRING£8.73 Add to
006112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
007387773513/0LOWER SLIDE PLATE£95.67 Add to
0081134-0240-00SCREW£9.14 Add to
009112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
010112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
0111134-6078-01FLANGE WASHER£5.87 Add to
012387605033/0SEAT SUSPENSION PROTECTION£63.10 Add to
013112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
014112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
015387602511/0OPC MICRO PROTECION COVER£35.71 Add to
0161134-3156-01SEAT SWITCH [BLACK]£45.26 Add to
0171137-0064-01RUBBER CONE£42.53 Add to
018387773509/2UPPER PLATE£92.23 Add to
019137510338/0OPC SEAT PIN£6.20 Add to
020137430122/0OPC SPRING£4.93 Add to
021112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0231137-0263-01TUBE£9.68 Add to
0241137-0261-01LINK ASSEMBLY B£67.05 Add to
0251137-0033-02BLOCK£3.41 Add to
0261137-0260-01LINK ASSEMBLY A£65.69 Add to
0271137-0033-01BLOCK£3.41 Add to
028112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
029112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
0301134-4160-01SEAT SPRING£24.95 Add to
031112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
