CAMSHAFT

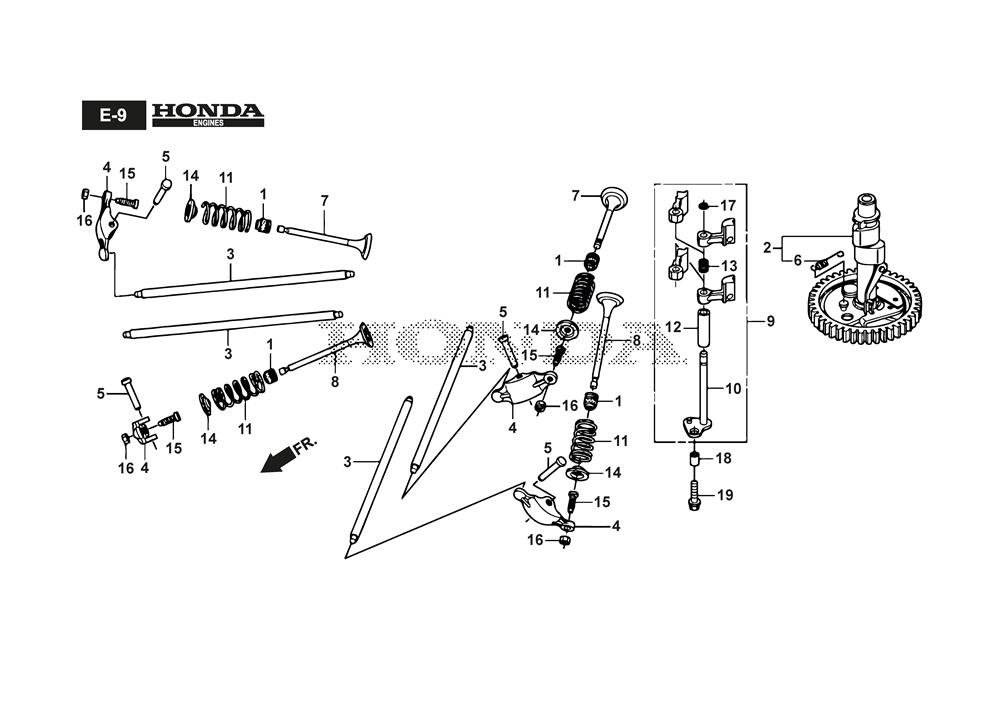

CAMSHAFT assembly details for Stiga ESTATE 9122 WX (2T1535381/ST2) 2023 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118551735/0	SEAL, VALVE STEM	£13.64	Add to
002	118551811/0	CAMSHAFT ASSY.	£647.56	Add to
003	118551828/0	ROD COMP., PUSH	£31.63	Add to
004	118551834/0	ARM, VALVE ROCKER	£32.99	Add to
005	118551844/0	SHAFT, ROCKER ARM	£5.46	Add to
006	118551847/0	SPRING, WEIGHT RETURN	£4.52	Add to
007	118551851/0	VALVE, IN.	£42.53	Add to
008	118551858/0	VALVE, EX.	£64.32	Add to
009	118551865/0	LIFTER ASSY., VALVE	£184.24	Add to
011	118551872/0	SPRING, VALVE	£12.00	Add to
014	118551879/0	RETAINER, IN. VALVE SPRING	£12.96	Add to
015	118552221/0	SCREW, TAPPET ADJUSTING	£6.14	Add to
016	118552231/0	TAPPET ADJUSTING NUT	£3.24	Add to
017	118552244/0	GOVERNOR HOLDER CLIP	£1.74	Add to
