ENGINE - ST

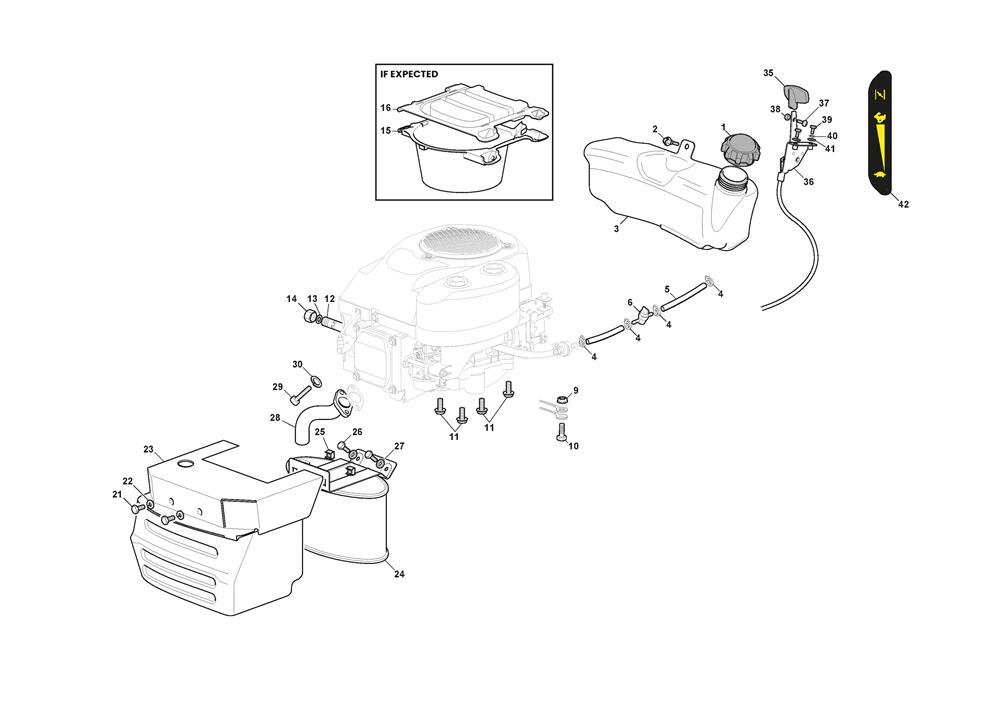

ENGINE - ST assembly details for Stiga ESTATE 598 (2T2620481/ST2) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125795001/1FUEL TANK CAP£8.32 Add to
002125943010/0FLANGED SCREW£2.06 Add to
003325735126/1FUEL TANK [6 LT]£47.97 Add to
004118375062/0HOSE CLAMP X RON ENGINES£2.00 Add to
005325869057/0FUEL TUBE L=1000£20.72 Add to
006118566119/0FUEL TAP£15.89 Add to
009112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
010112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
011112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
012127598060/0OIL DRAIN EXTENSION£8.52 Add to
013118401001/1OIL DRAIN SEAL£2.06 Add to
014118737849/0OIL DRAIN PLUG£2.47 Add to
015325108044/1LONG AIR CONVEYOR£11.46 Add to
016325263318/0AIR INTAKE GRILL [BLACK]£13.23 Add to
021112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
022112540260/0INNER TOOTHED WASHER M8£2.06 Add to
024182750018/0MUFFLER ASSEMBLY [SINGLE-CYLINDER]£65.00 Add to
025112360425/0SQUARE NUT M8£2.18 Add to
026112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
027112540260/0INNER TOOTHED WASHER M8£2.06 Add to
028118738231/2EXHAUST FITTING PIPE£21.00 Add to
029112737450/0SCREW 5/16 x 3/4 18 THREAD£3.55 Add to
030112540260/0INNER TOOTHED WASHER M8£2.06 Add to
035325394531/0THROTTLE CONTROL KNOB£1.91 Add to
036182000215/0THROTTLE CABLE£20.31 Add to
037112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
038112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
039112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
040112540020/0EXTERNAL TOOTHED WASHER M4£2.06 Add to
041112521310/0WASHER M4 4.3 x 9 x 0.8£1.79 Add to
042114363697/0THROTTLE DECAL£2.06 Add to
