REAR TIRES & TRANSAXLES

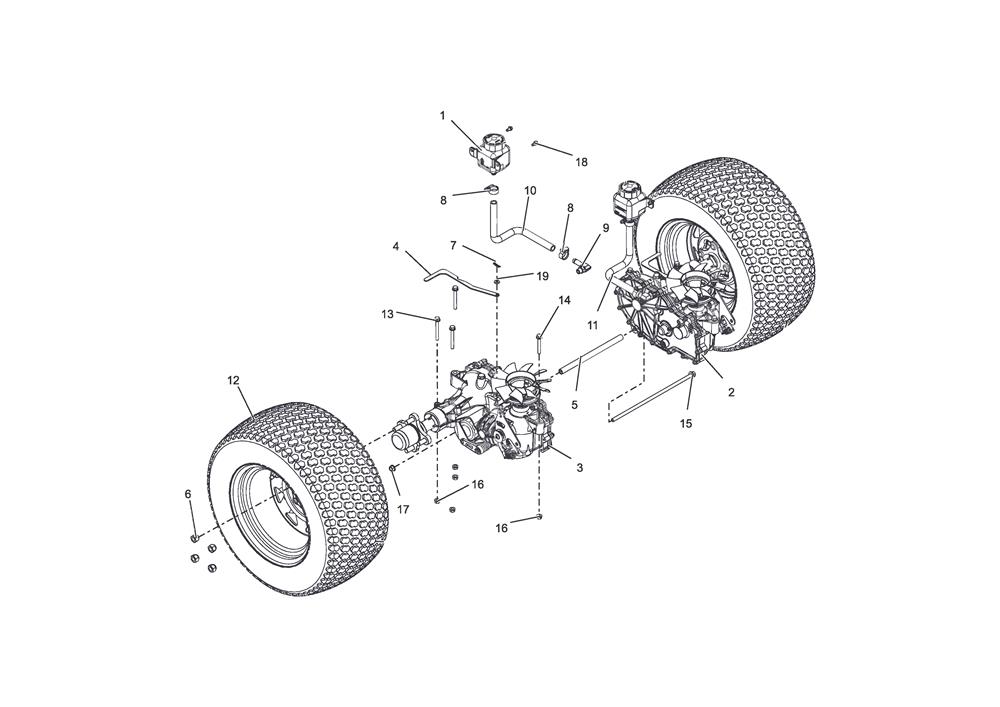

REAR TIRES & TRANSAXLES assembly details for Stiga ZT 7132 T (2F1020861/ST1) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118830758/0TANK, EXPANSION£61.60 Add to
002118830770/0TRANSAXLE [HYDROGEAR ZT3100 LH]£2,416.08 Add to
003118830771/0TRANSAXLE [HYDROGEAR ZT3100 RH]£2,478.00 Add to
004118830856/0VALVE DUMP BRACKET [GREY£10.86 Add to
005118830893/0TRANSAXLE SPACER [BLACK]£14.51 Add to
008118830911/0HOSE CLAMP D=0.88£13.25 Add to
009118830912/0COUPLING£66.22 Add to
010118830913/0R/H HOSE£48.60 Add to
011118830914/0L/H HOSE£48.60 Add to
012118830794/1WHEEL ASSEMBLY 22 x 10.50-12£449.41 Add to
