FRAME

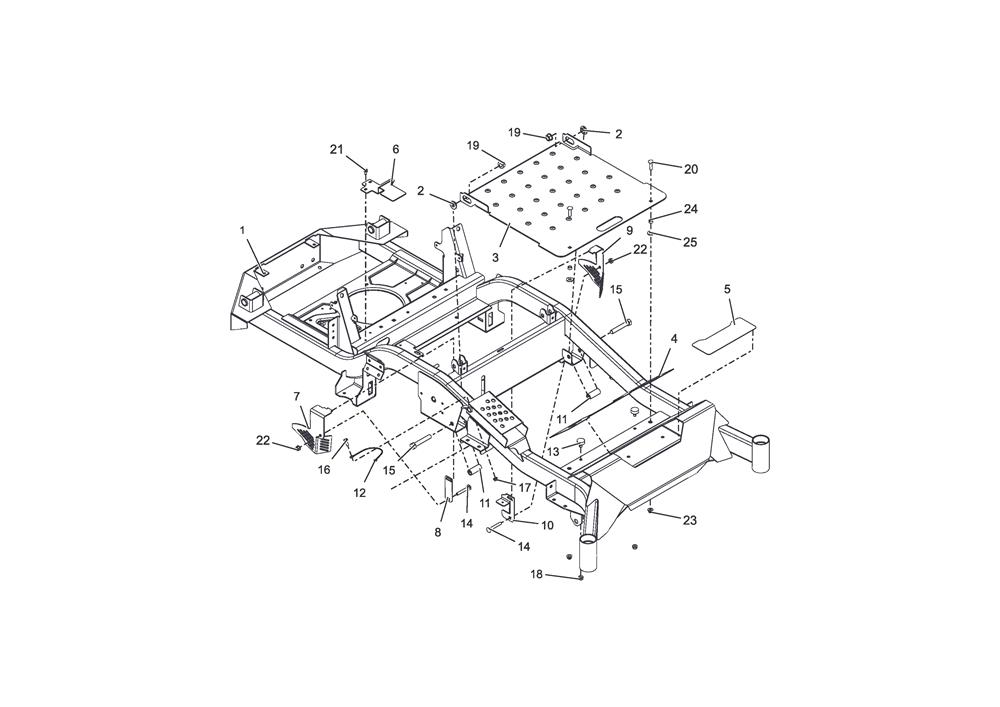

FRAME assembly details for Stiga ZT 7132 T (2F1020861/ST1) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118830925/0FRAME [YELLOW]£1,450.90 Add to
002118830828/0FLANGE BUSH£12.23 Add to
003118830926/0ACCESS PANEL WITH SAFETY DECALS£89.45 Add to
004118830865/0FRONT GRIP£40.42 Add to
005118830871/0GRIP STEP£17.32 Add to
006118830890/0TRANSAXLE FAN GUARD R/H [GREY PEARL]£168.35 Add to
007118830898/0TRANSAXLE FAN GUARD R/H [YELLOW]£67.75 Add to
008118830899/0FAN GUARD BRACKET [YELLOW]£16.75 Add to
009118830900/0GUARD, TRANSAXLE FAN LH (YELLOW)£74.66 Add to
010118830901/0MOUNT, TRANSAXLE GUARD (YELLOW)£16.75 Add to
011118830909/0SPACER£7.22 Add to
012118830910/0LANYARD 12"£12.58 Add to
013118830921/0RUBBER BUMPER£27.53 Add to
