FRAME

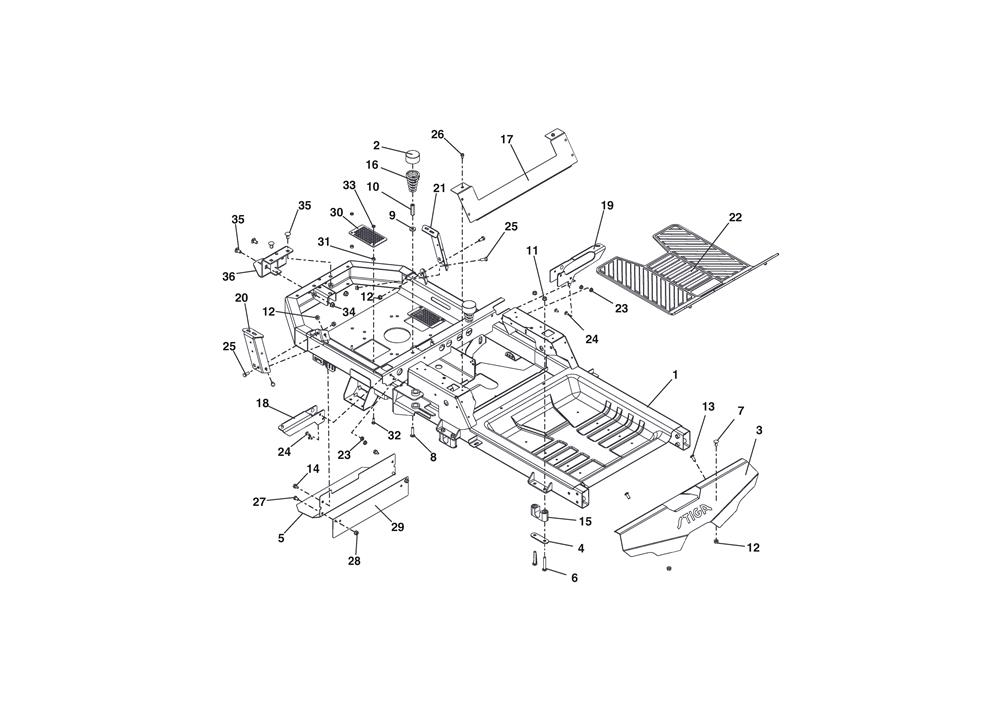

FRAME assembly details for Stiga ZT 5132 T (2F1020821/S17) 2022 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	118830019/0	CAP	£9.00	Add to
003	118830344/0	FOOTREST KIT c/w DECAL [STIGA]	£97.03	Add to
005	118830259/0	HEAT SHIELD	£50.07	Add to
015	118830331/0	DECK LIFT PIVOT BUSH	£21.26	Add to
016	118830191/0	SEAT SPRING	£39.05	Add to
017	118830228/0	SEAT KICK PLATE	£28.59	Add to
018	118830281/0	R/H SUPPORT EXTENSION [YELLOW]	£22.35	Add to
019	118830282/0	L/H CROSS EXTENSION [YELLOW]	£42.53	Add to
021	118830283/0	L/H GUARD [YELLOW]	£15.00	Add to
022	118830223/0	RUBBER FLOOR MAT	£76.59	Add to
029	118830134/0	REAR CLUTCH GUARD [GREY]	£20.99	Add to
030	118830279/0	AIR INTAKE GRILL	£6.95	Add to
031	118830297/0	BUSH	£2.71	Add to
036	118830266/0	HITCH BRACKET [YELLOW]	£37.08	Add to
